Engine Control System (2GR-FE)
›
SFI System
›
Fuel Pump Control Circuit
›
Wiring Diagram
Fuel Pump Control Circuit: Wiring Diagram

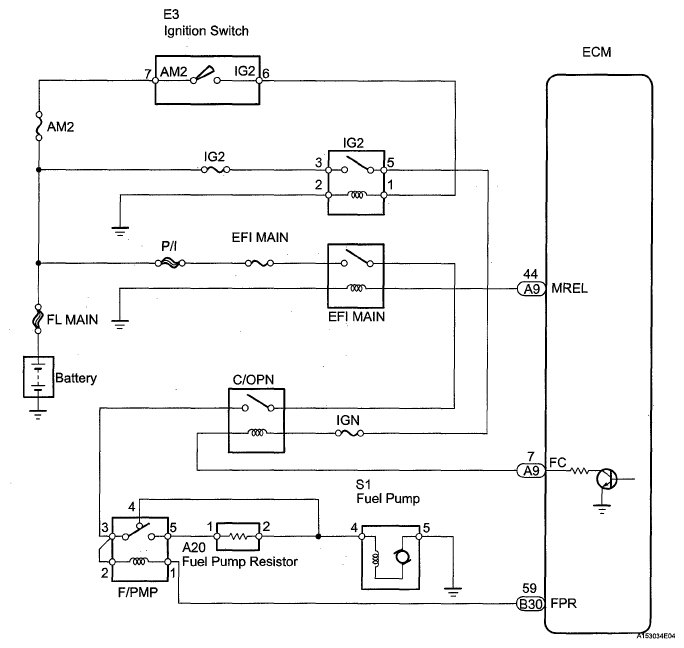

Fig 1: Fuel Pump Control Circuit - Wiring Diagram
