Driver Side Power Window Auto Up / Down Function does not Operate with Power Window Master Switch: Wiring Diagram

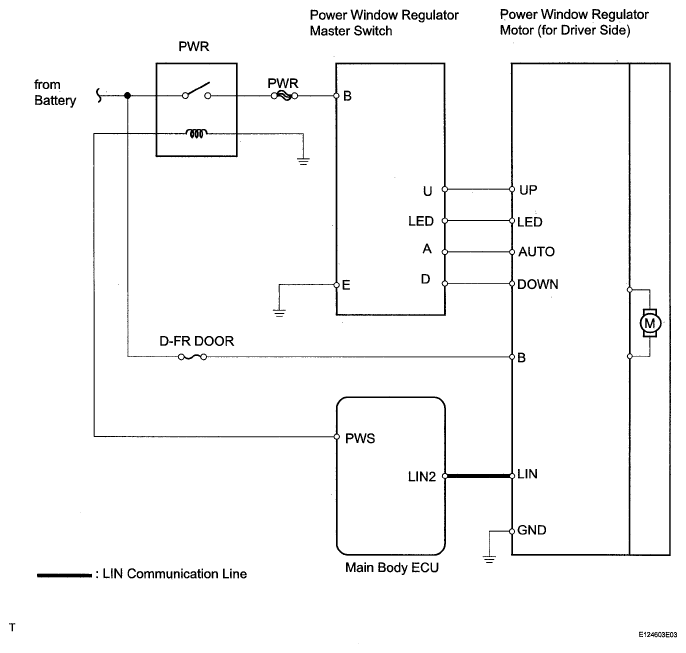

Fig 1: Identifying Driver Side Door Master Switch Malfunction - Wiring Diagram
G05586446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
