Driver Side Power Window does not Operate with Power Window Master Switch
›
Wiring Diagram
Driver Side Power Window does not Operate with Power Window Master Switch: Wiring Diagram

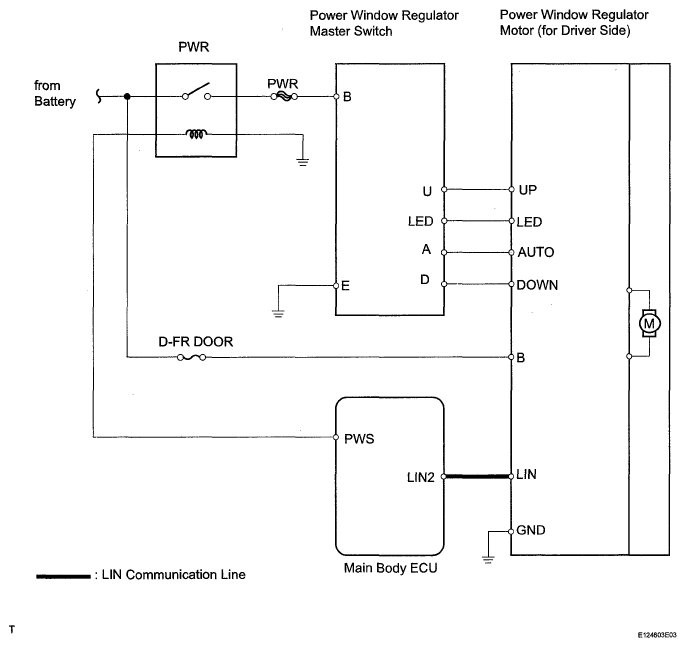

Fig 1: Identifying Power Window Master Switch - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
