Remote Up / Down Function does not Operate: Wiring Diagram

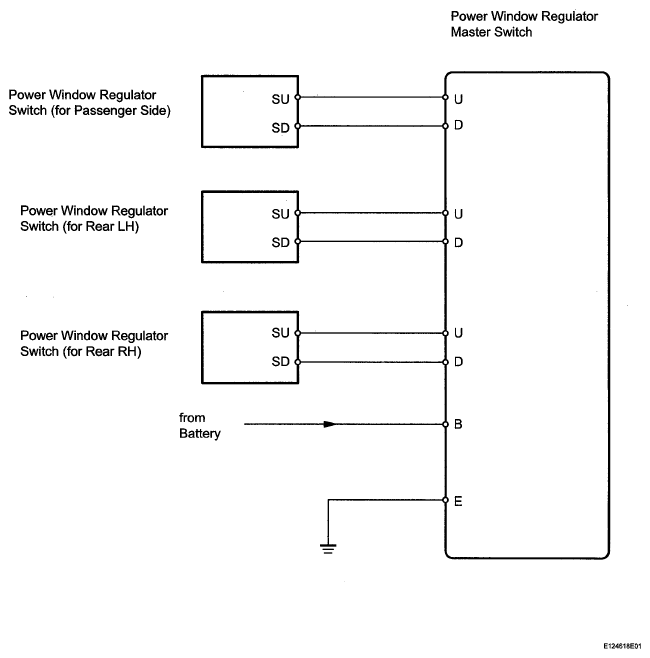

Fig 1: Identifying Power Window Regulator Master Switch - Wiring Diagram

G05586451

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
