Windshield Glass: Components

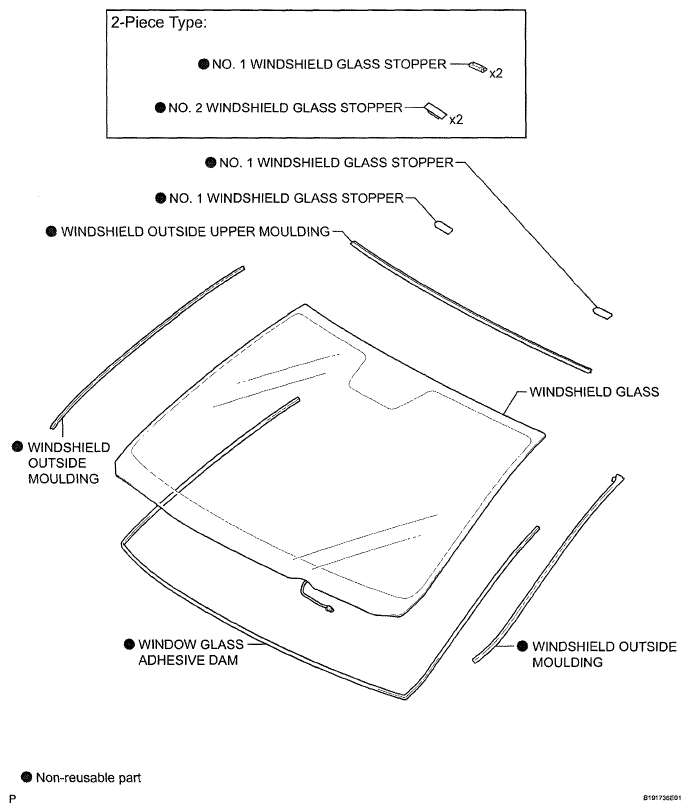

Fig 1: Identifying Windshield Glass Replacement Components With Torque Specifications (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

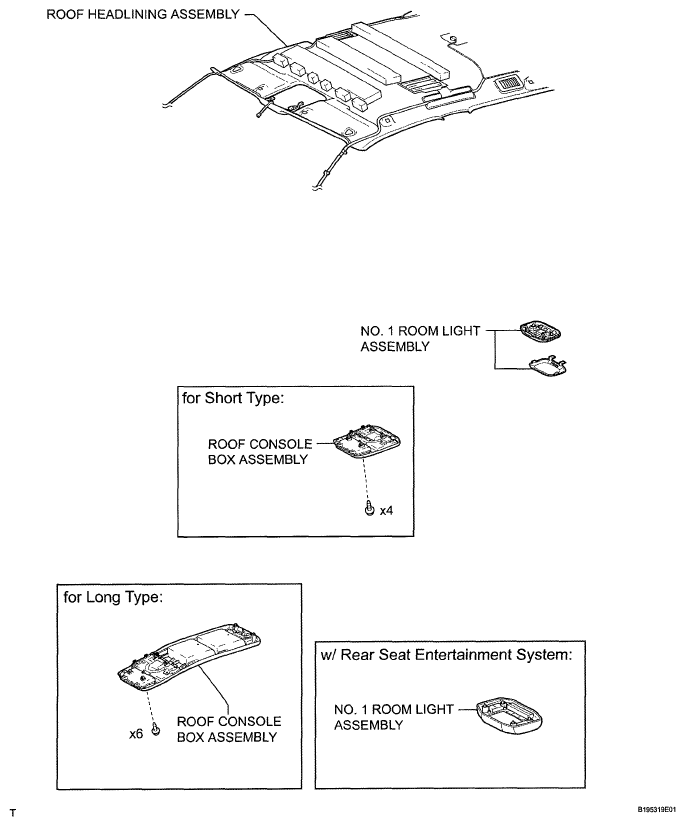

Fig 2: Identifying Windshield Glass Replacement Components With Torque Specifications (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

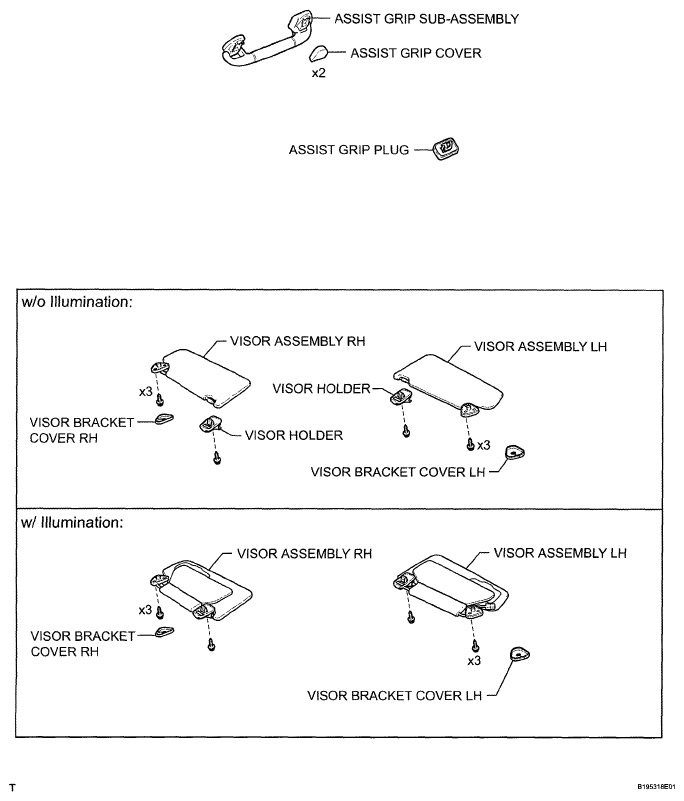

Fig 3: Identifying Windshield Glass Replacement Components With Torque Specifications (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

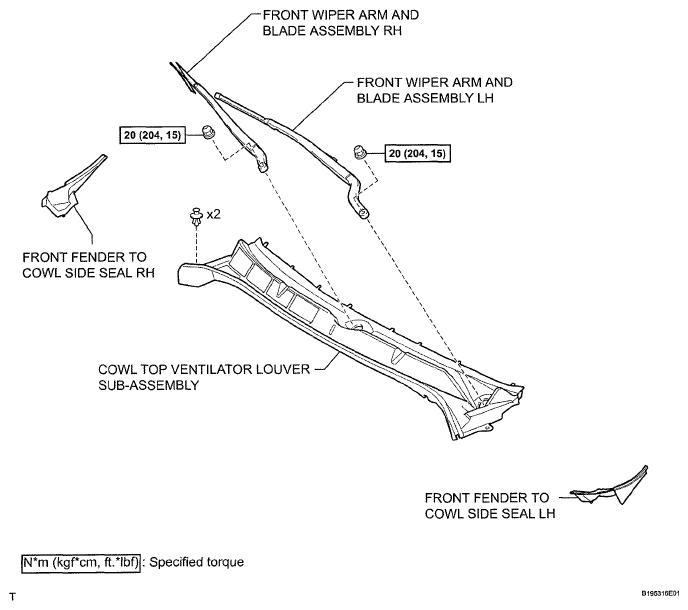

Fig 4: Identifying Windshield Glass Replacement Components With Torque Specifications (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

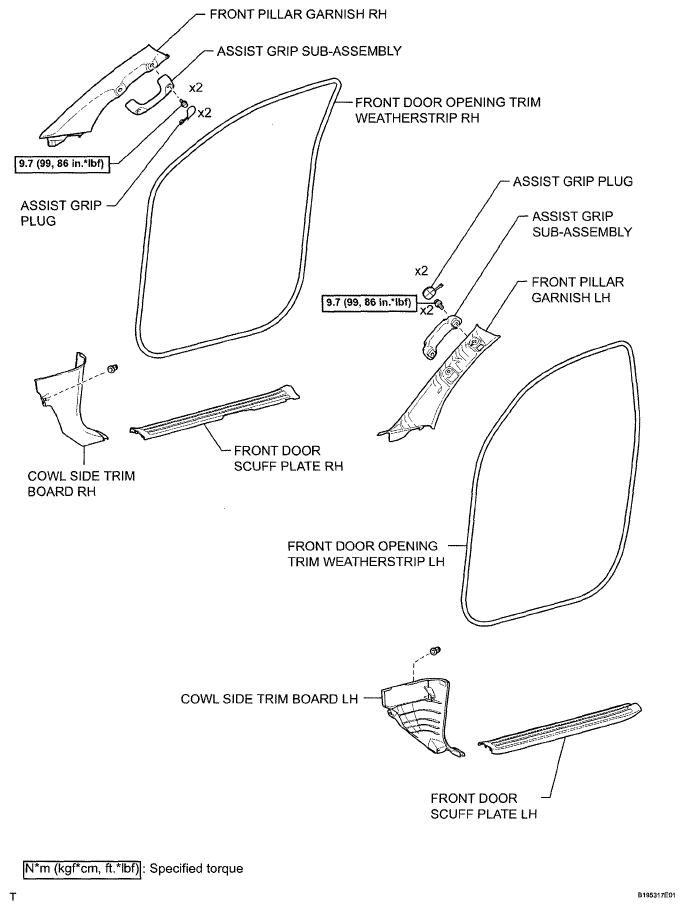

Fig 5: Identifying Windshield Glass Replacement Components With Torque Specifications (5 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

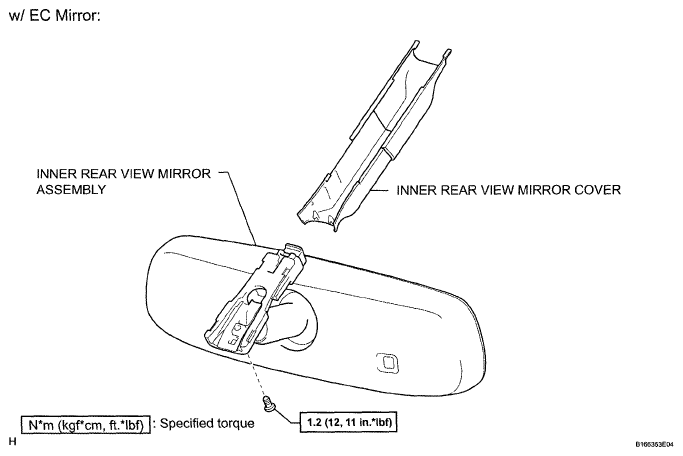

Fig 6: Identifying Windshield Glass Replacement Components With Torque Specifications (6 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Identifying Windshield Glass Replacement Components With Torque Specifications (7 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
