ABS without VSC: Notes

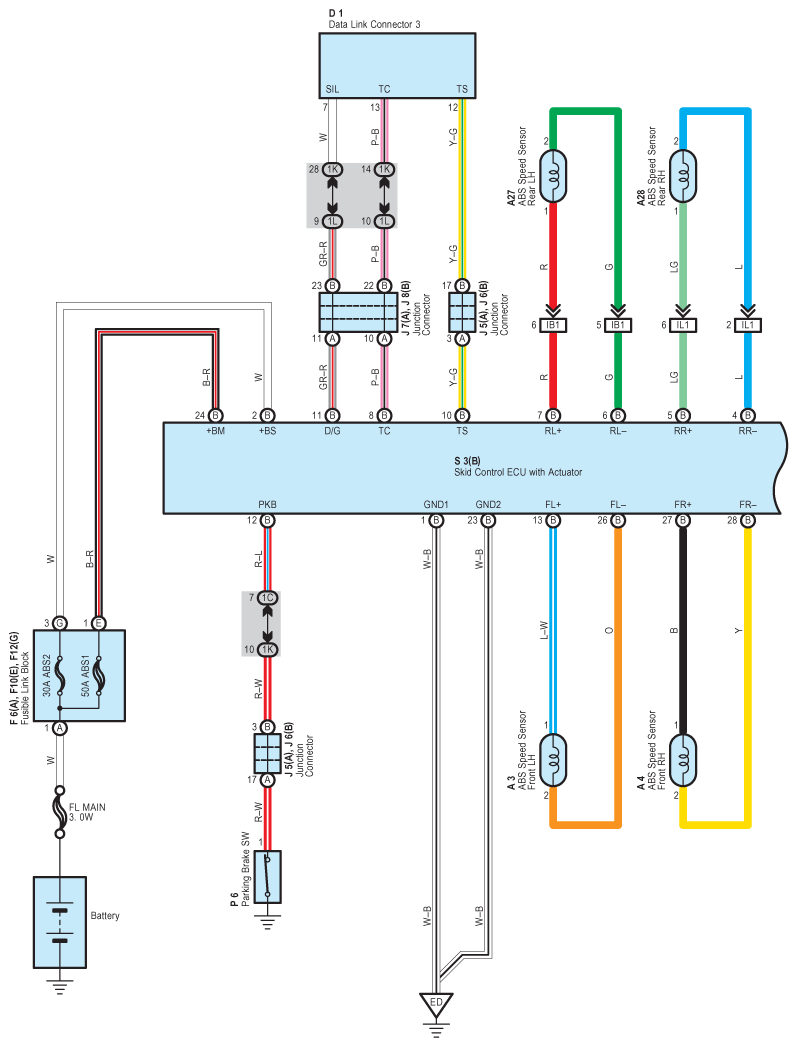

Fig 1: ABS Without VSC - Circuit Diagram (1 Of 3)

G07588460

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: ABS Without VSC - Circuit Diagram (2 Of 3)

G07588461

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

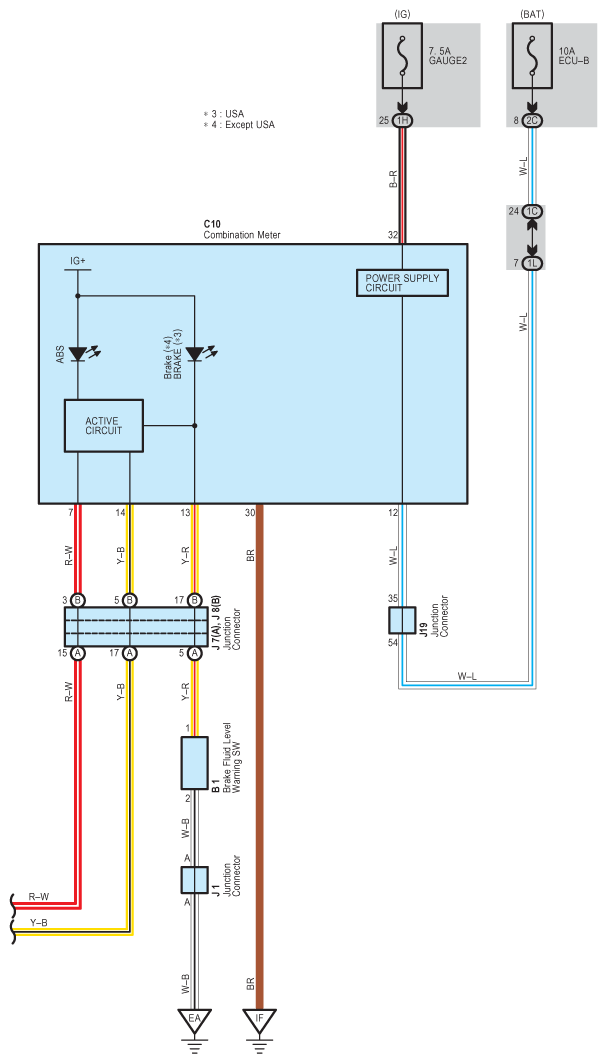

Fig 3: ABS Without VSC - Circuit Diagram (3 Of 3)

G07588462

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
