Cooling Fan: Notes

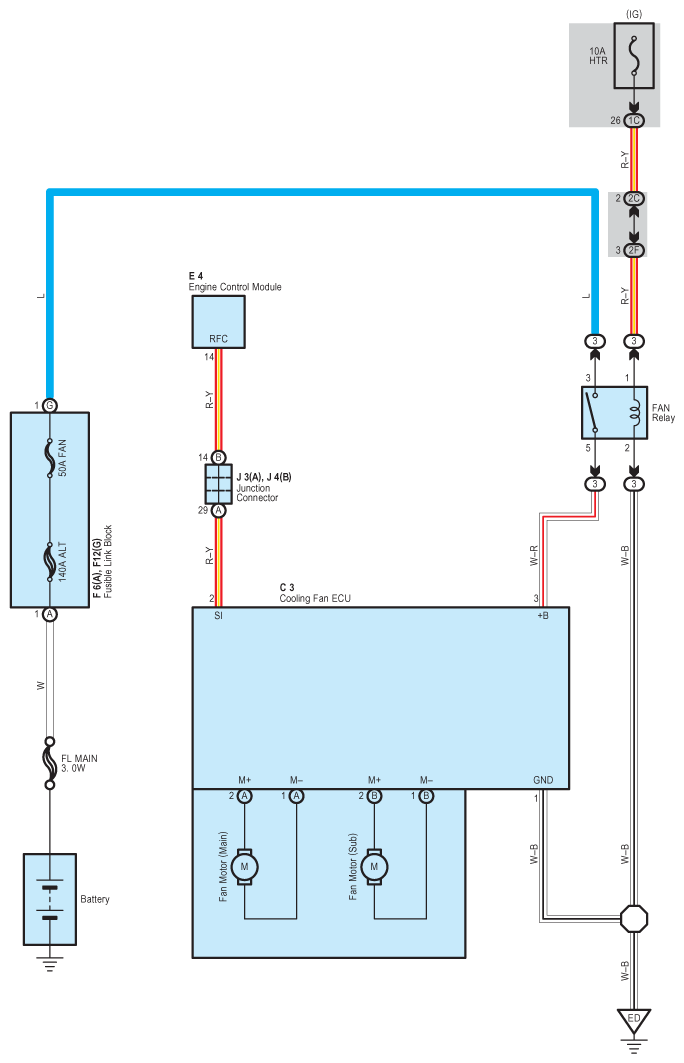

Fig 1: Cooling Fan - Circuit Diagram

G07588527

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
