Headlight Beam Level Control
›
Notes
Headlight Beam Level Control: Notes

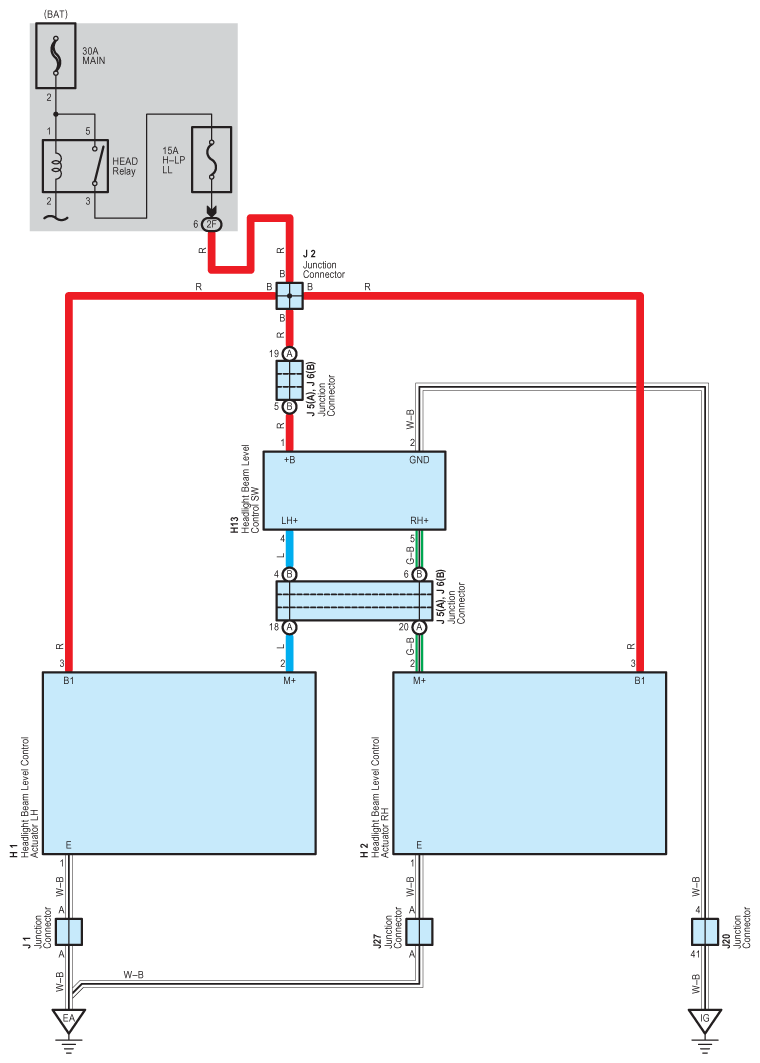

Fig 1: Headlight Beam Level Control - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
