Audio System with 6 Speaker: Notes

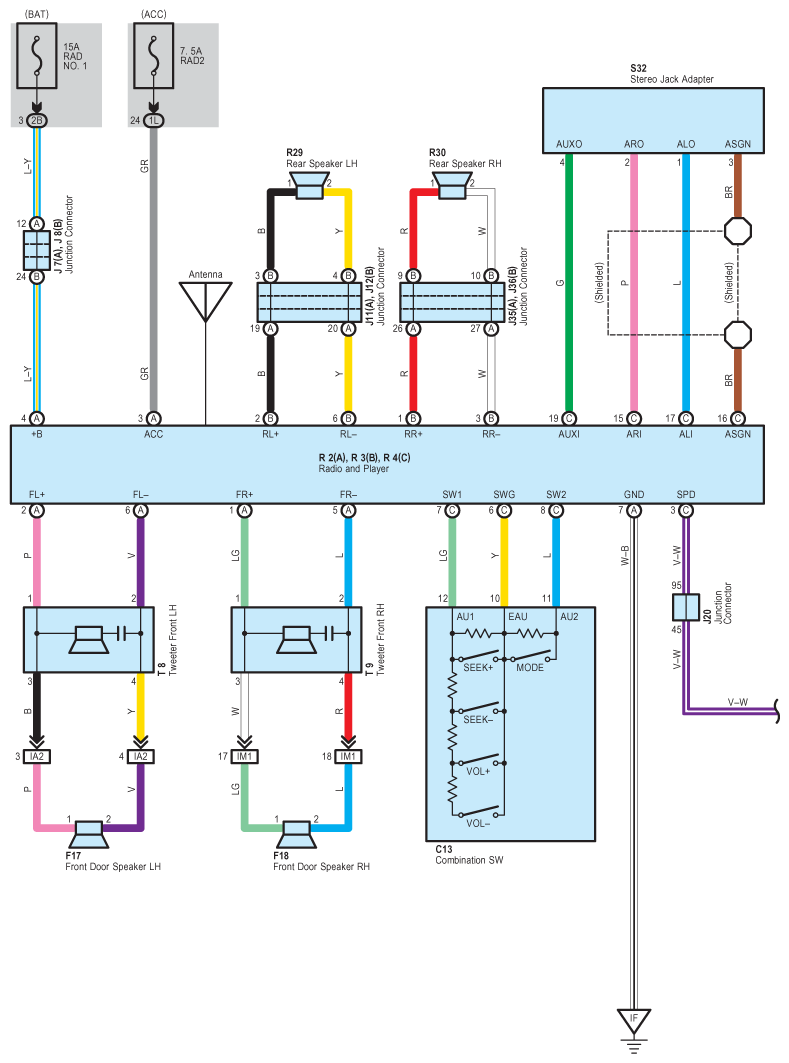

Fig 1: Audio System With 6 Speaker - Circuit Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Audio System With 6 Speaker - Circuit Diagram (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
