Automatic Glare-Resistant EC Mirror with Compass
›
Notes
Automatic Glare-Resistant EC Mirror with Compass: Notes

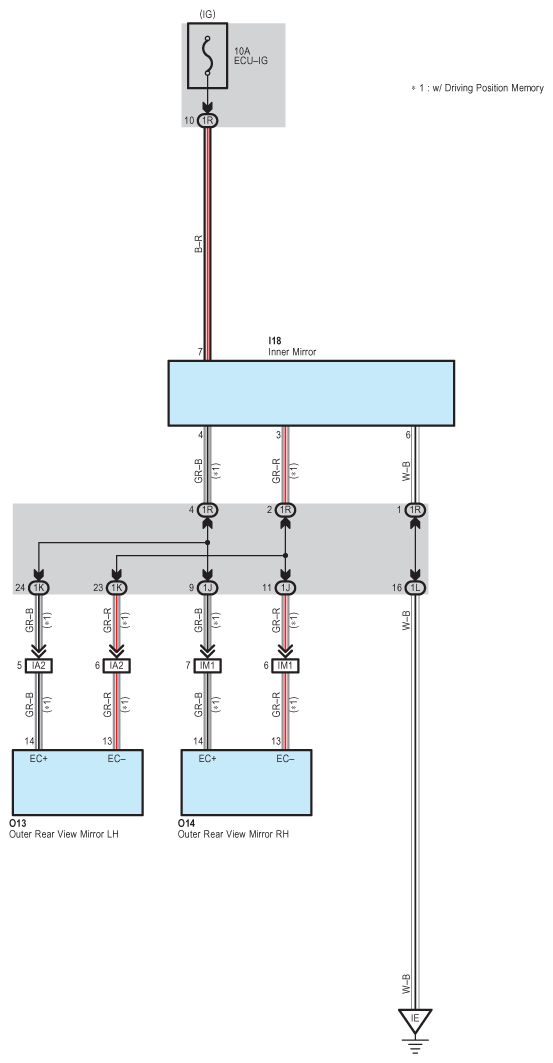

Fig 1: Automatic Glare-Resistant Ec Mirror With Compass - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
