Power Outlet (12V Front)
›
Notes
Power Outlet (12V Front): Notes

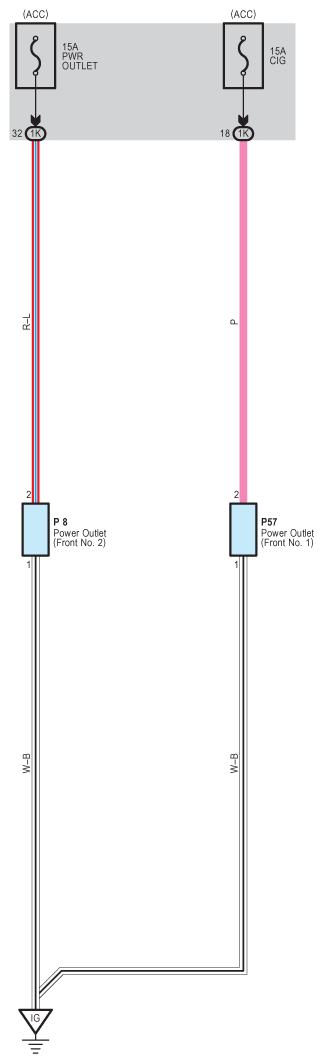

Fig 1: Power Outlet (12V Front) - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
