System Diagram

The starting system rotates the starter motor according to the signals from the ignition switch and PNP switch.

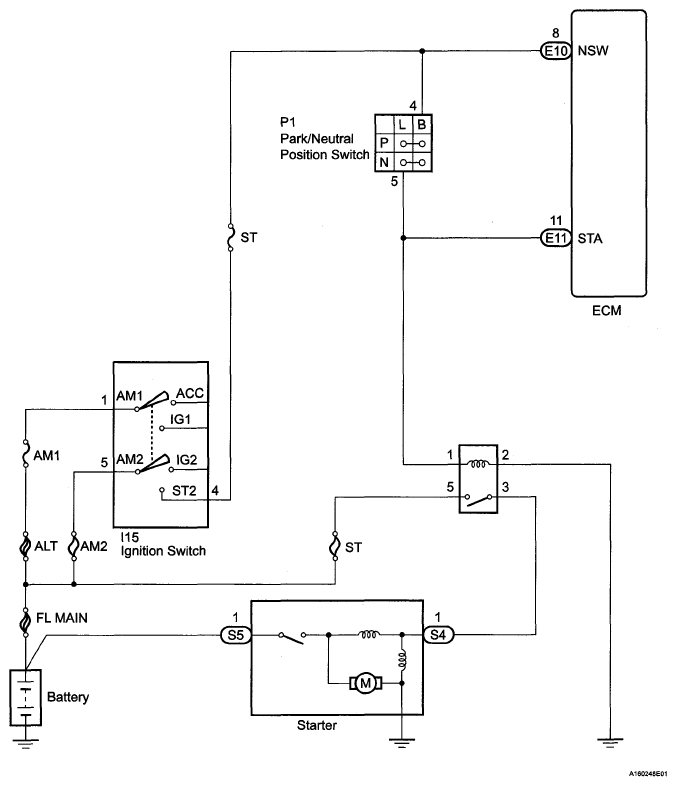

Fig 1: Starting System Diagram
G05140022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
