Tacoma Base, 4D Pickup, Standard
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control System (1GR-FE)
›
SFI System
›
ECM Power Source Circuit
›
Wiring Diagram
ECM Power Source Circuit: Wiring Diagram

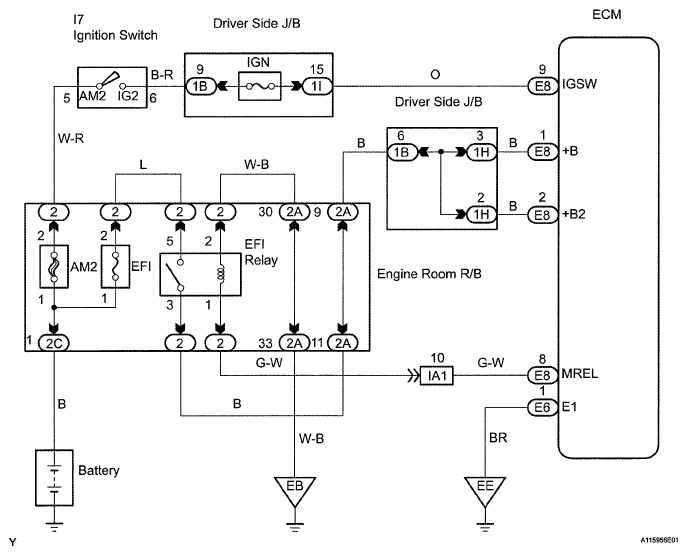

Fig 1: Driver Side J/B And ECM - Wiring Diagram
