Cruise Control System (2TR-FE): Notes

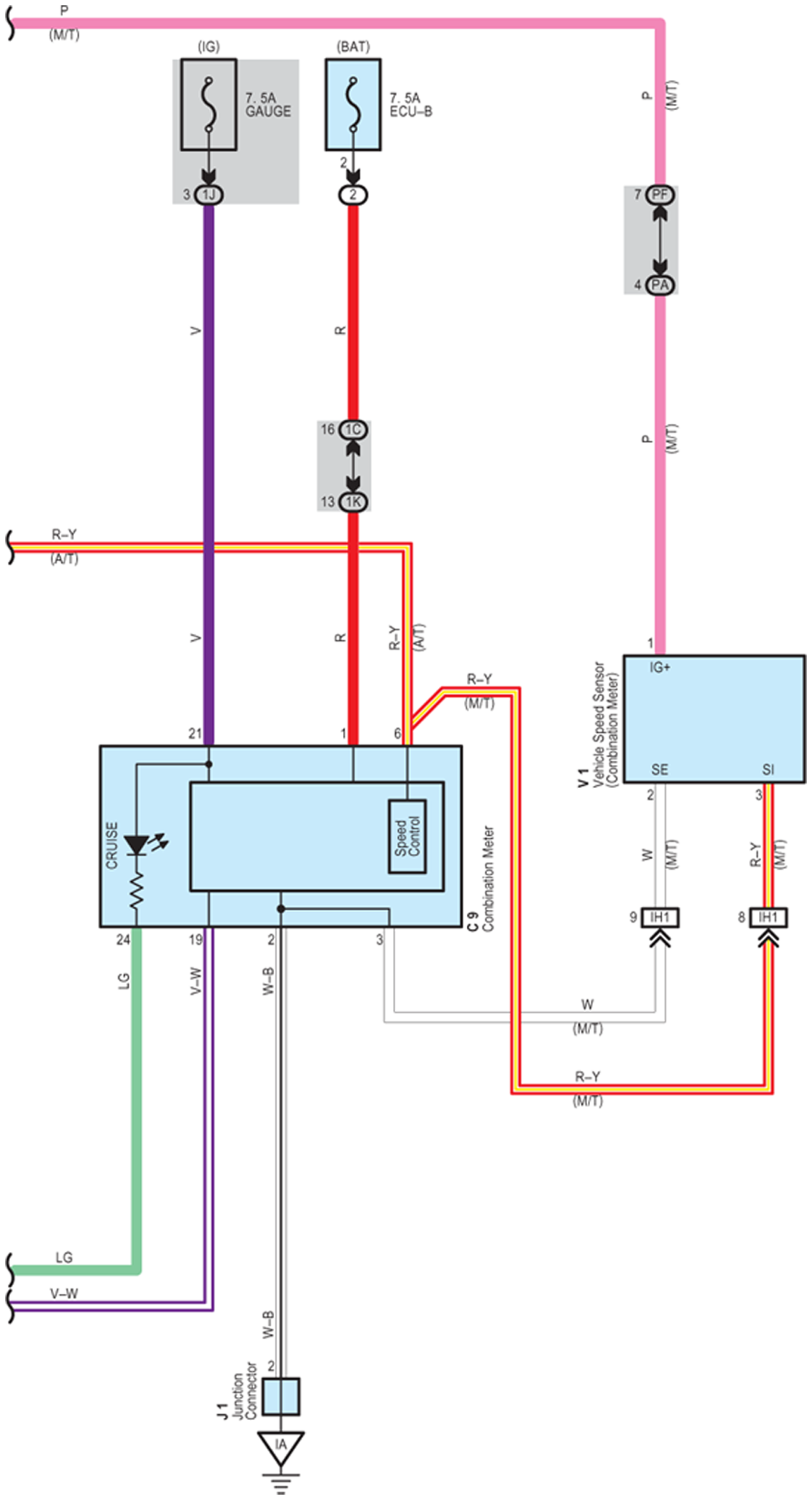

Fig 1: Cruise Control (2TR-FE) - Circuit Diagram (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

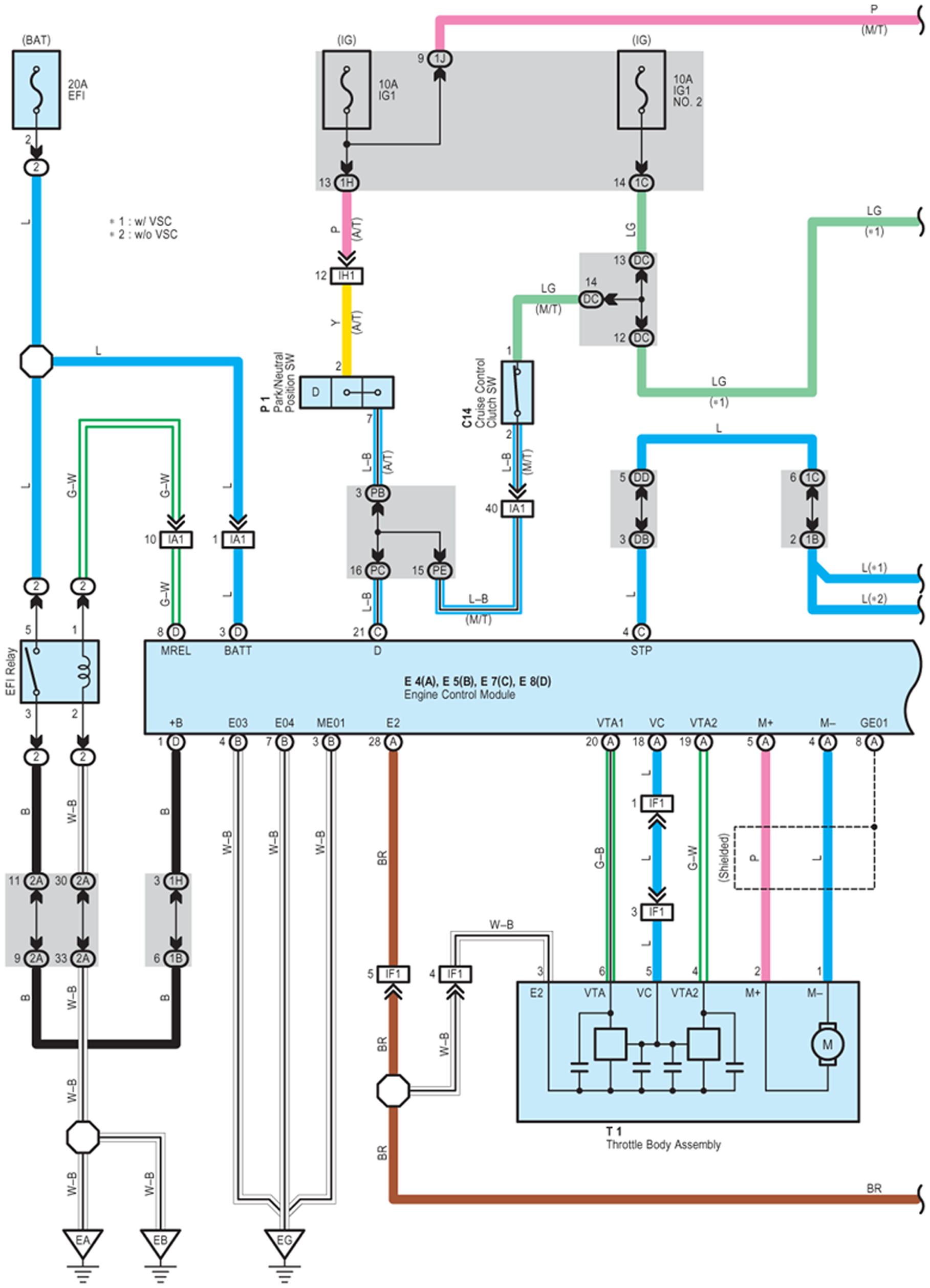

Fig 2: Cruise Control (2TR-FE) - Circuit Diagram (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

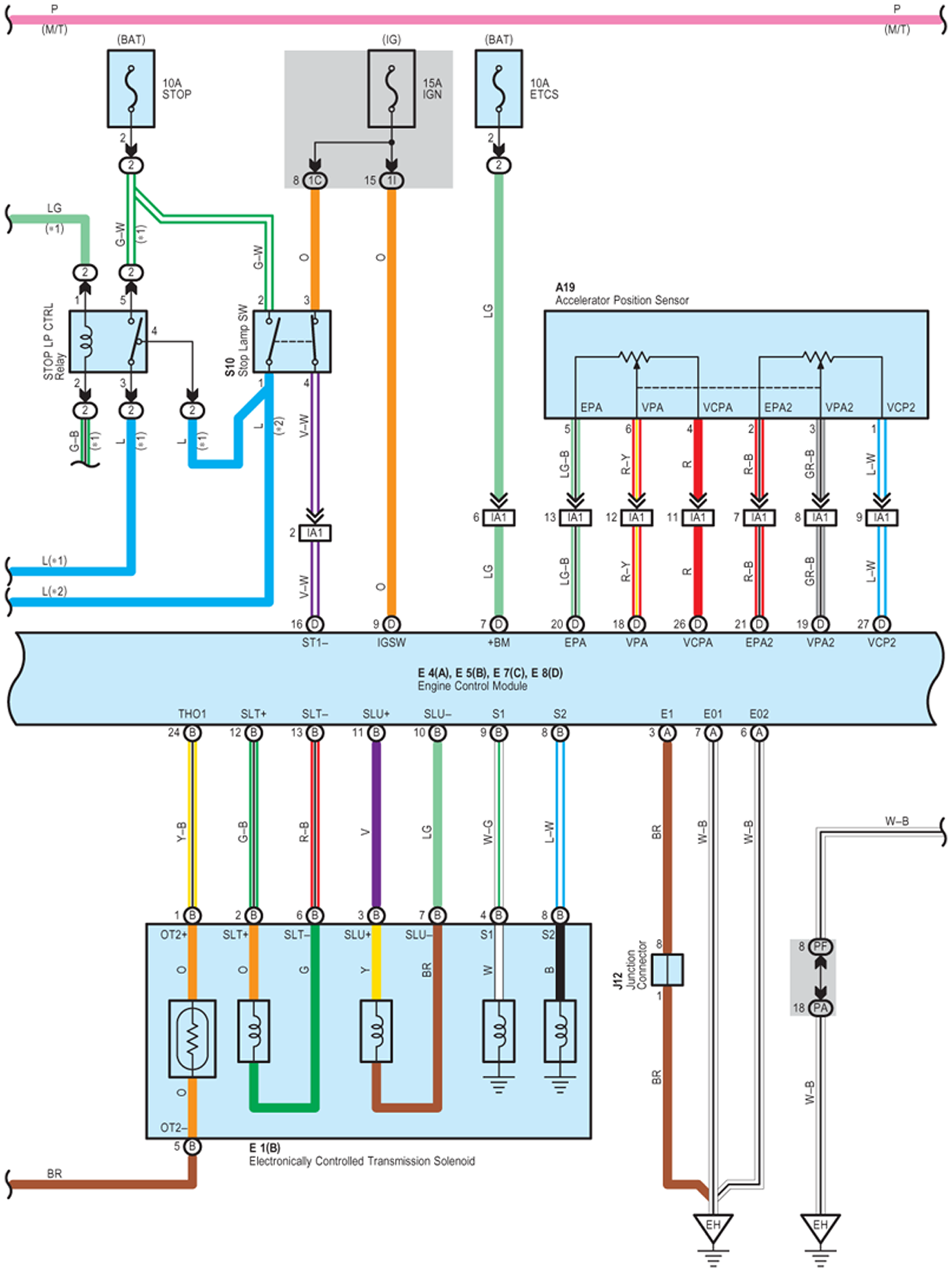

Fig 3: Cruise Control (2TR-FE) - Circuit Diagram (3 Of 4)

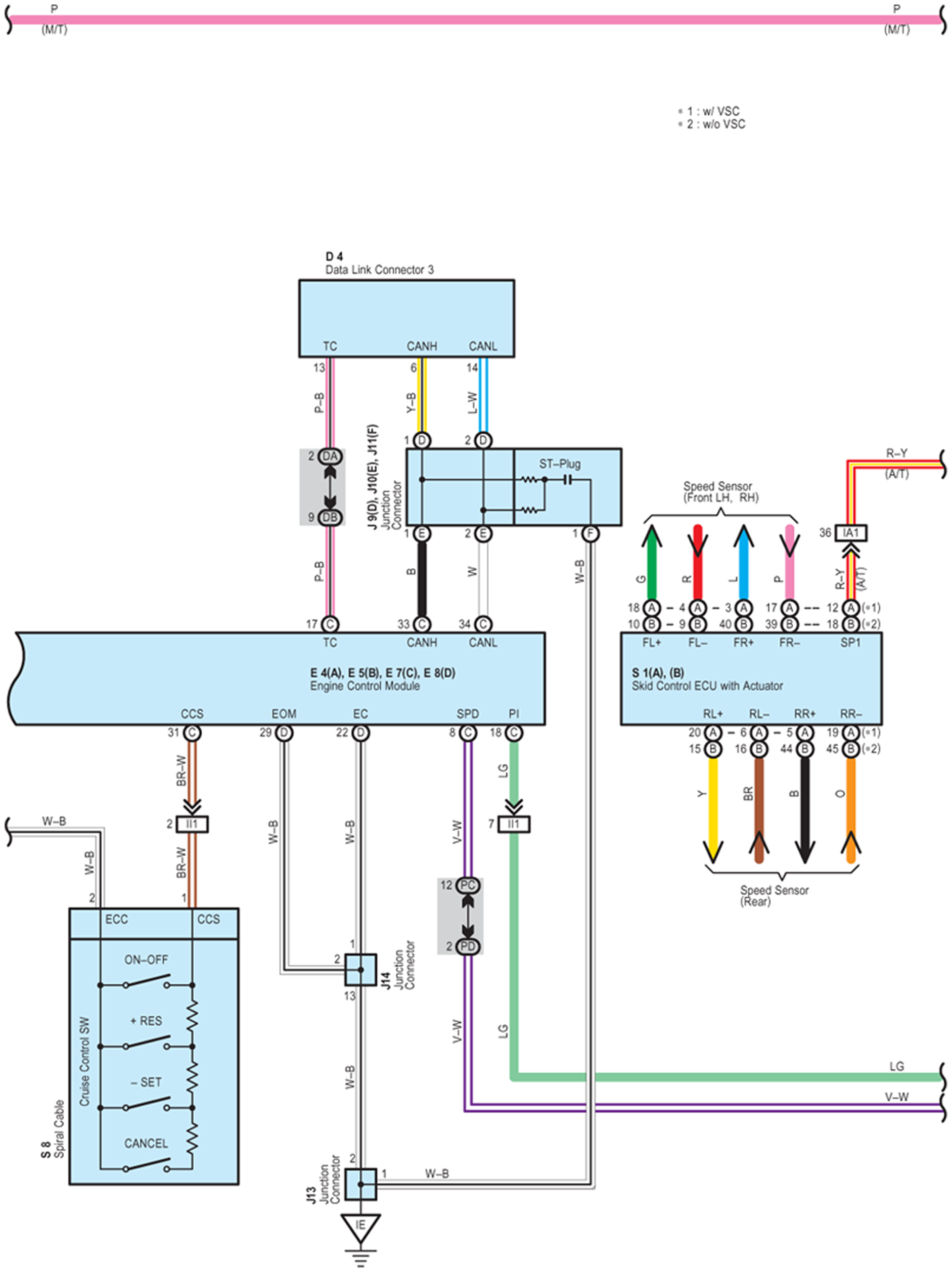

Fig 4: Cruise Control (2TR-FE) - Circuit Diagram (4 Of 4)
