Engine Control System (2TR-FE): Notes

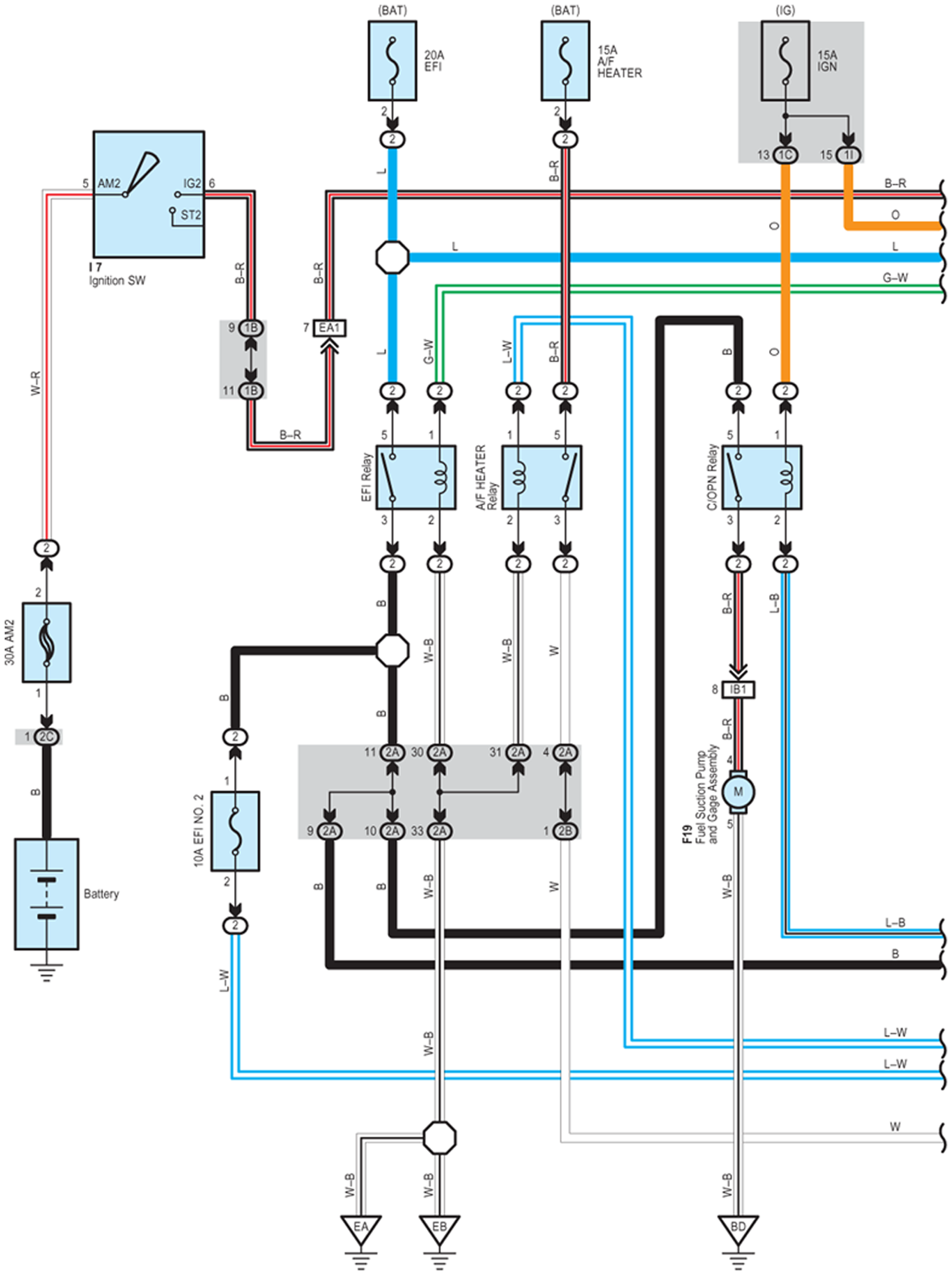

Fig 1: Engine Control (2TR-FE) - Circuit Diagram (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

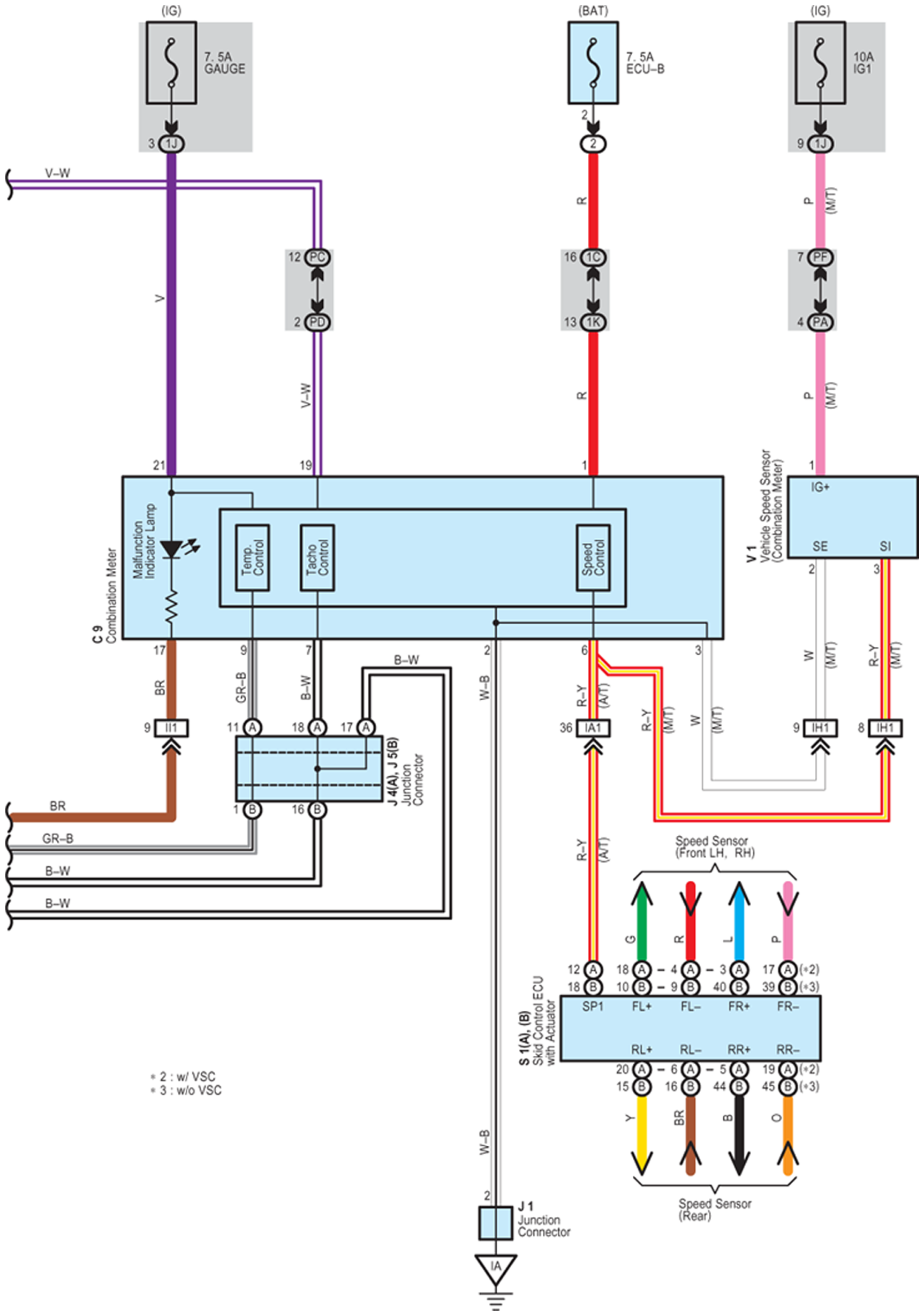

Fig 2: Engine Control (2TR-FE) - Circuit Diagram (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

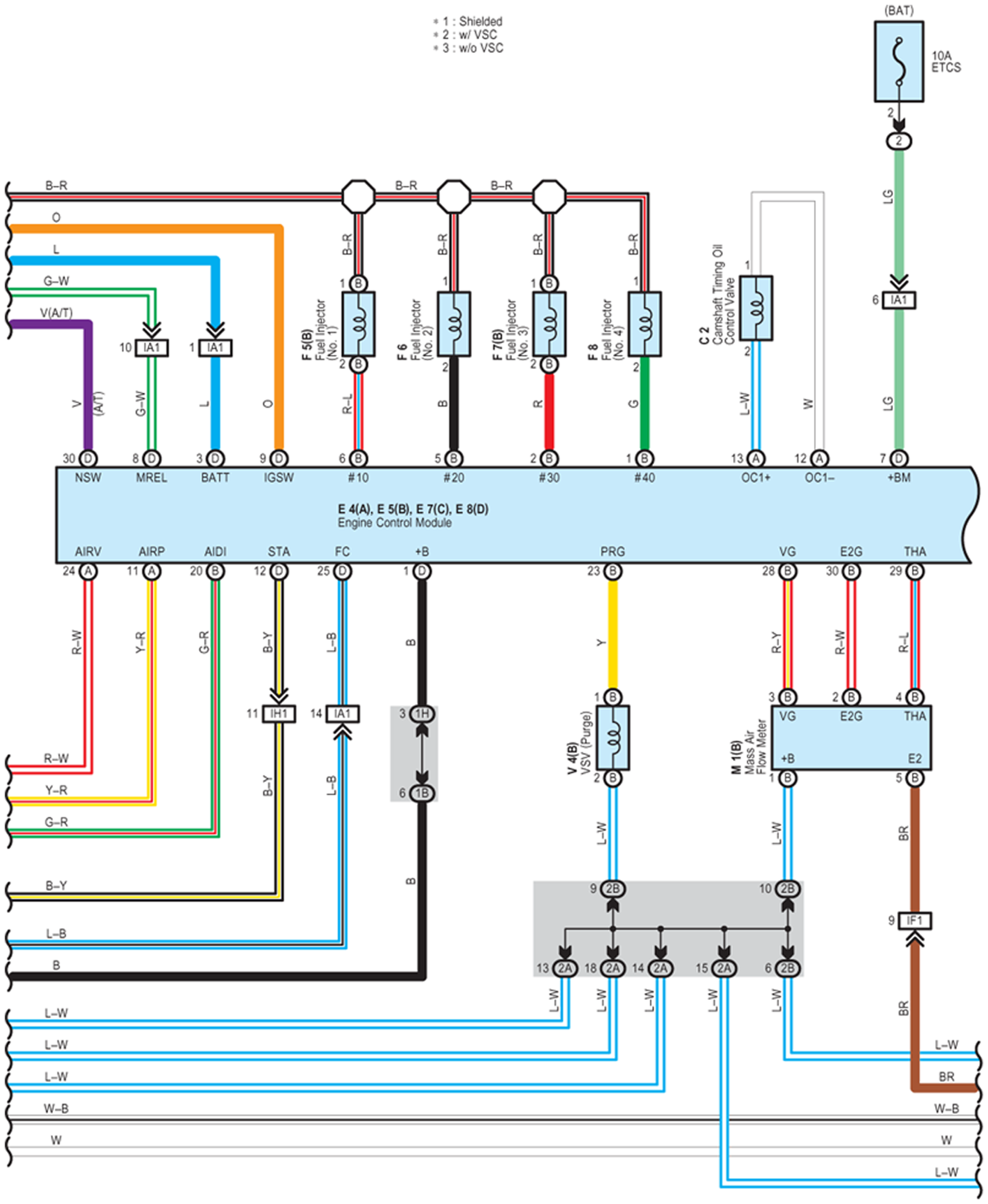

Fig 3: Engine Control (2TR-FE) - Circuit Diagram (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

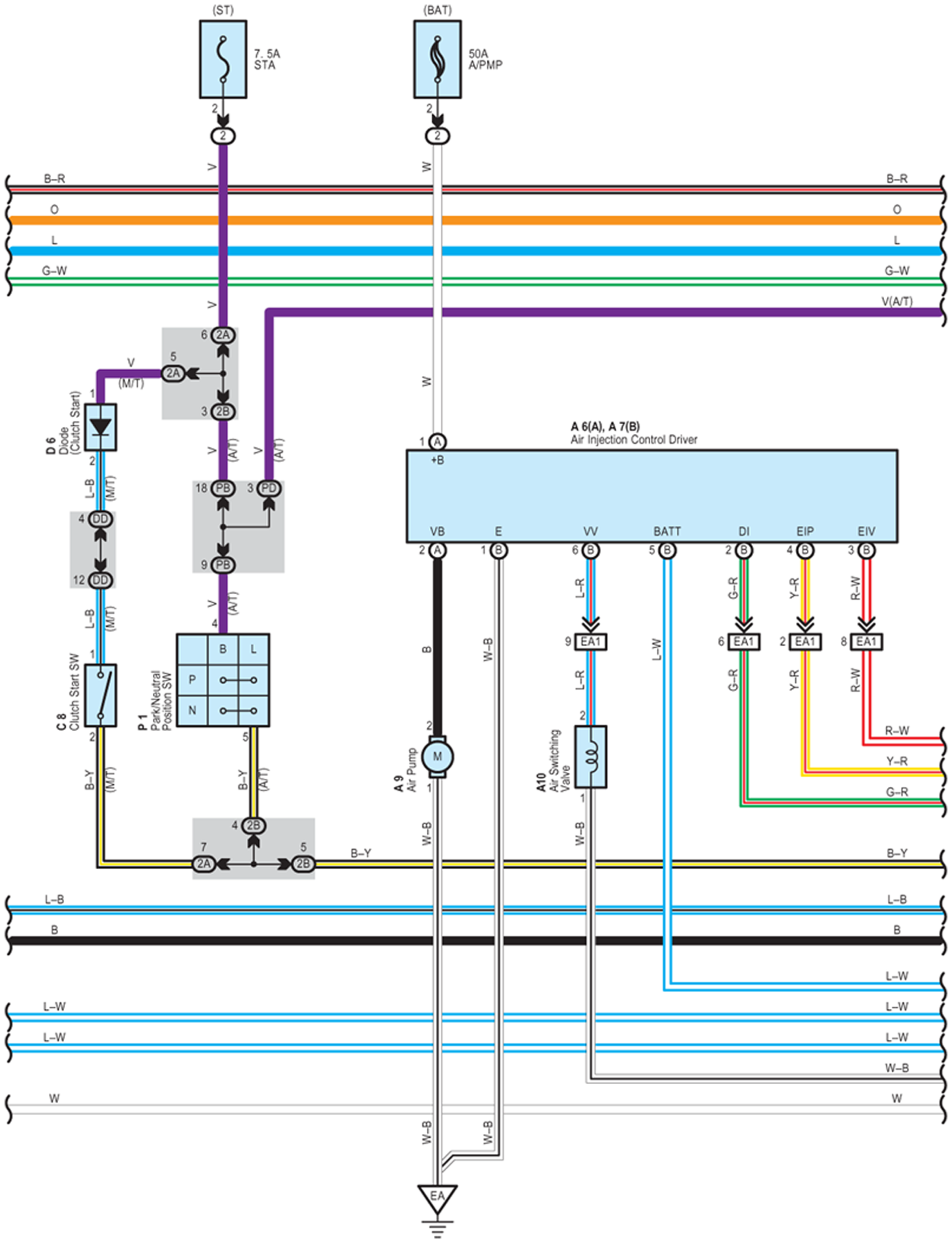

Fig 4: Engine Control (2TR-FE) - Circuit Diagram (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

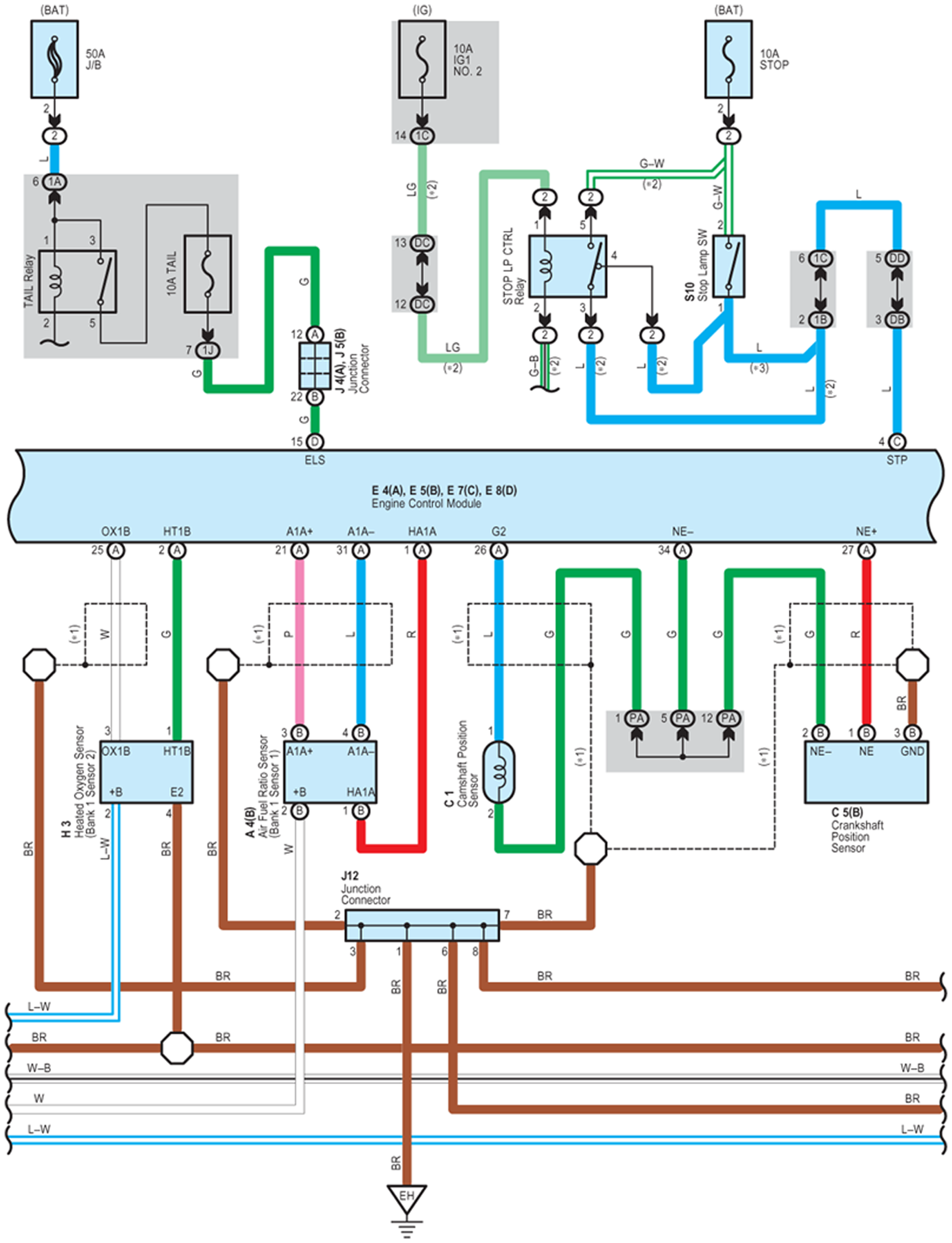

Fig 5: Engine Control (2TR-FE) - Circuit Diagram (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

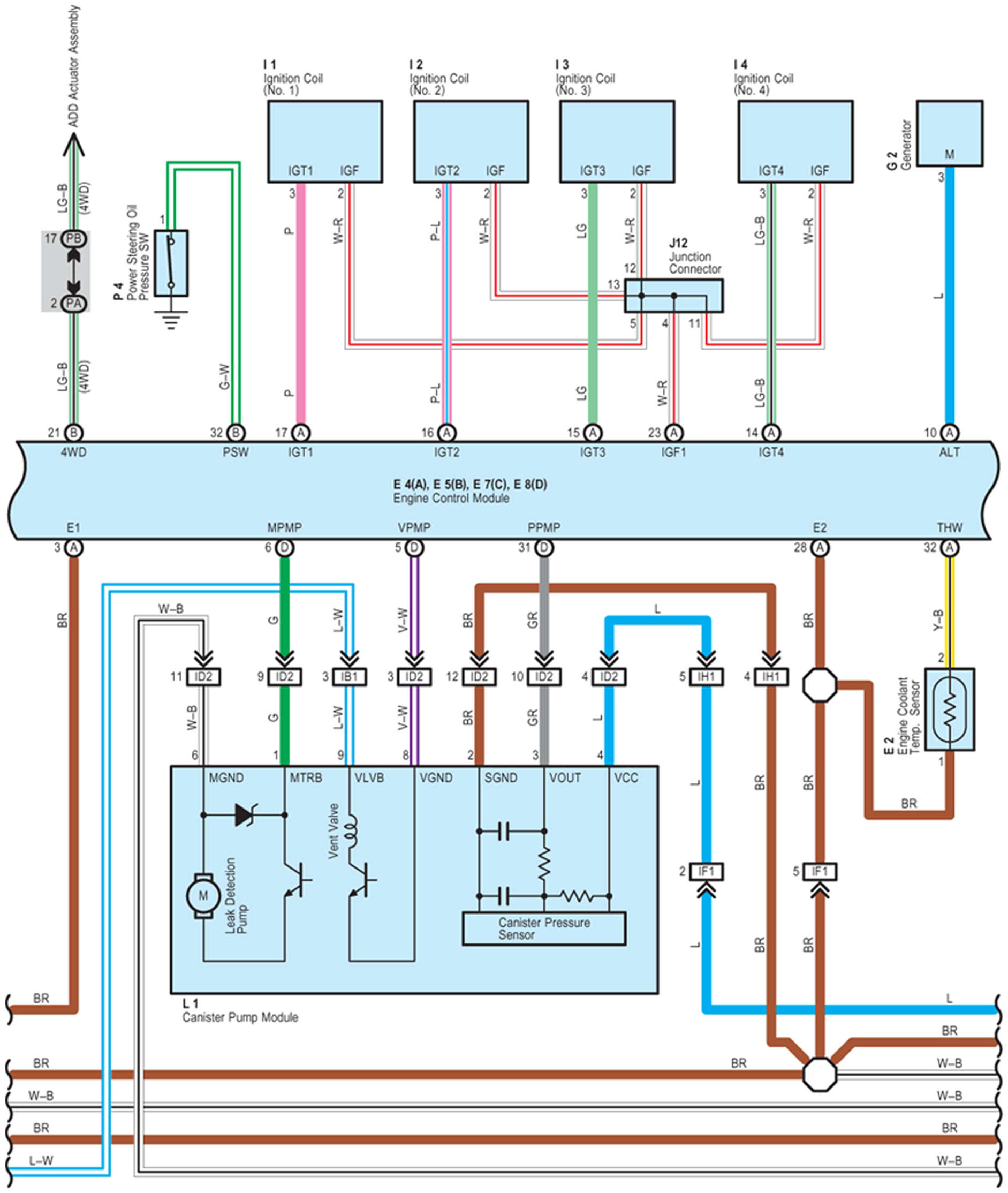

Fig 6: Engine Control (2TR-FE) - Circuit Diagram (6 Of 8)

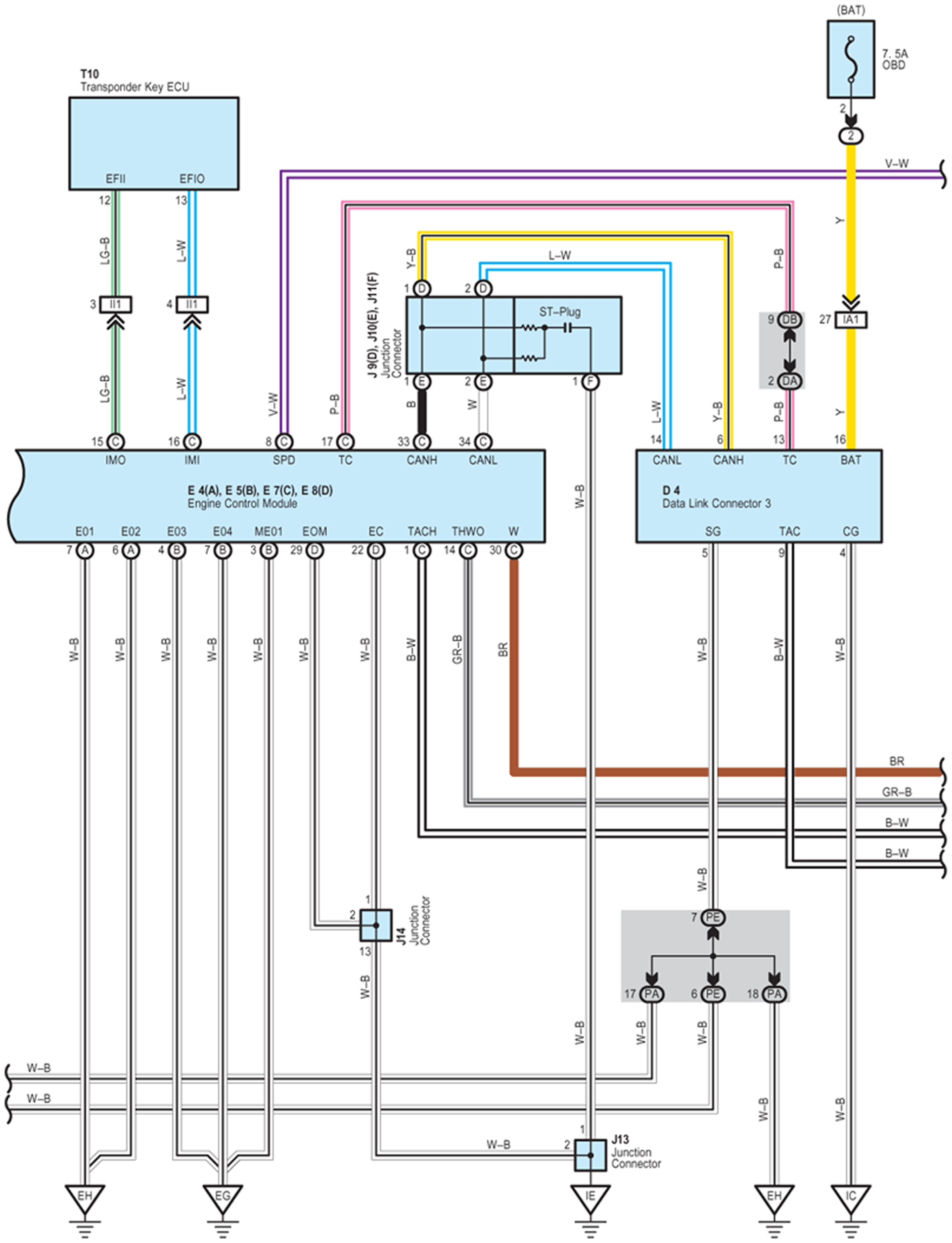

Fig 7: Engine Control (2TR-FE) - Circuit Diagram (7 Of 8)

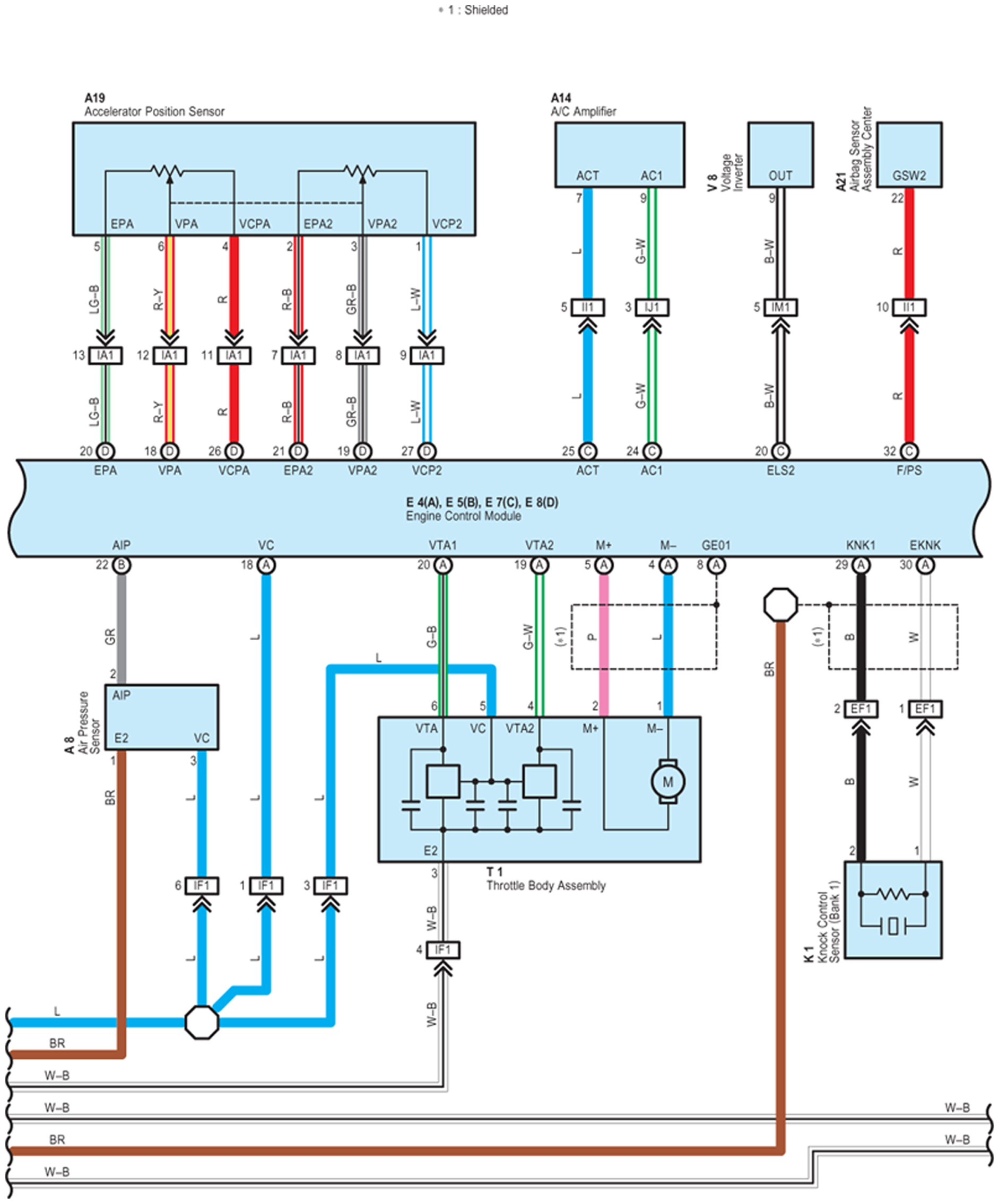

Fig 8: Engine Control (2TR-FE) - Circuit Diagram (8 Of 8)
