Engine Immobiliser System (2TR-FE): Notes

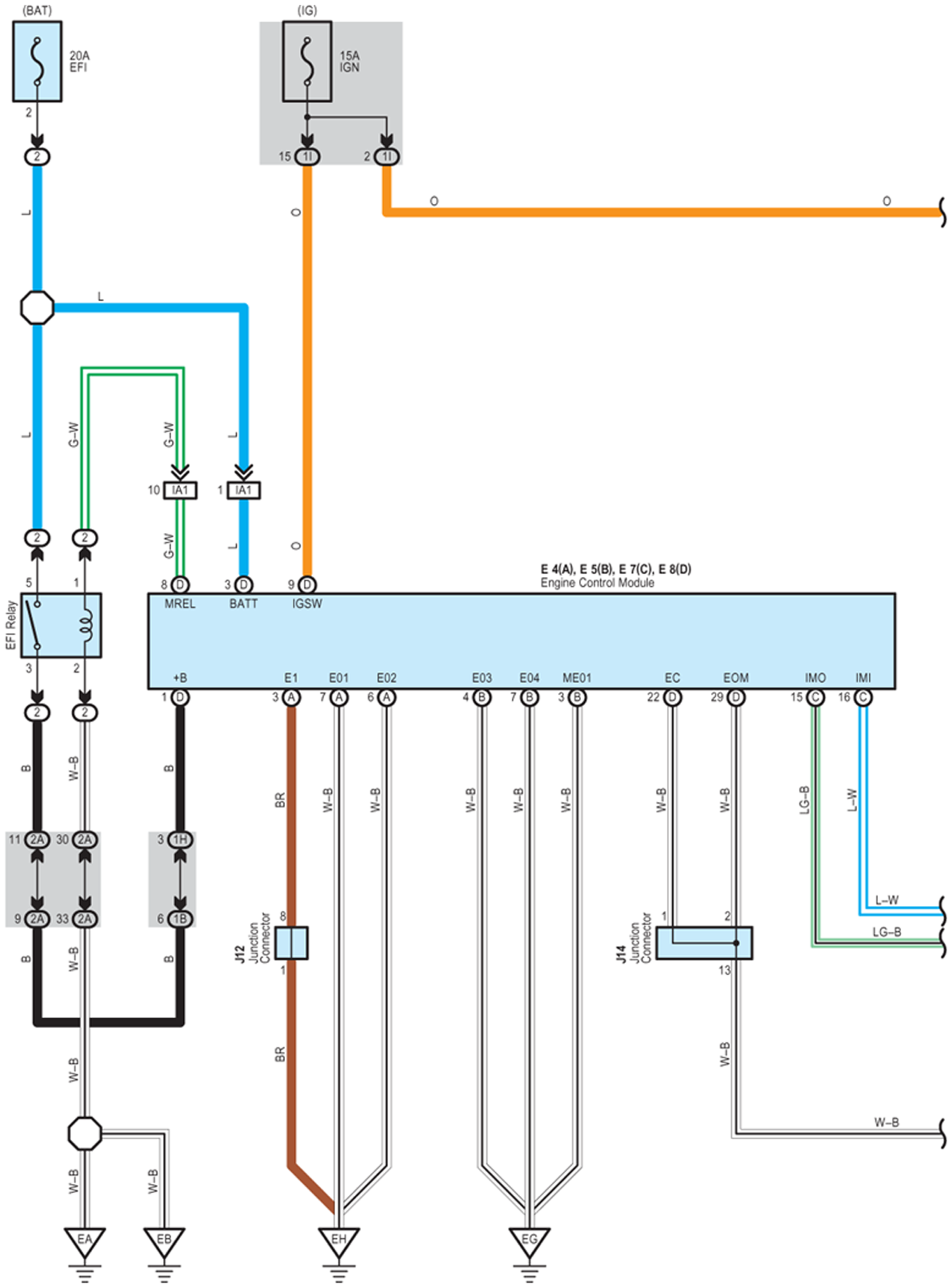

Fig 1: Engine Immobiliser System (2TR-FE) - Circuit Diagram (1 Of 2)
G07594812Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

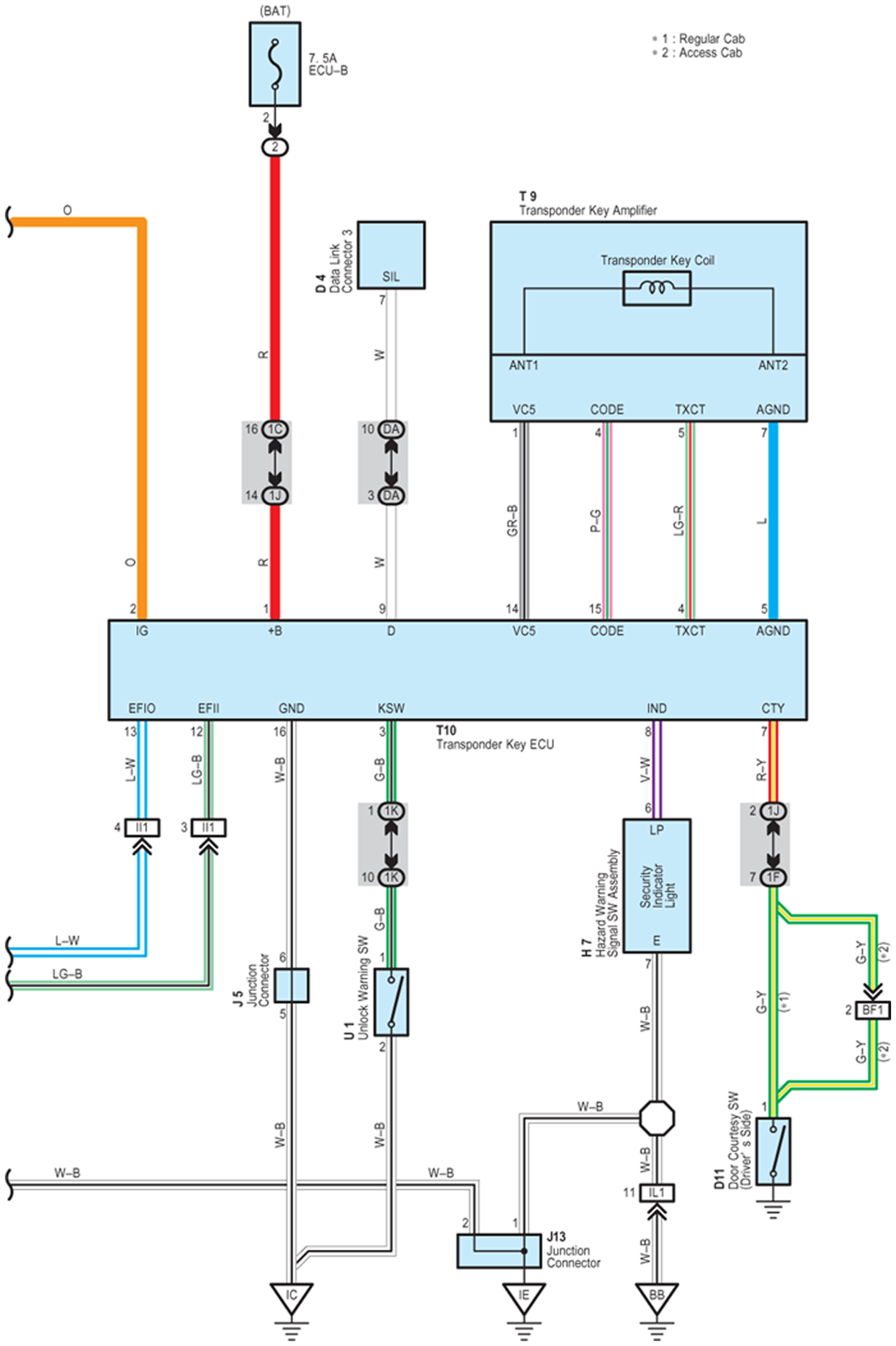

Fig 2: Engine Immobiliser System (2TR-FE) - Circuit Diagram (2 Of 2)
G07594813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
