Key Reminder System
›
Notes
Key Reminder System: Notes

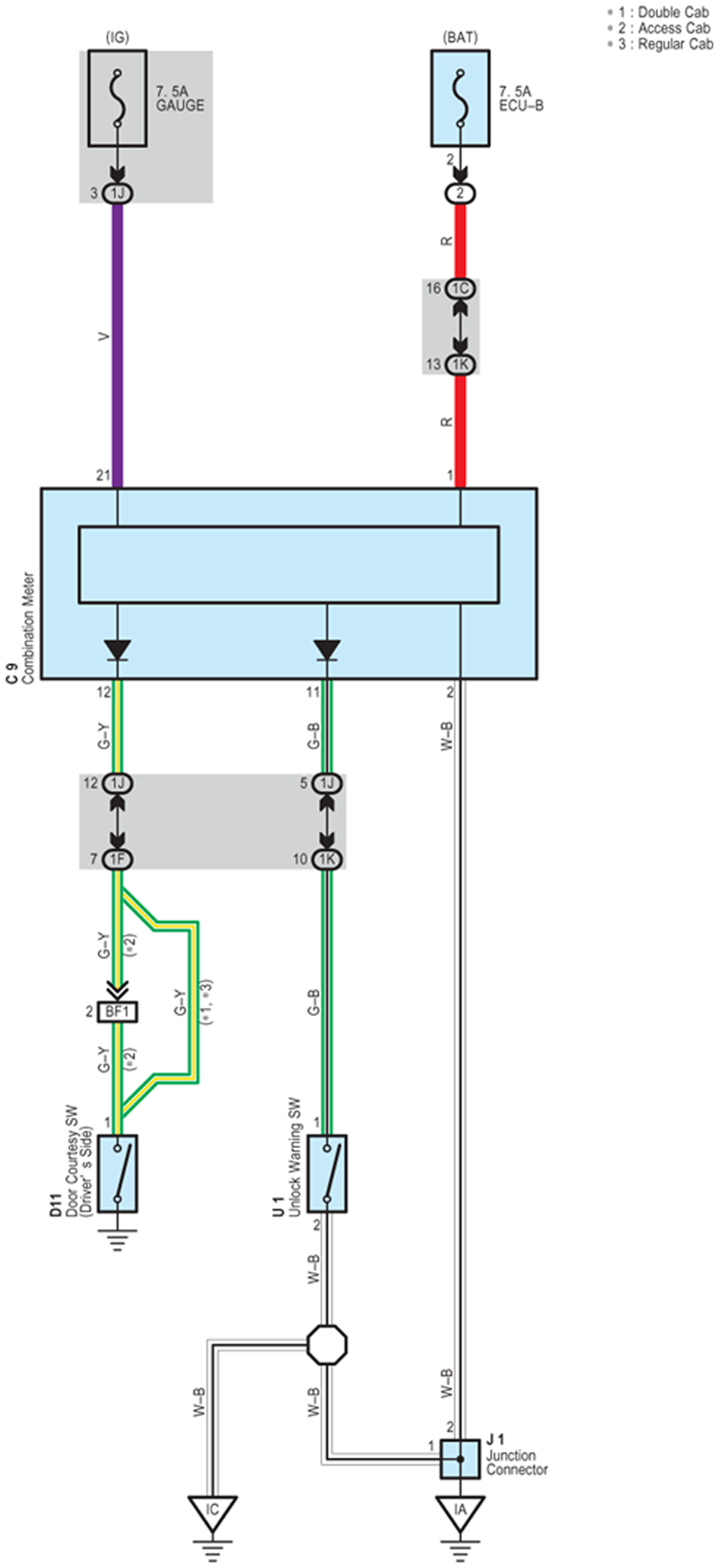

Fig 1: Key Reminder - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
