Inspection Procedure

HINT:

Read freeze frame data using the Techstream. Freeze frame data record the engine condition when malfunctions are detected. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data, from the time the malfunction occurred.

1. CHECK FUSE (ETCS FUSE)
   1. Remove the ETCS fuse from the engine room R/B.

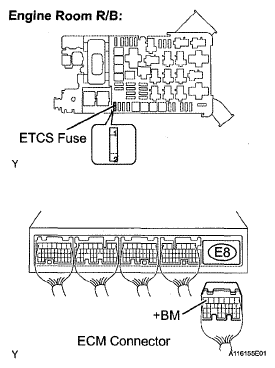

   Fig 1: Identifying ETCS Fuse Of Engine Room R/B
   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Check the ETCS fuse resistance.

      Standard resistance: Below 1 Ω

   3. Reinstall the ETCS fuse.

   NG: CHECK FOR SHORT IN ALL HARNESS AND COMPONENTS CONNECTED TO FUSE

   OK: Go to next step.

2. INSPECT ECM (+BM VOLTAGE)
   1. Measure the voltage between the terminals of the E8 and E6 ECM connectors.

      Standard Voltage

      TESTER CONNECTION SPECIFIED CONDITION



      Tester Connections	Specified Conditions
      +BM (E8-7) - E1 (E6-1)	9 to 14 V

      Fig 2: Identifying E8 And E6 ECM Connectors

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK: CHECK FOR INTERMITTENT PROBLEMS

   NG: Go to next step.

3. CHECK HARNESS AND CONNECTOR (ECM - ETCS FUSE, ETCS FUSE - BATTERY)
   1. Check the harness and connector between the ETCS fuse and ECM.
      1. Remove the ETCS fuse from the engine room R/B.
      Fig 3: Identifying ETCS Fuse Of Engine Room R/B
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disconnect the E8 ECM connector.
      3. Check the resistance.

         Standard Resistance (Check for open)

         TESTER CONNECTION SPECIFIED CONDITION



         Tester Connections	Specified Conditions
         ETCS fuse (2) - +BM (E8-7)	Below 1 Ω

         Standard Resistance (Check for short)

         TESTER CONNECTION SPECIFIED CONDITION



         Tester Connections	Specified Conditions
         ETCS fuse (2) or +BM (E8-7) - Body ground	10 kΩ or higher

      4. Reinstall the ETCS fuse.
      5. Reconnect the ECM connector.
   2. Check the harness and connector between the ETCS fuse and positive battery cable.
      1. Remove the ETCS fuse from the engine room R/B.
      2. Disconnect the positive battery cable.
      3. Check the resistance.

         Standard Resistance (Check for open)

         TESTER CONNECTION SPECIFIED CONDITION



         Tester Connections	Specified Conditions
         Positive battery cable - ETCS fuse (1)	Below 1 Ω

         Standard Resistance (Check for short)

         TESTER CONNECTION SPECIFIED CONDITION



         Tester Connections	Specified Conditions
         Positive battery cable or ETCS fuse (1) - Body ground	10 kΩ or higher

      4. Reinstall the ETCS fuse.
      5. Reconnect the positive battery cable.

   NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

   OK: REPLACE ECM
