Engine Control System (3UR-FE) - System Testing, On-Vehicle Inspection, Removal, Inspection & Installation
›
Accelerator Pedal
›
Components
Accelerator Pedal: Components

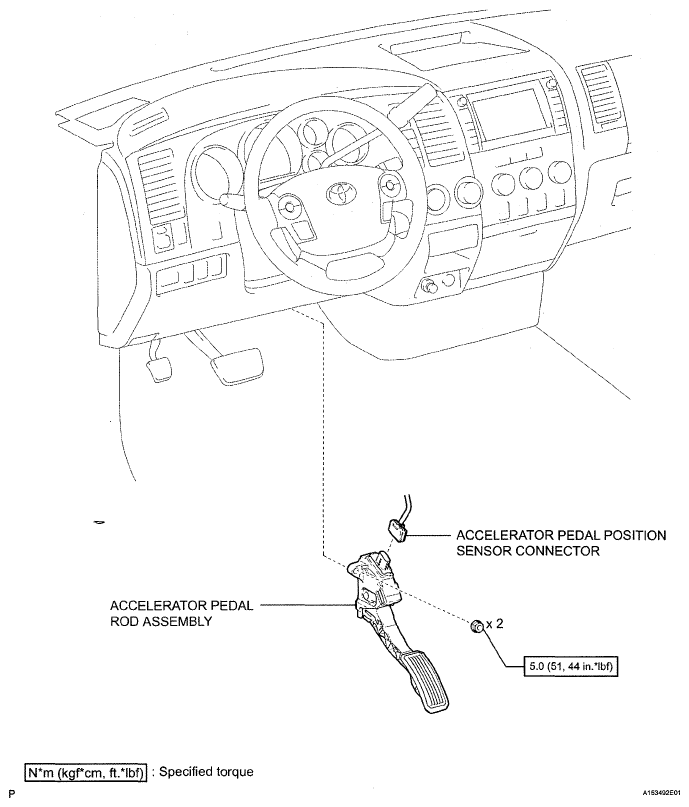

Fig 1: Identifying Accelerator Pedal Replacement Components With Torque Specification
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
