Home › Toyota › 2008 › Tundra Base, 5.7 V, RWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System (3UR-FE) - System Testing, On-Vehicle Inspection, Removal, Inspection & Installation › Air Fuel Ratio Sensor › Components

Air Fuel Ratio Sensor: Components

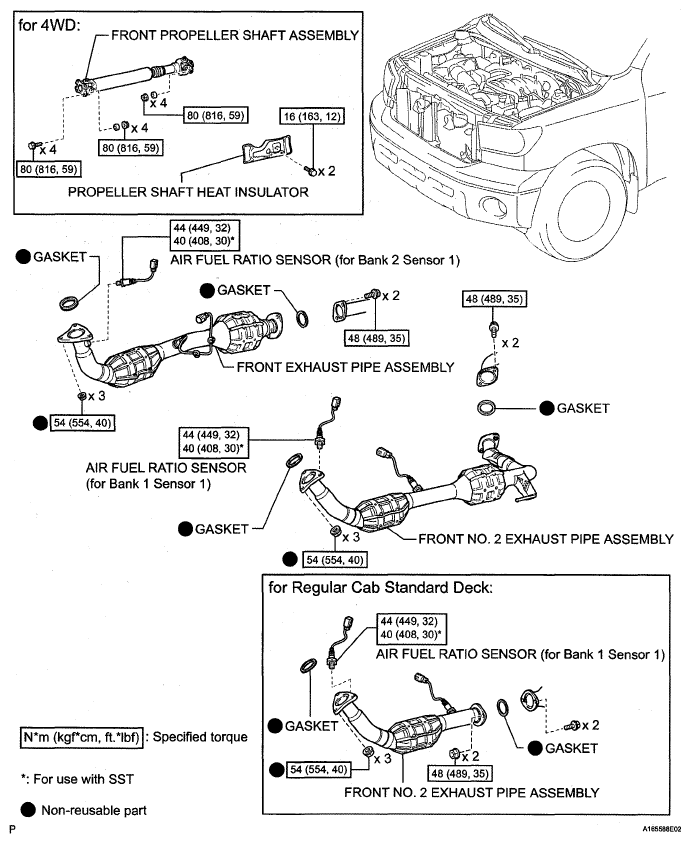

Fig 1: Identifying Air Fuel Ratio Sensor Replacement Components With Torque Specification
G05681744Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
