Engine Control System (3UR-FE) - System Testing, On-Vehicle Inspection, Removal, Inspection & Installation: ECM: Components

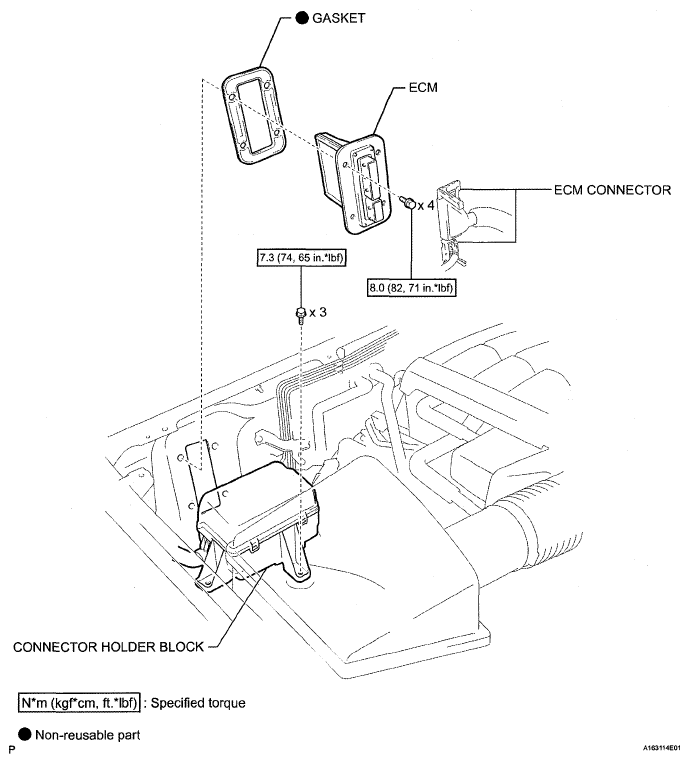

Fig 1: Identifying ECM Connector Replacement Components With Torque Specification
G05681700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
