Engine Control System (3UR-FE) - System Testing, On-Vehicle Inspection, Removal, Inspection & Installation
›
Engine Coolant Temperature Sensor
›
Components
Engine Coolant Temperature Sensor: Components

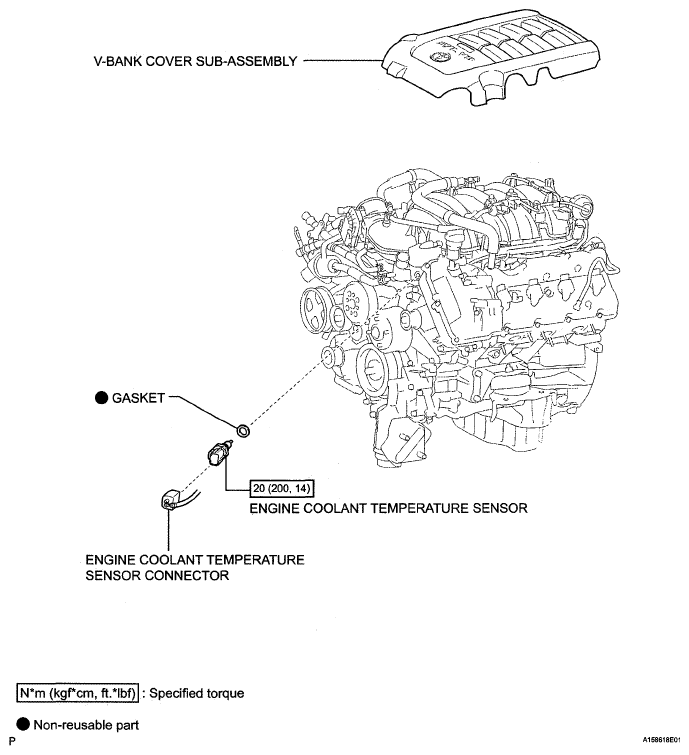

Fig 1: Identifying Engine Coolant Temperature Sensor Replacement Components With Torque Specification
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
