Yaris Base, 2D Hatchback, Automatic
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
ABS System
›
Notes
ABS System: Notes

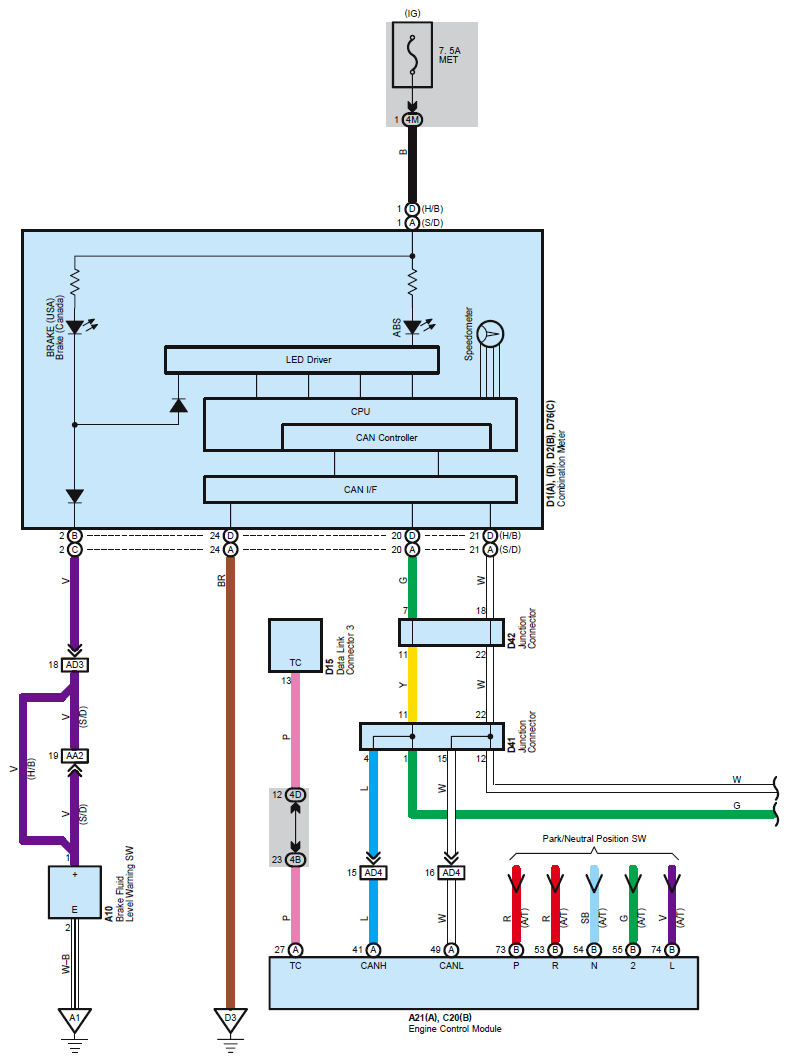

Fig 1: ABS - Circuit Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

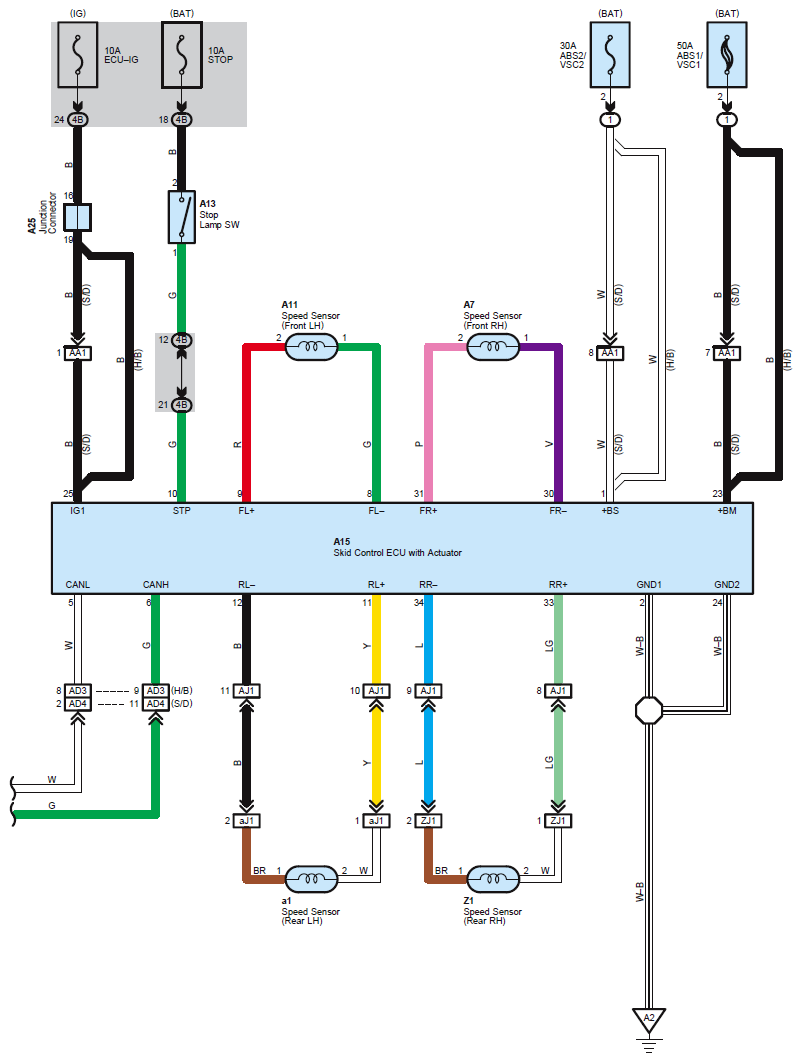

Fig 2: ABS - Circuit Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
