2008
›
Yaris Base, 2D Hatchback, Automatic
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Back-Up Light System
›
Notes
Back-Up Light System: Notes

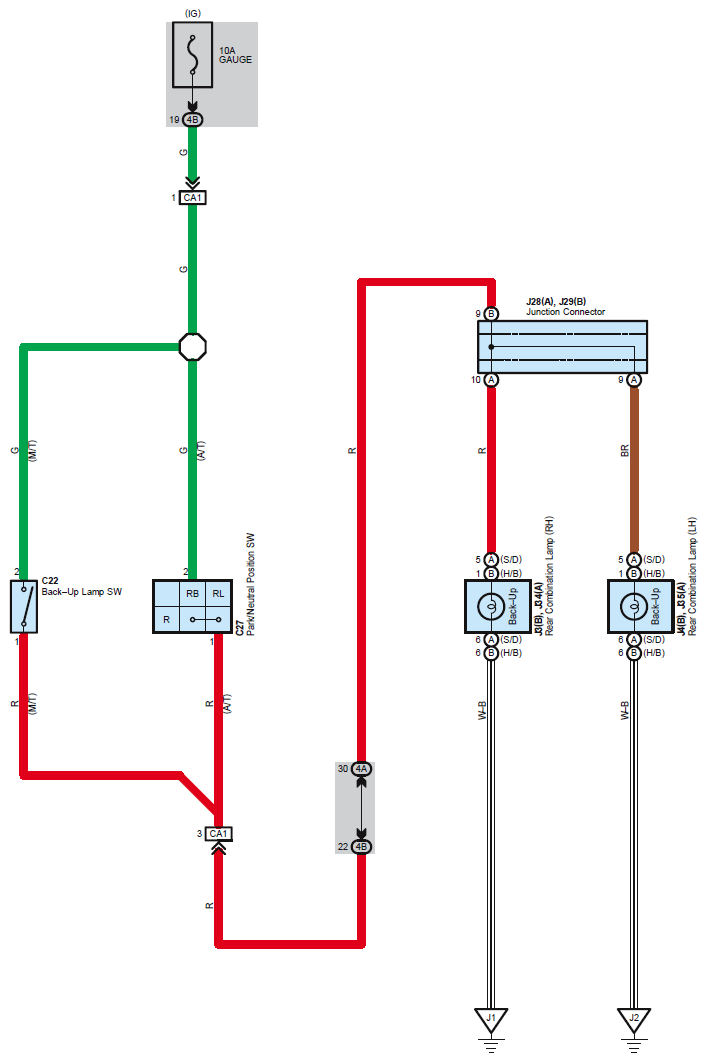

Fig 1: Back-Up Light - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
