Front Fog Light System: Notes

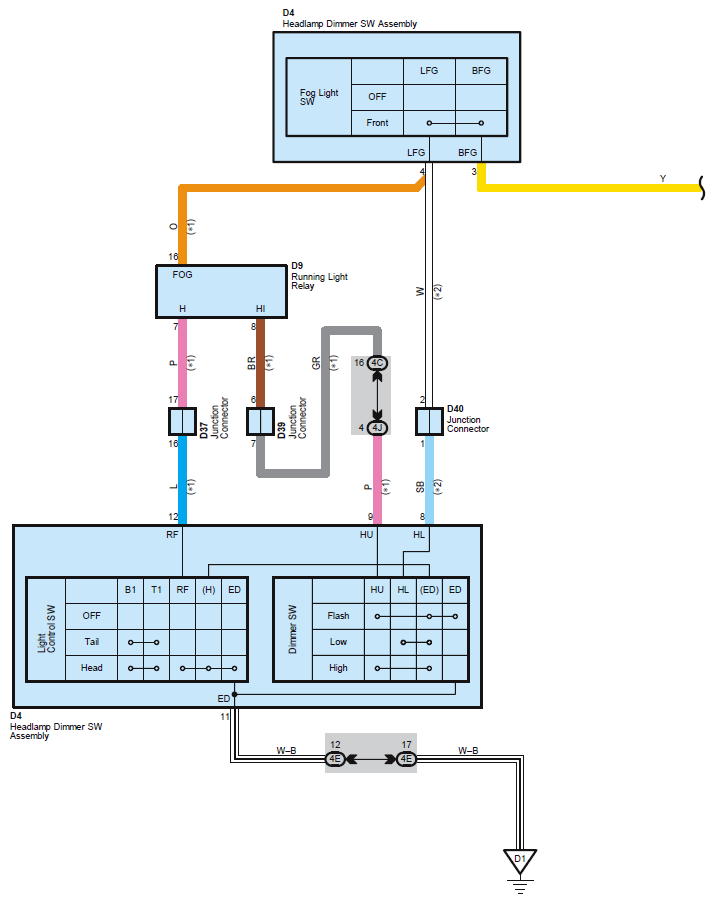

Fig 1: Front Fog Light - Circuit Diagram (1 Of 2)
G07604327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

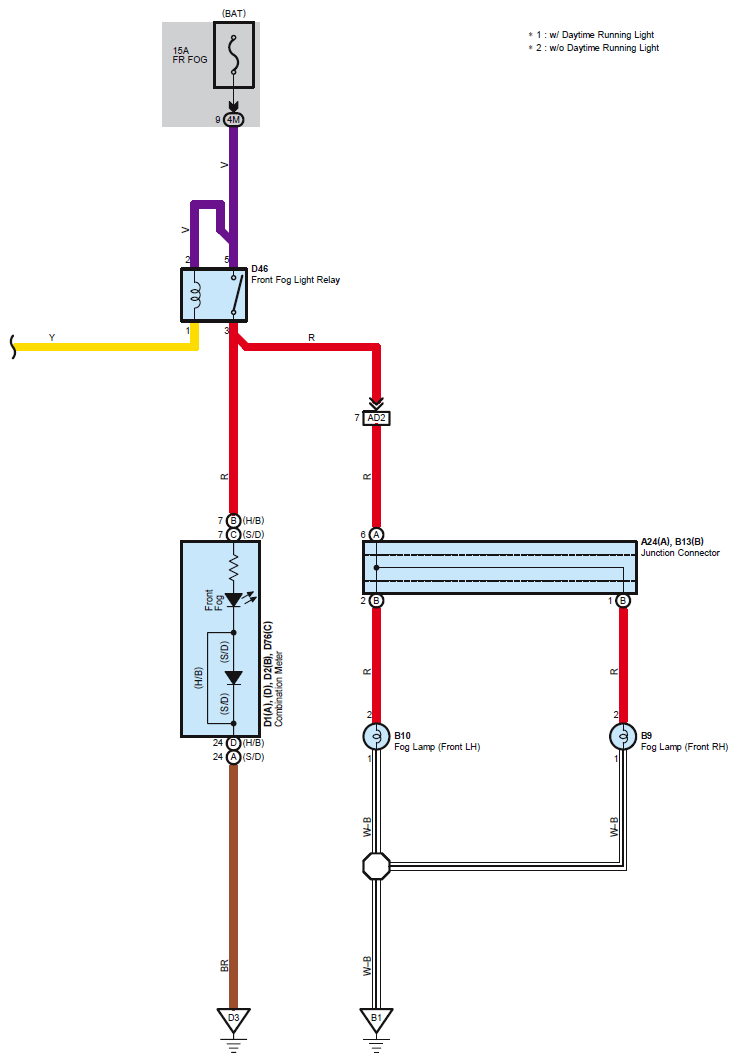

Fig 2: Front Fog Light - Circuit Diagram (2 Of 2)
G07604328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
