4Runner Limited, 4.7 T, AWD
›
Repair and Diagnosis
›
Body & Frame
›
Windows
›
Windshield/Window Glass
›
Power Window Control System
›
Symptom Test
›
Remote Up/Down Function does not Operate
›
Wiring Diagram
Remote Up/Down Function does not Operate: Wiring Diagram

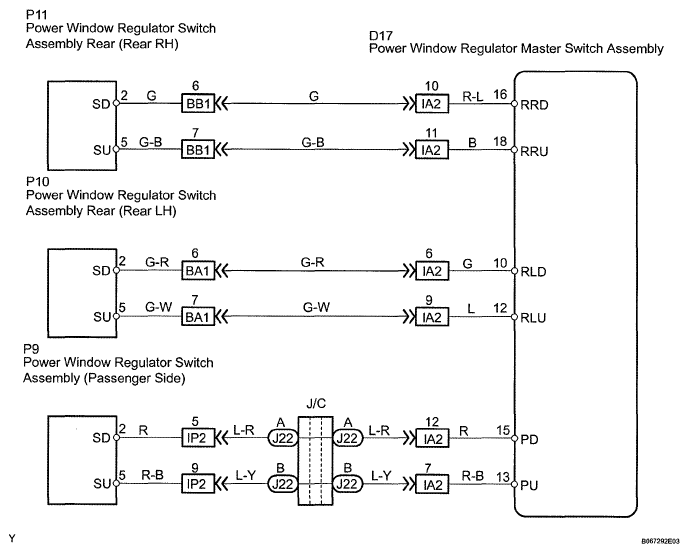

Fig 1: Remote Up/Down Function - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
