4Runner Limited, 4.7 T, AWD
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Cruise Control (1GR-FE)
›
Notes
Cruise Control (1GR-FE): Notes

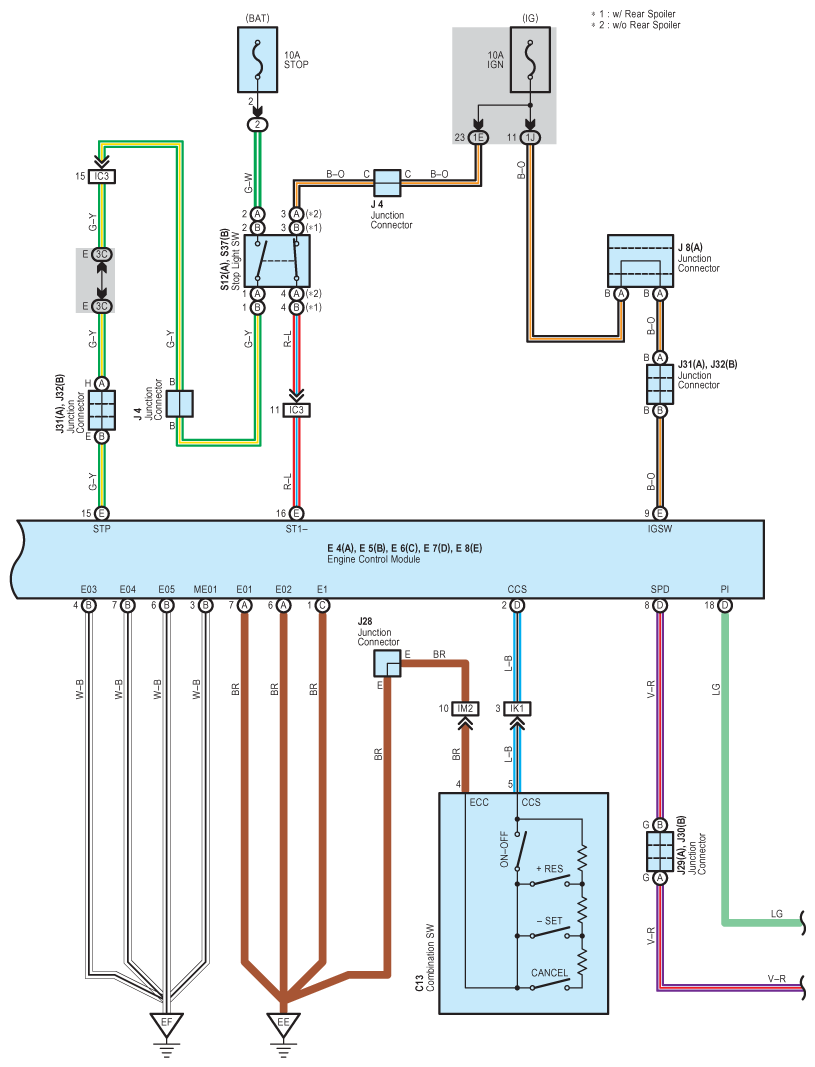

Fig 1: Cruise Control (1GR-FE) - Circuit Diagram (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

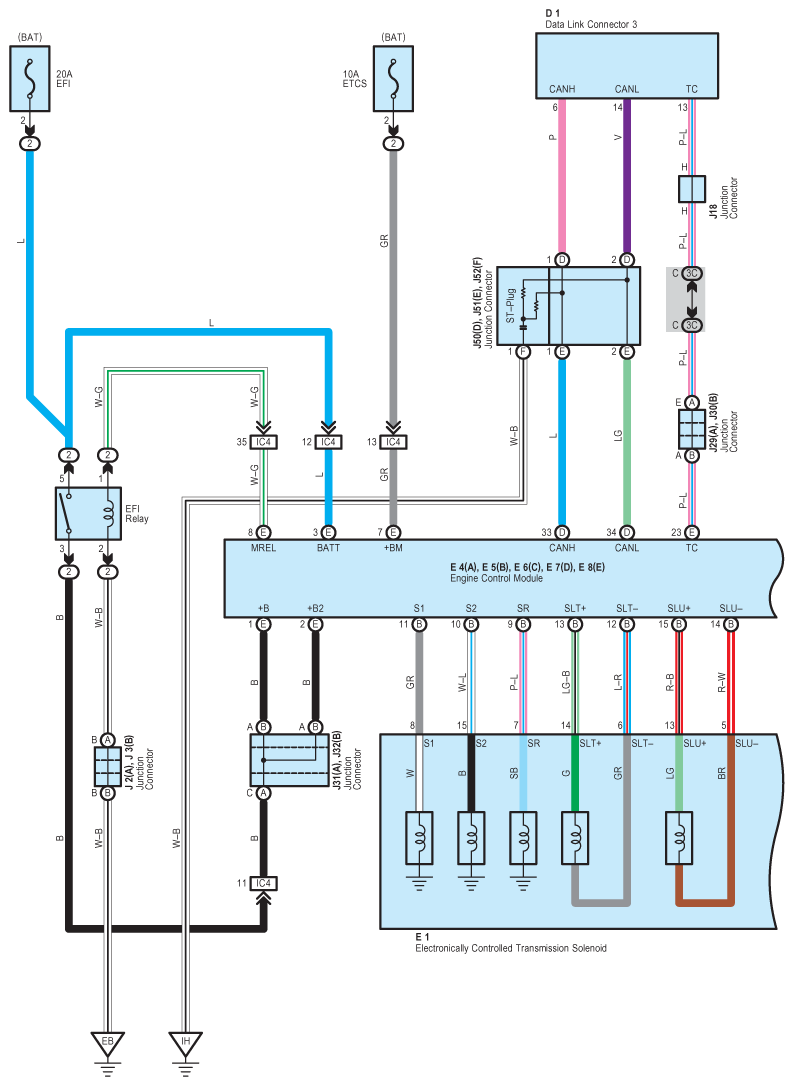

Fig 2: Cruise Control (1GR-FE) - Circuit Diagram (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

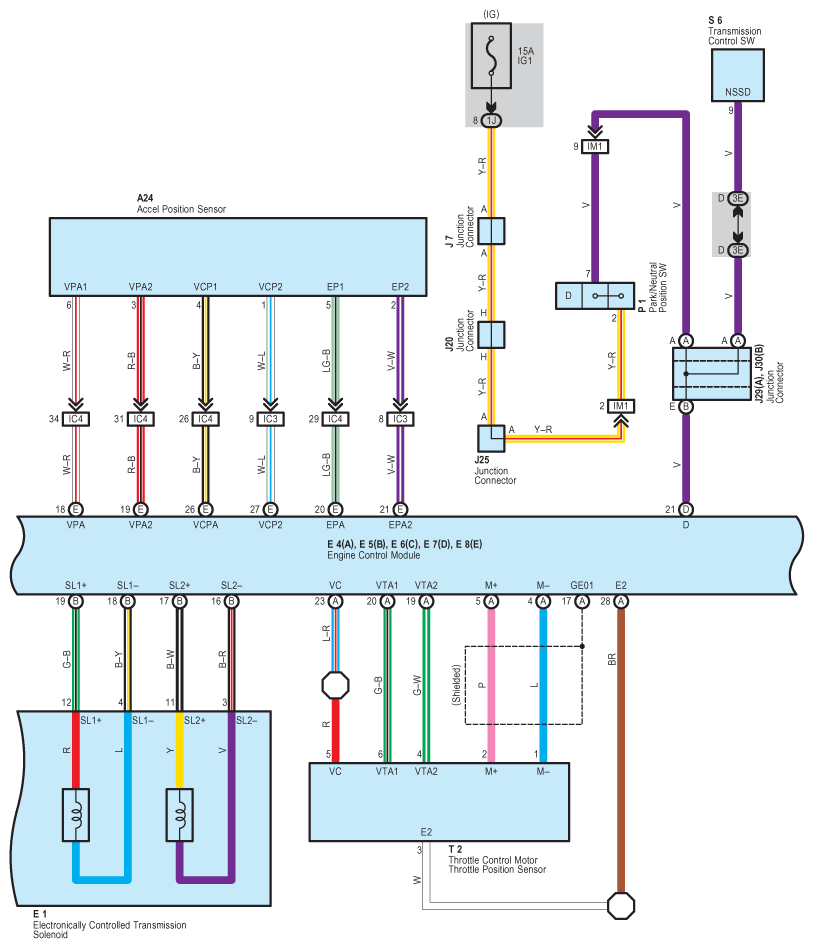

Fig 3: Cruise Control (1GR-FE) - Circuit Diagram (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

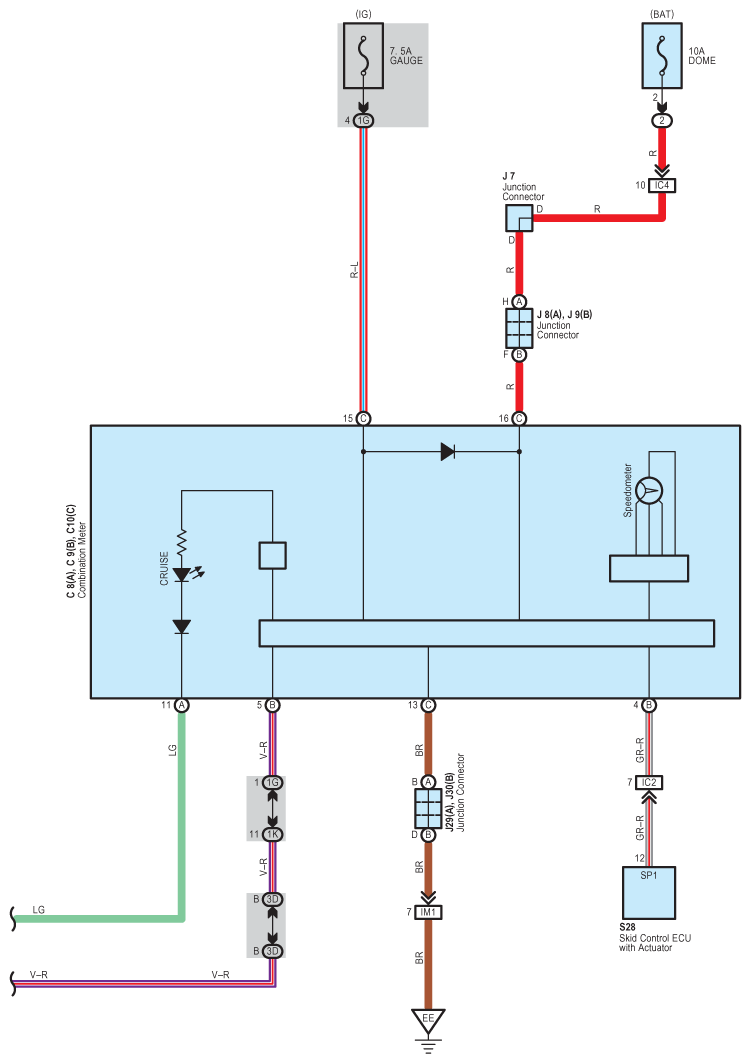

Fig 4: Cruise Control (1GR-FE) - Circuit Diagram (4 Of 4)
