Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

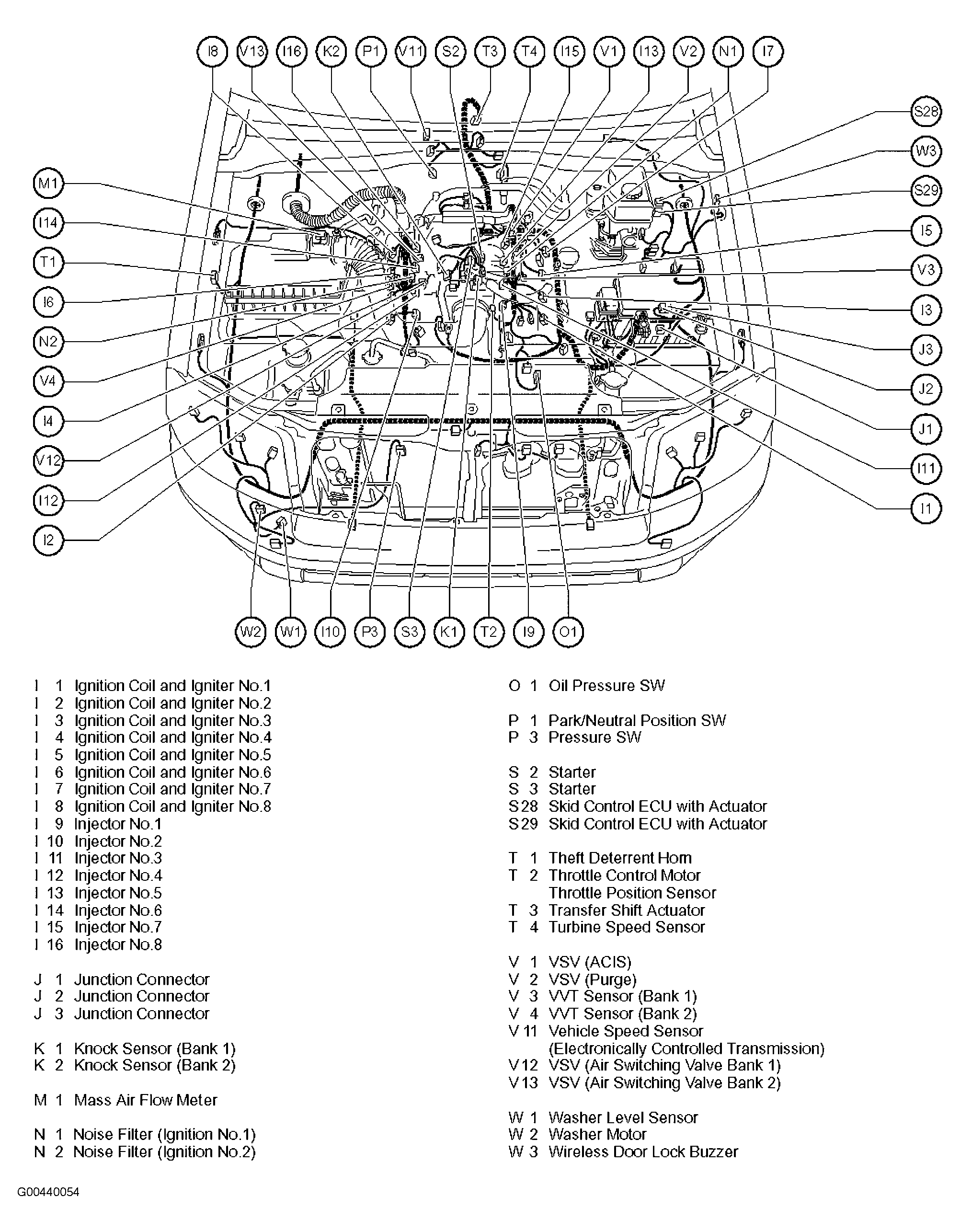

Fig 1: Engine Compartment (4.7L)

G00440054

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

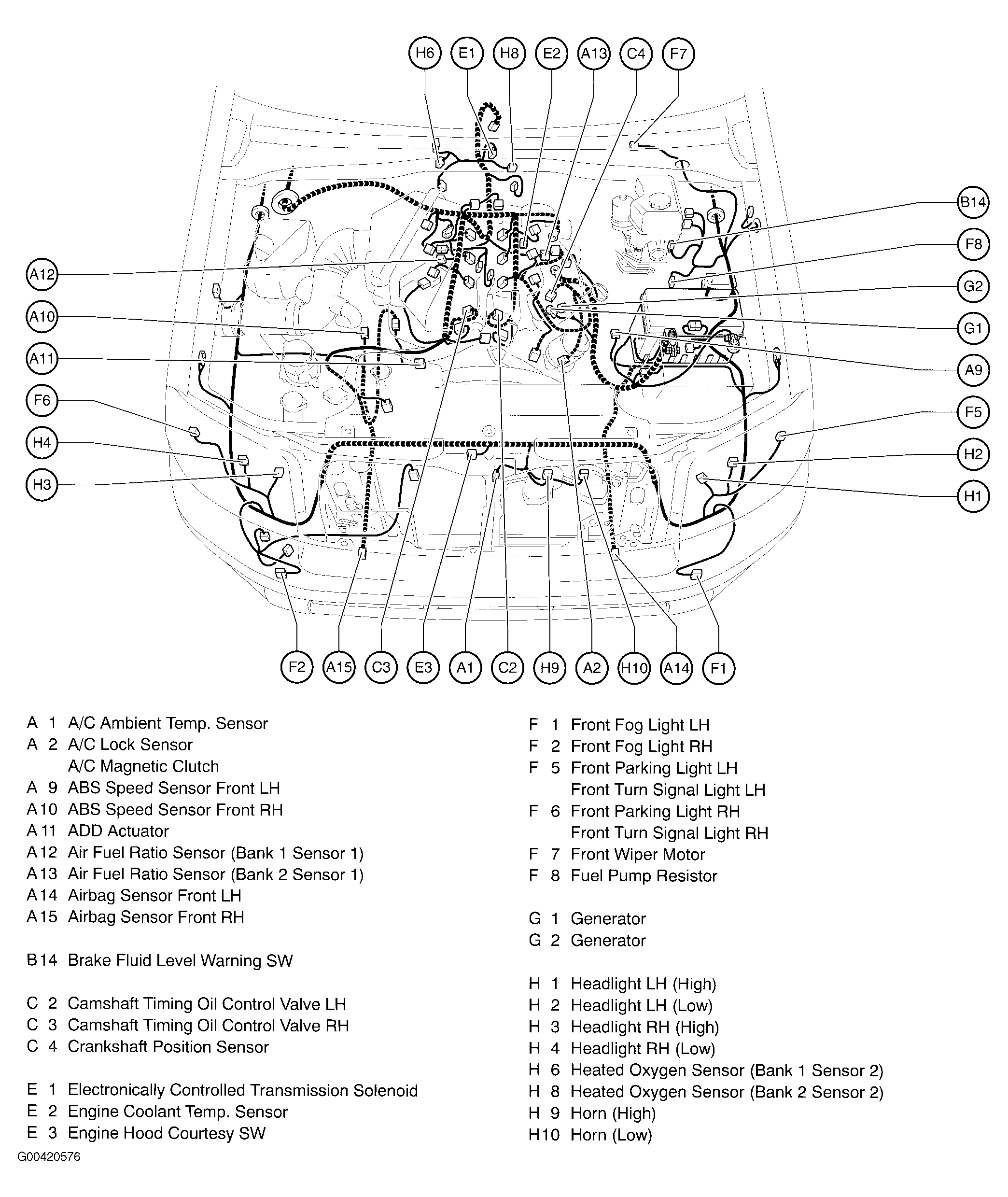

Fig 2: Engine Compartment (4.0L)

G00420576

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

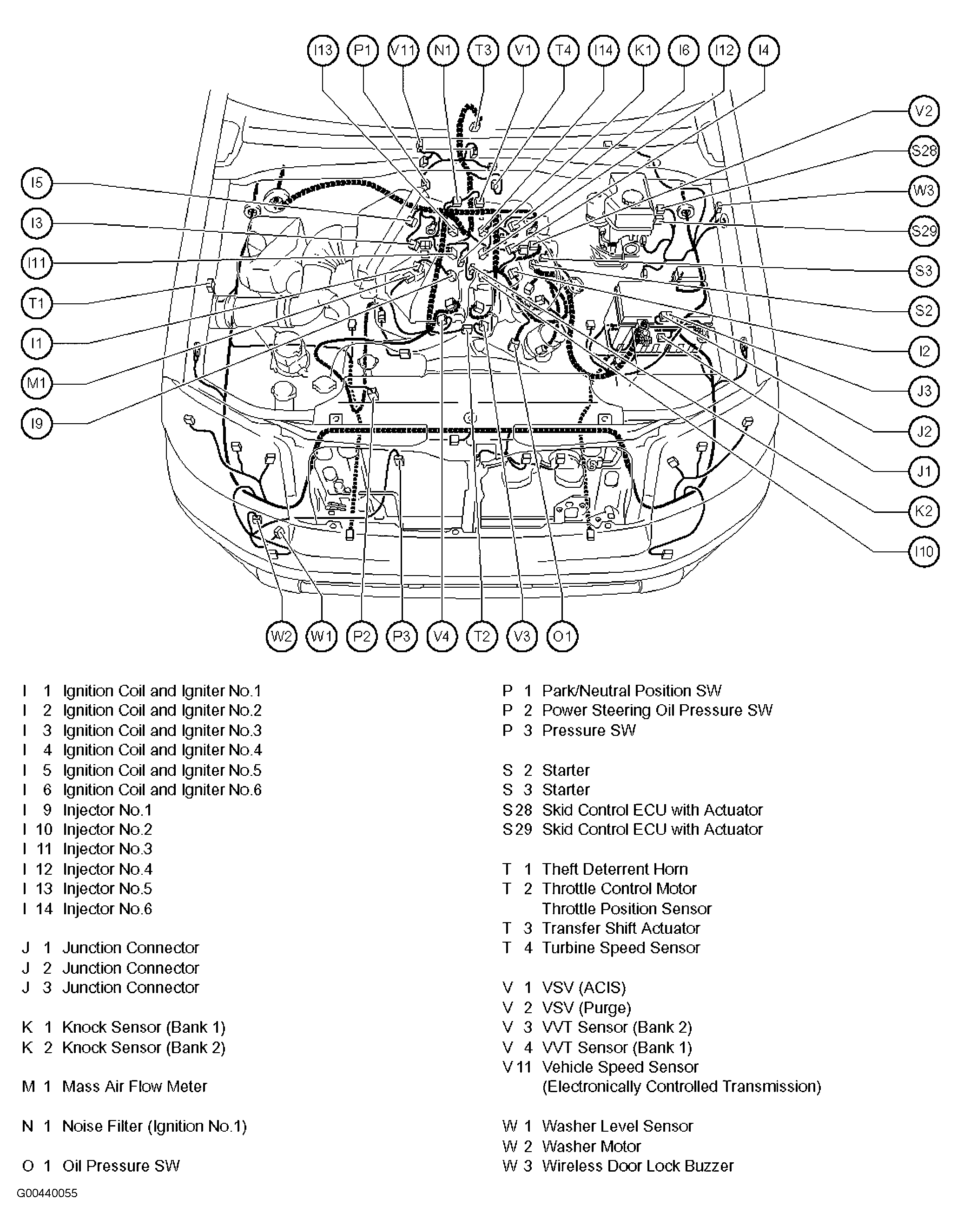

Fig 3: Engine Compartment (4.0L)

G00440055

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Dash

G00467376

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

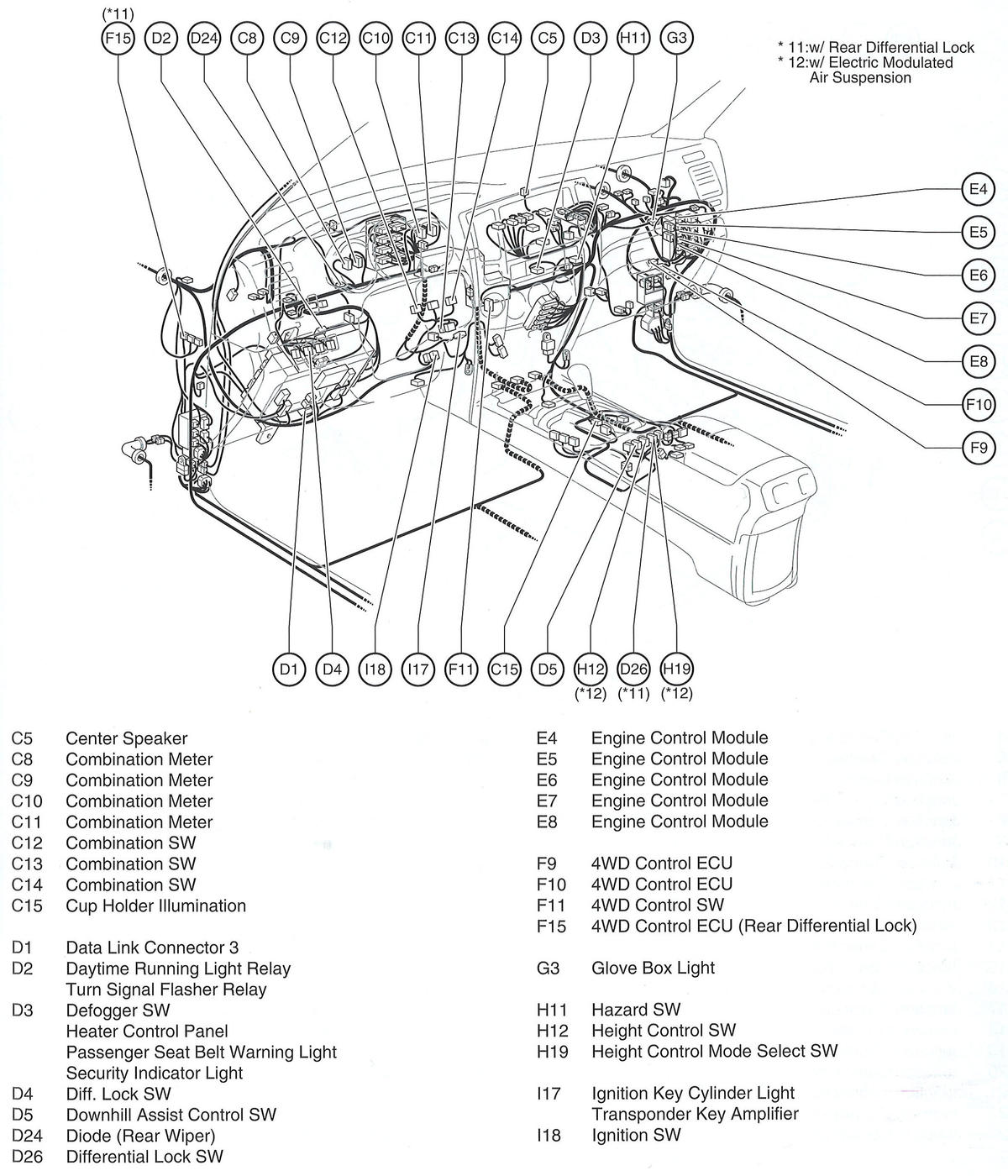

Fig 5: Dash

G00467377

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

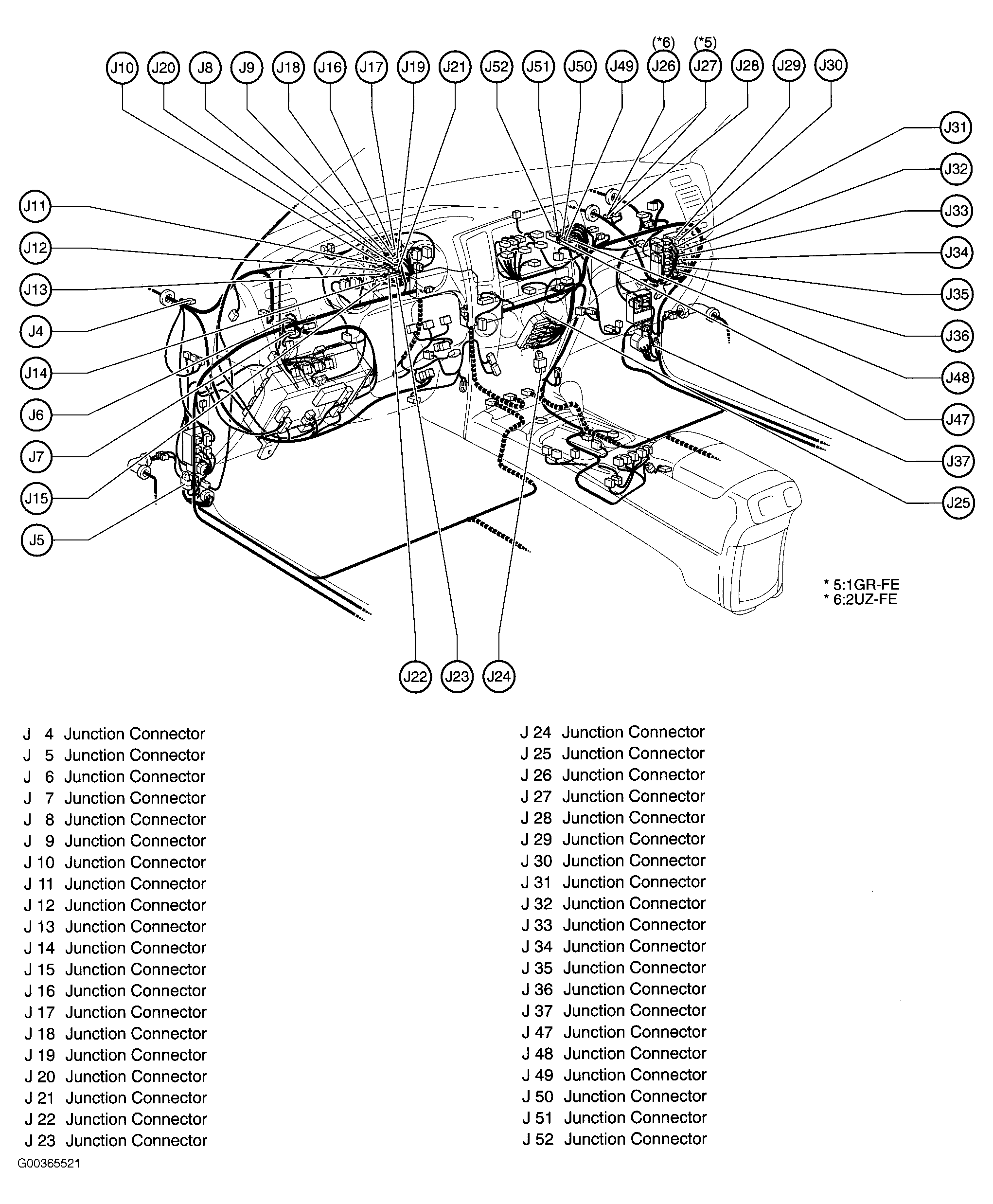

Fig 6: Dash

G00365521

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Dash

G00467378

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

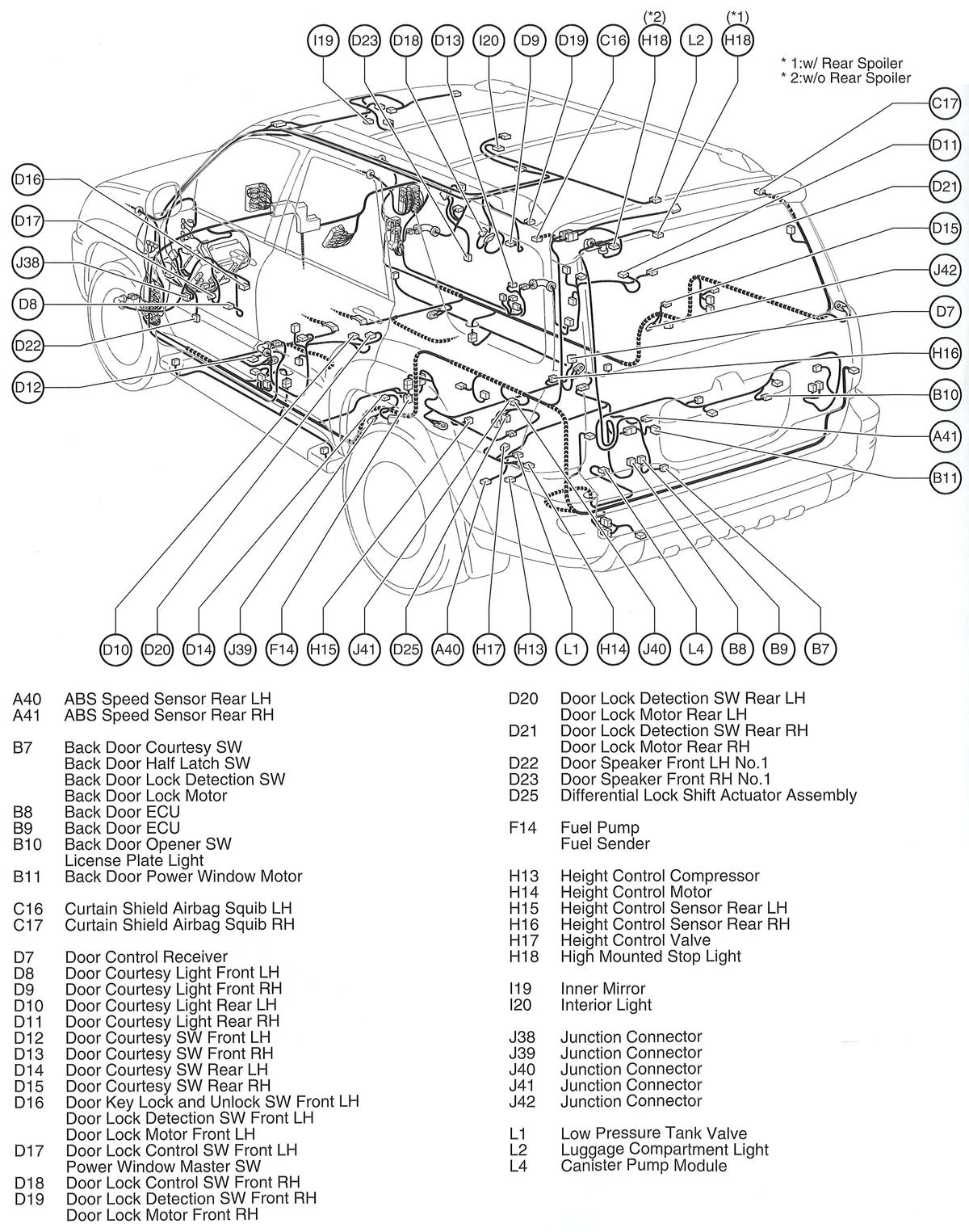

Fig 8: Vehicle Overview

G00467379

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

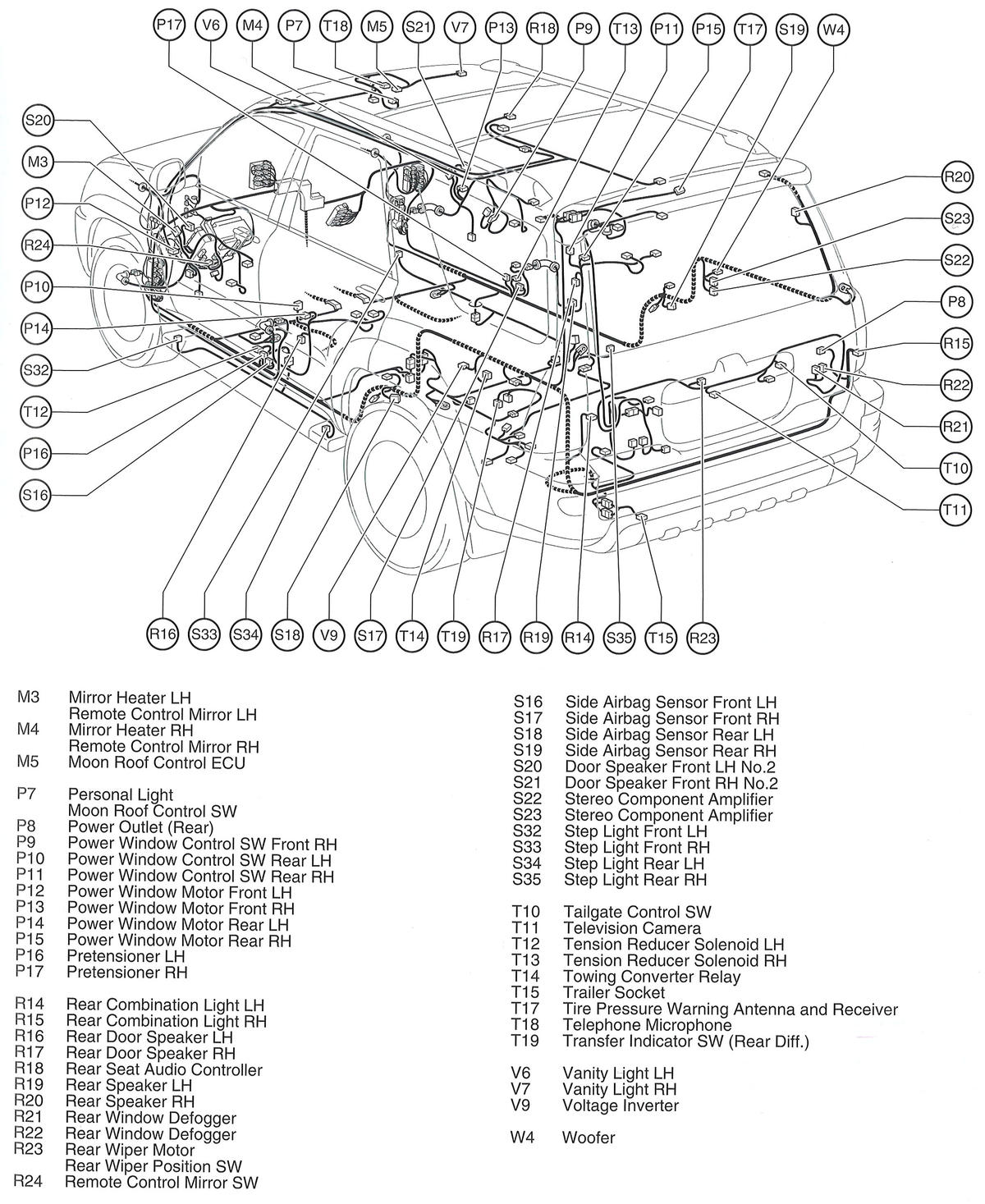

Fig 9: Vehicle Overview

G00467380

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

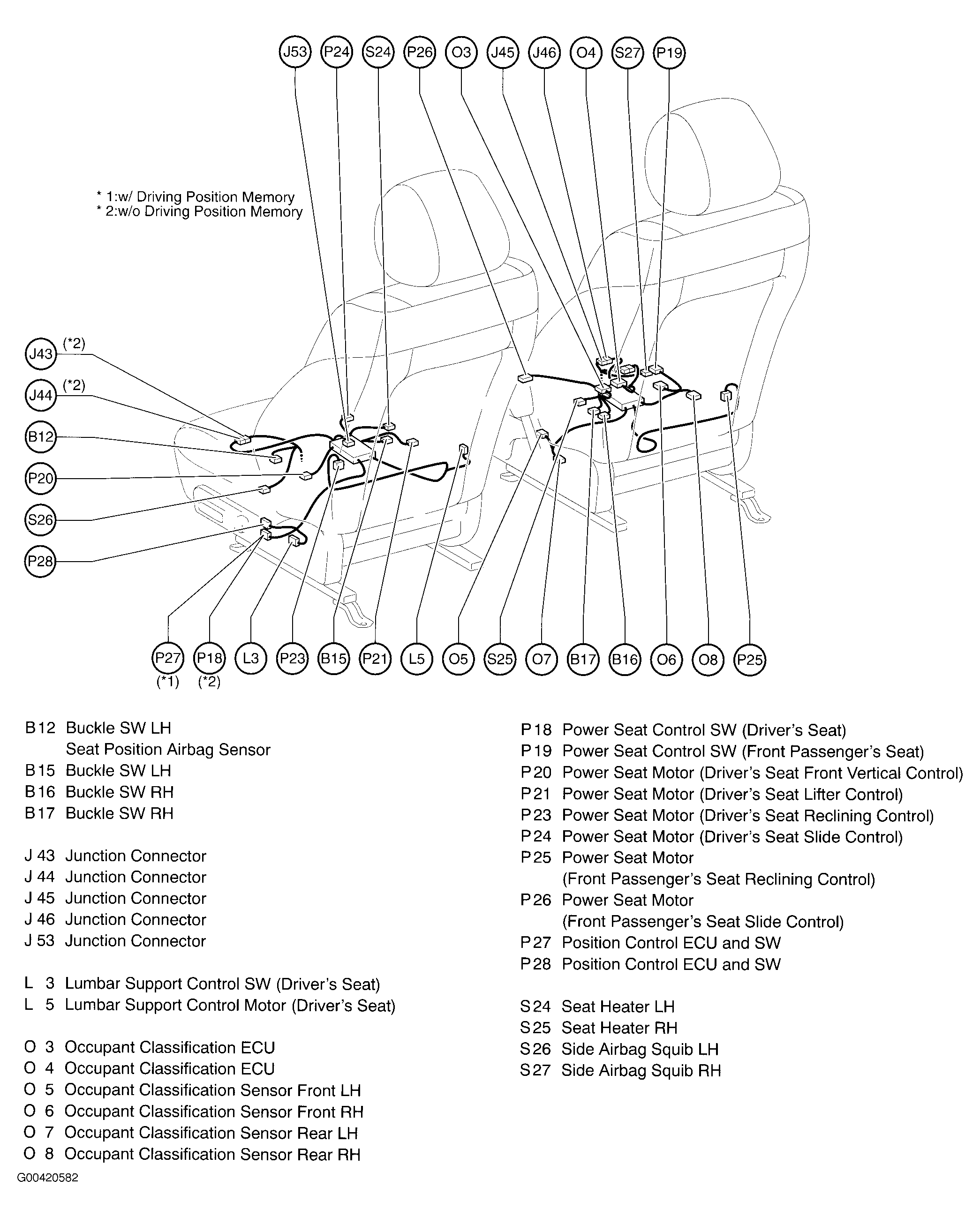

Fig 10: Front Seats (Power Seats)

G00420582

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

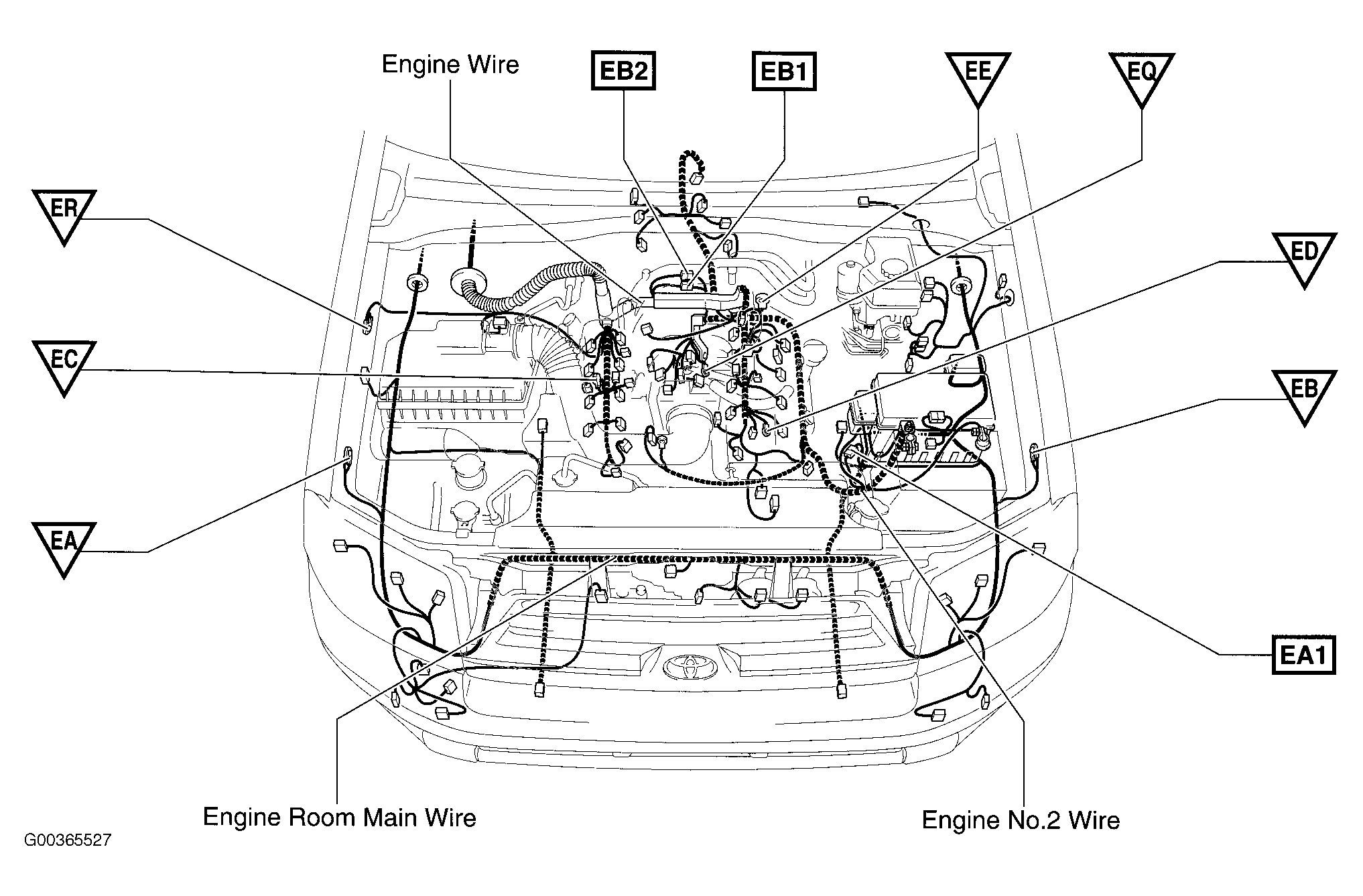

Fig 11: Engine Compartment (4.7L)

G00365527

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

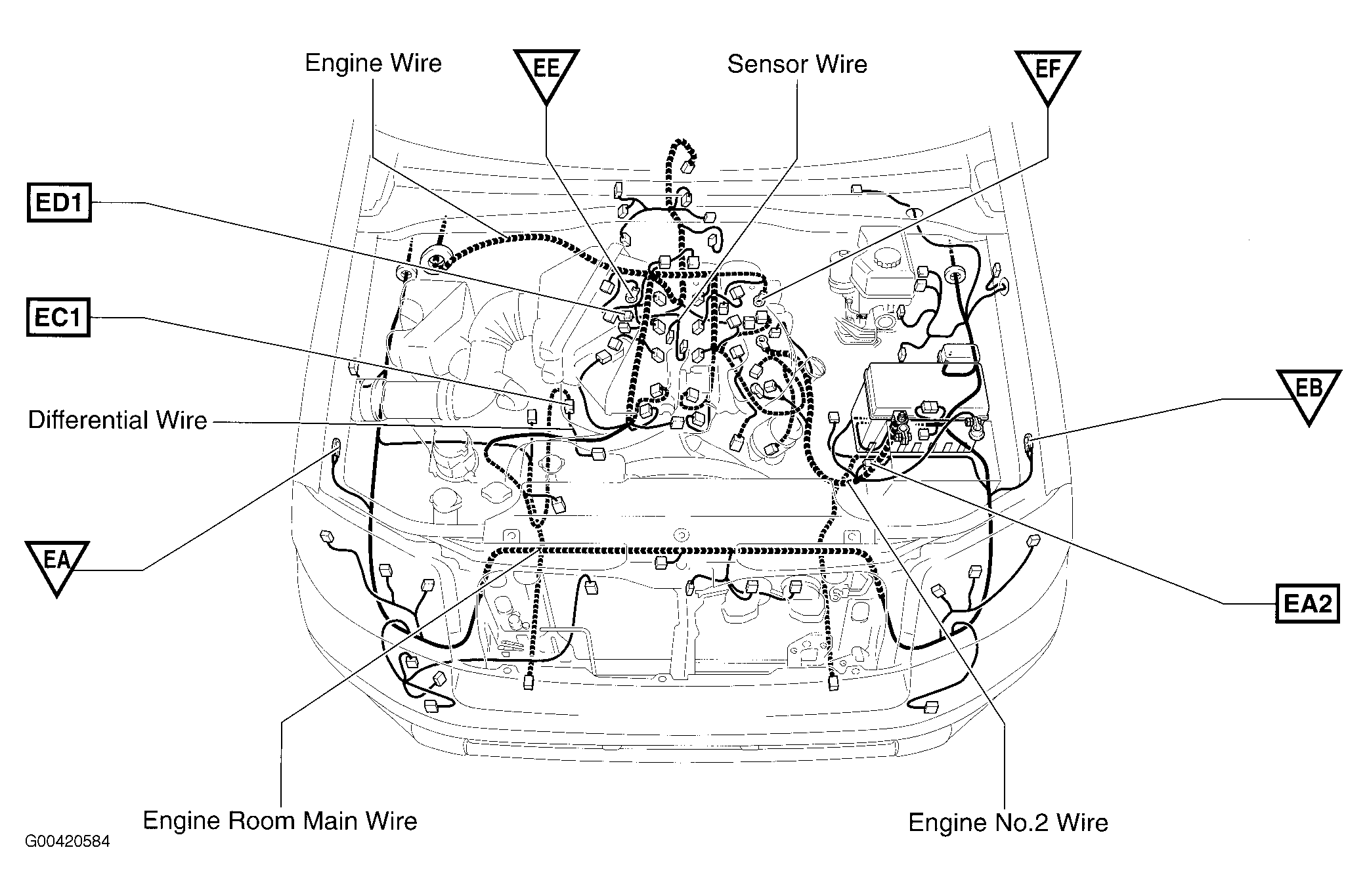

Fig 12: Engine Compartment (4.0L)

G00420584

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

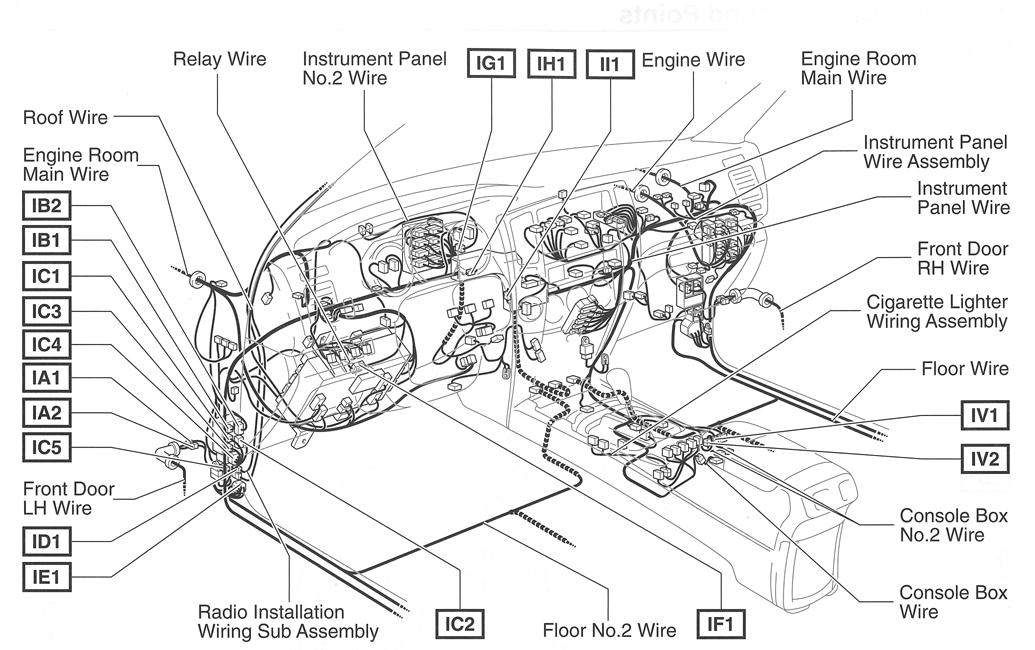

Fig 13: Dash

G00458944

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

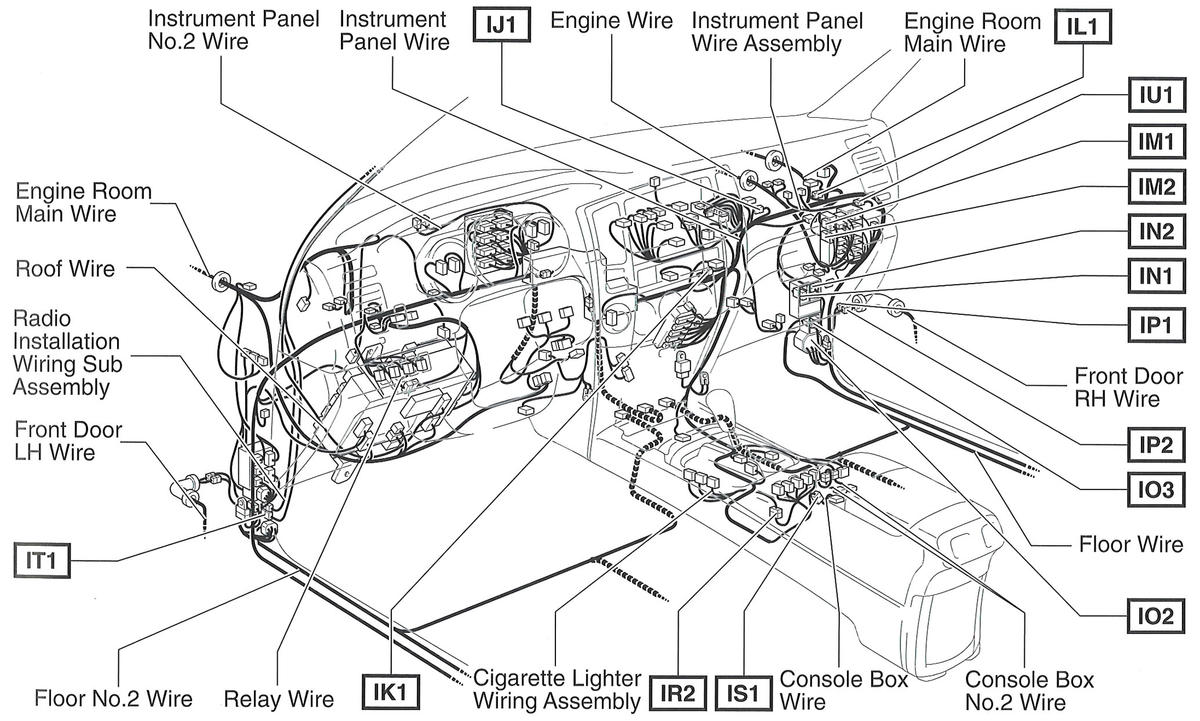

Fig 14: Dash

G00467381

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

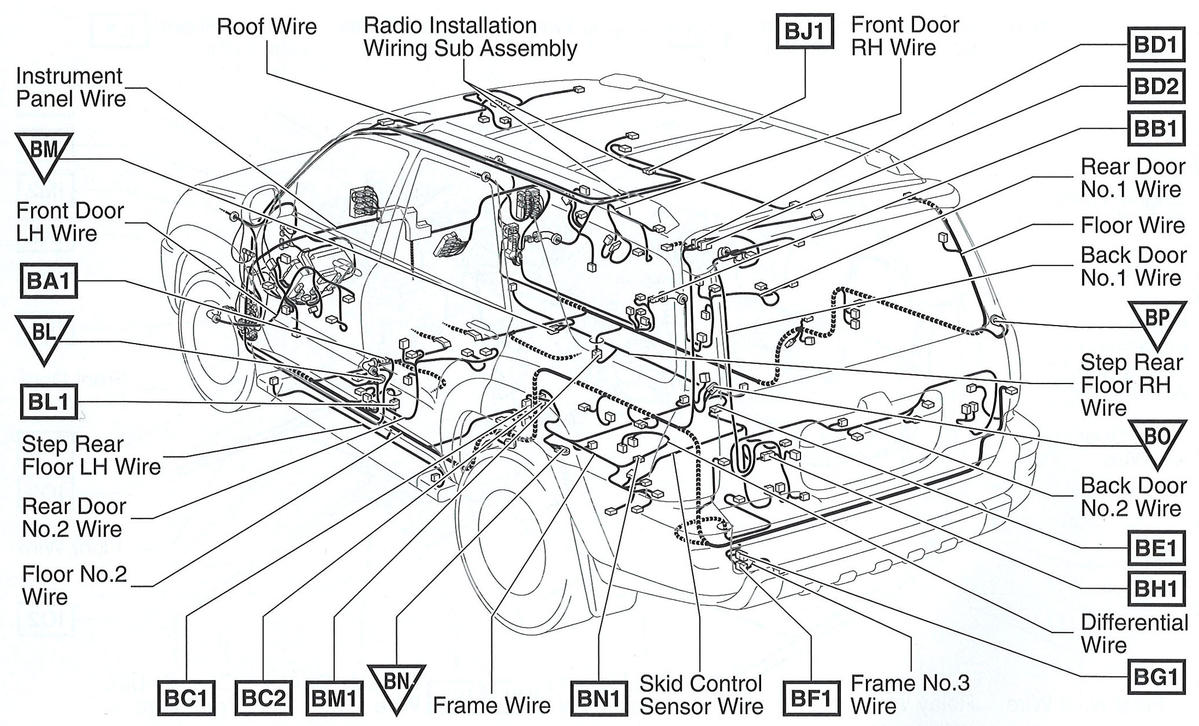

Fig 15: Vehicle Overview

G00467382

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 16: Engine Compartment

G00365511

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 17: Vehicle Overview

G00467294

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 18: Dash

G00467375

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

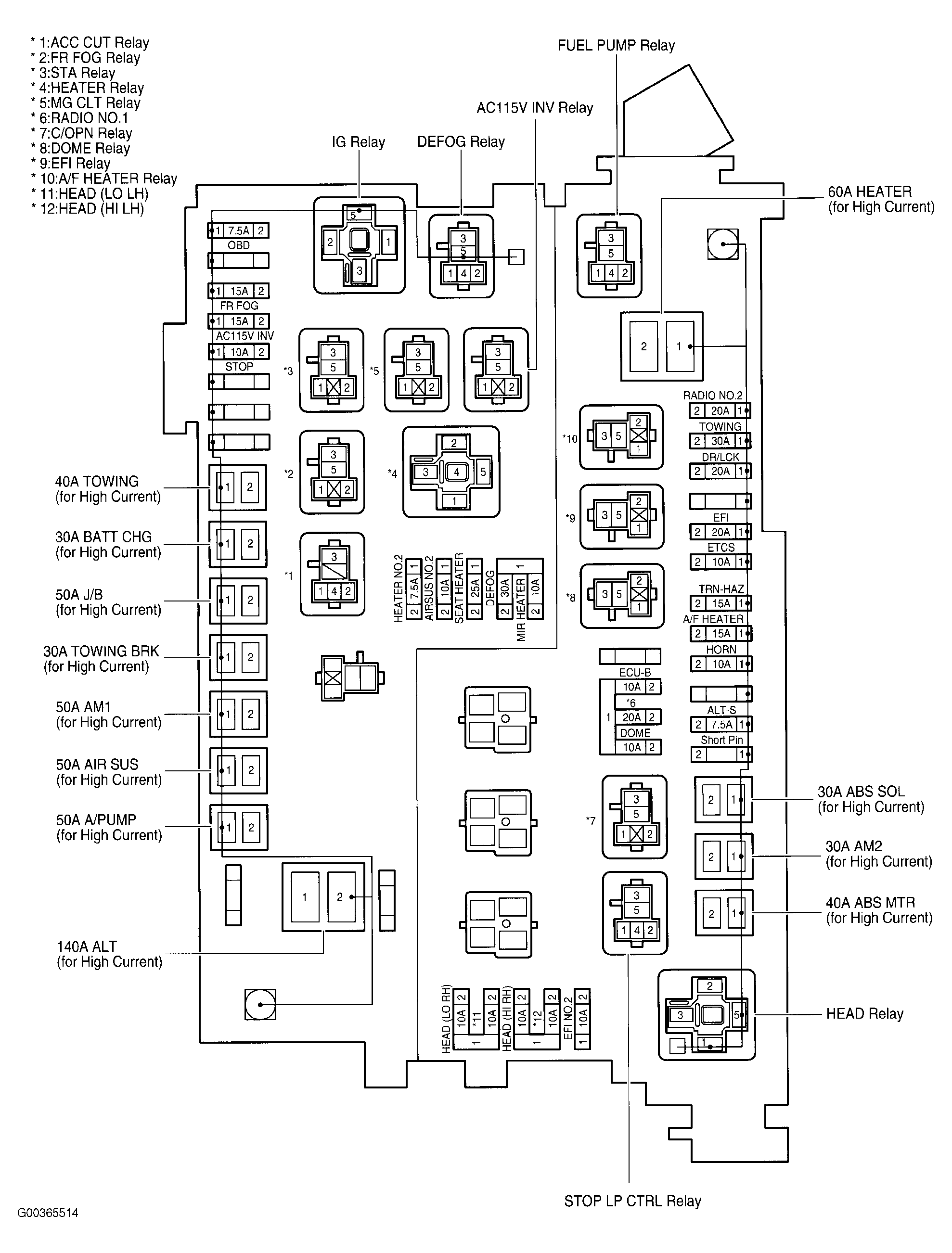

Fig 19: Engine Room R/B

G00365514

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 20: Engine Room R/B No. 3

G00262561

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 21: Engine Room R/B No. 4

G00262594

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

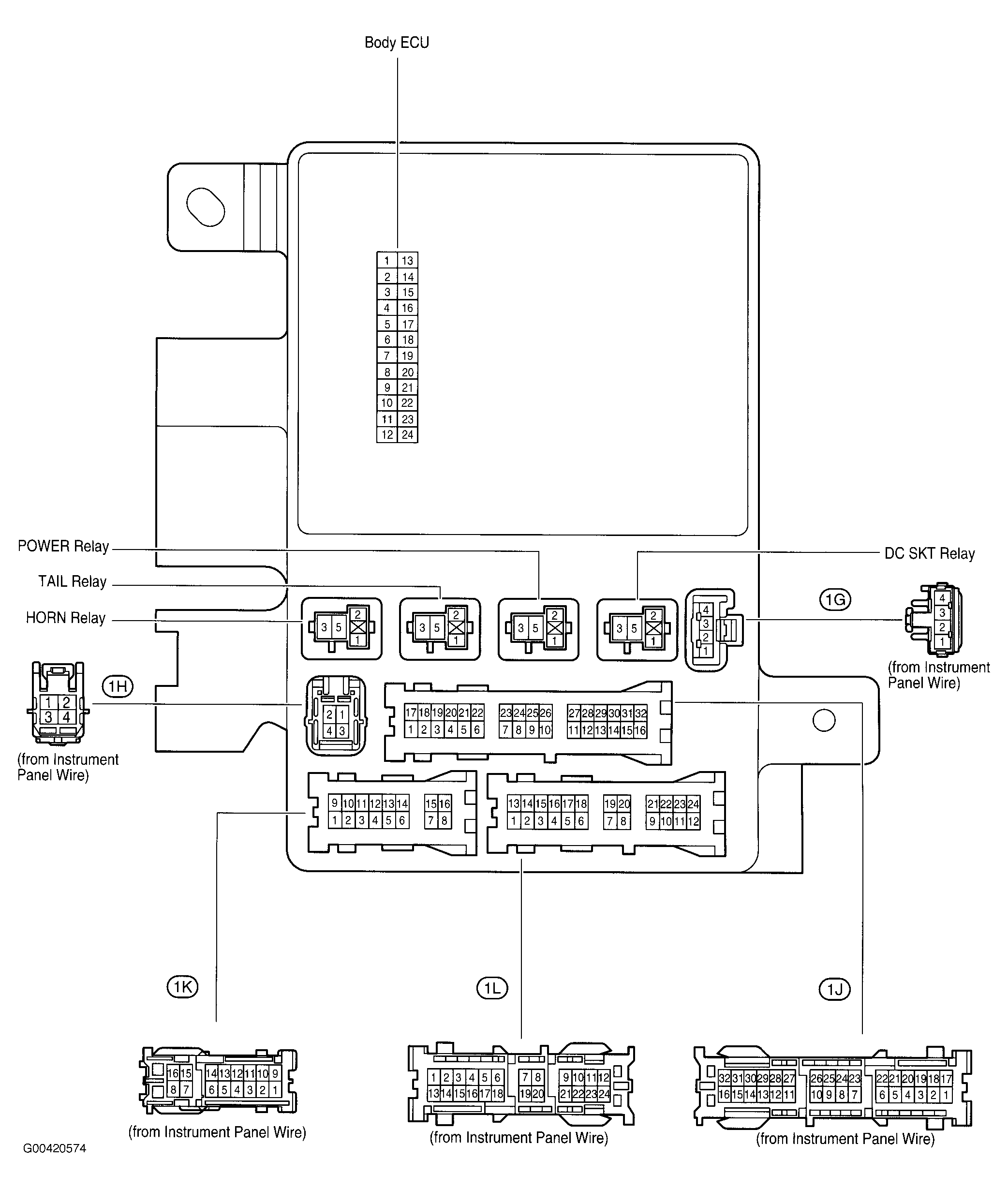

Fig 22: Driver Side J/B

G00420574

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 23: Dash

G00262599

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 24: Front Seats

G00420573

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

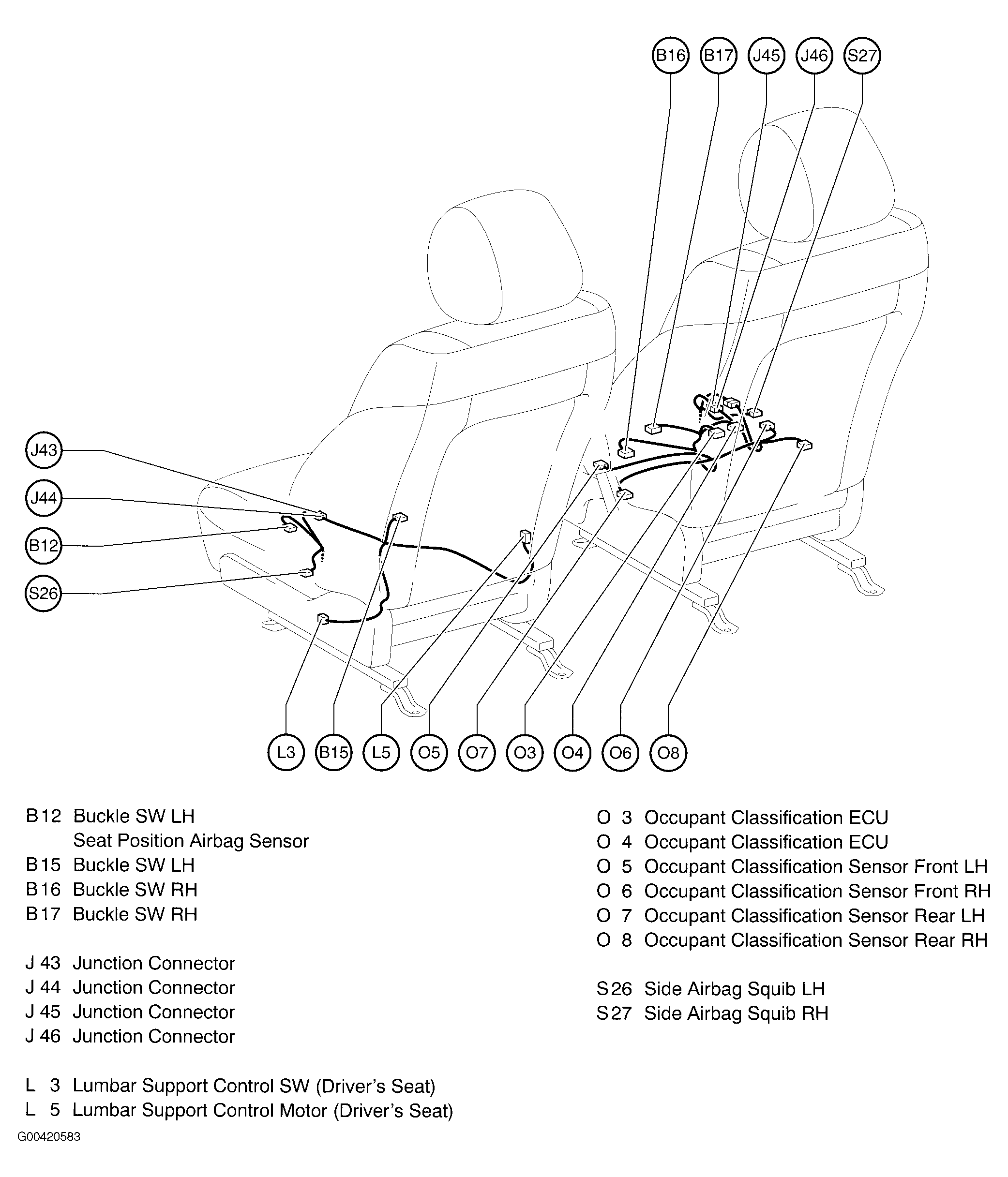

Fig 25: Front Seats (Manual Seats)

G00420583

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

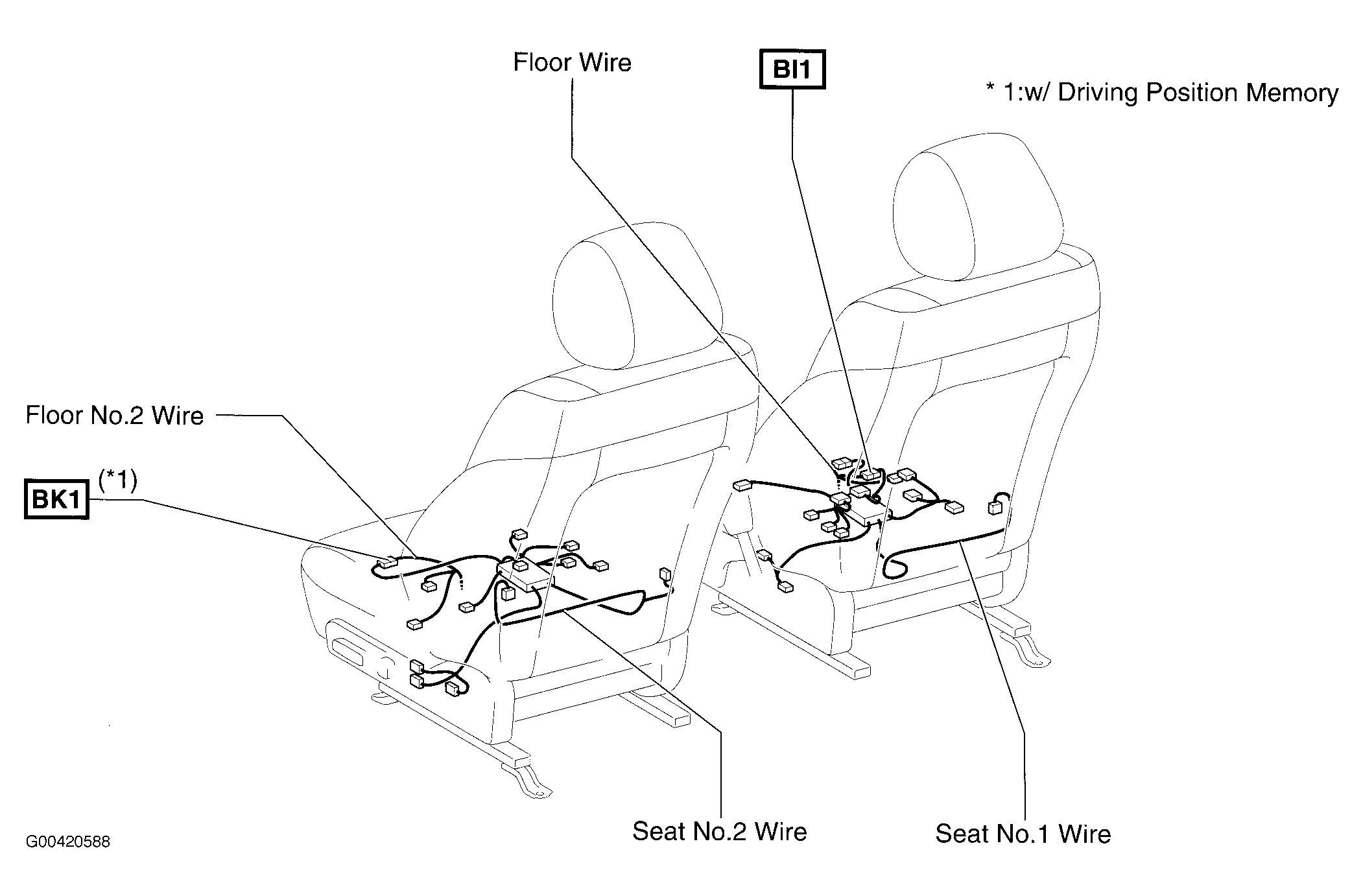

Fig 26: Front Seats

G00420588

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

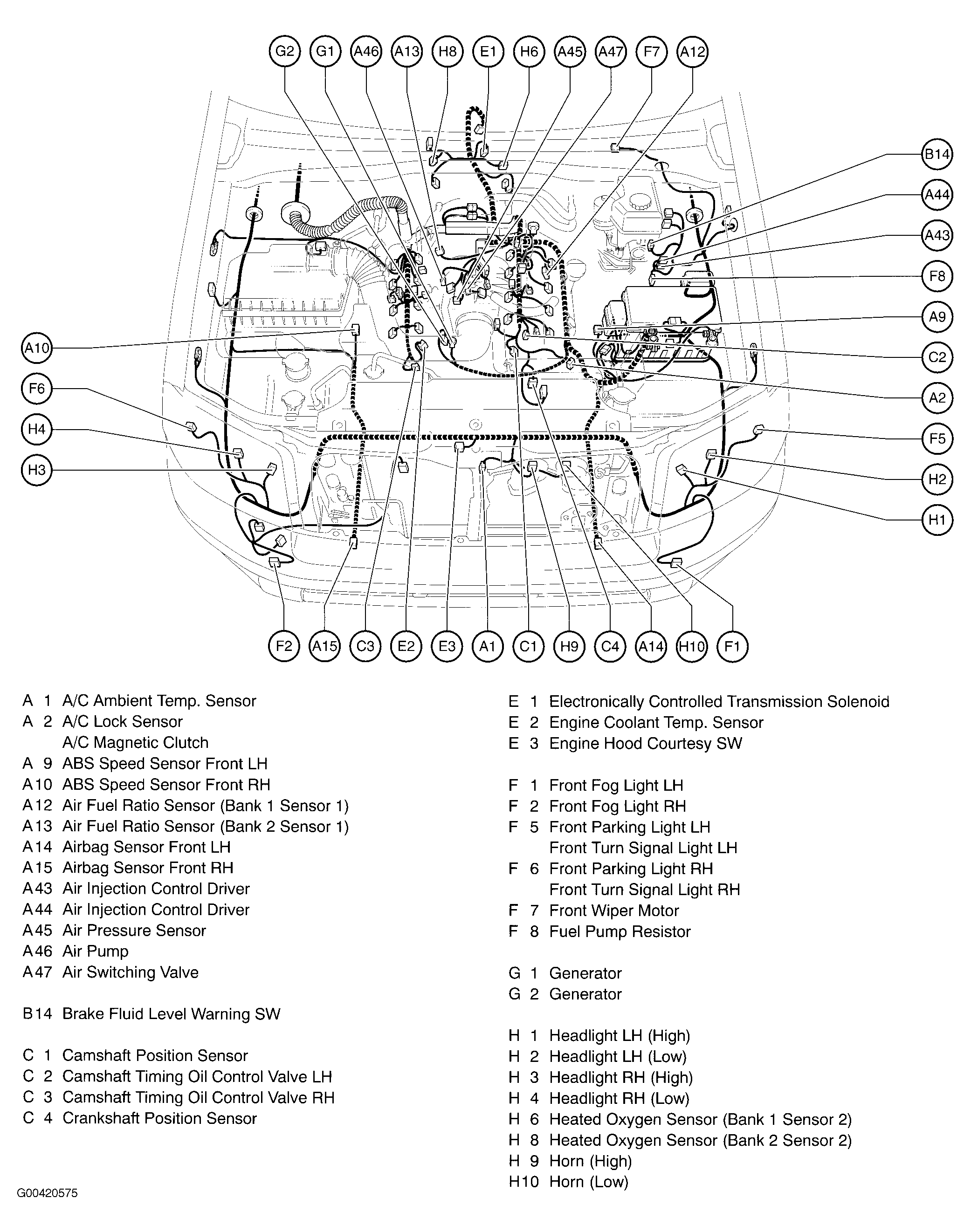

Fig 27: Engine Compartment (4.7L)

G00420575

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
