Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Air Injection Control Driver | Left side of engine compartment. See Figure. |
| Back Door ECU | Left side of liftgate. See Figure. |

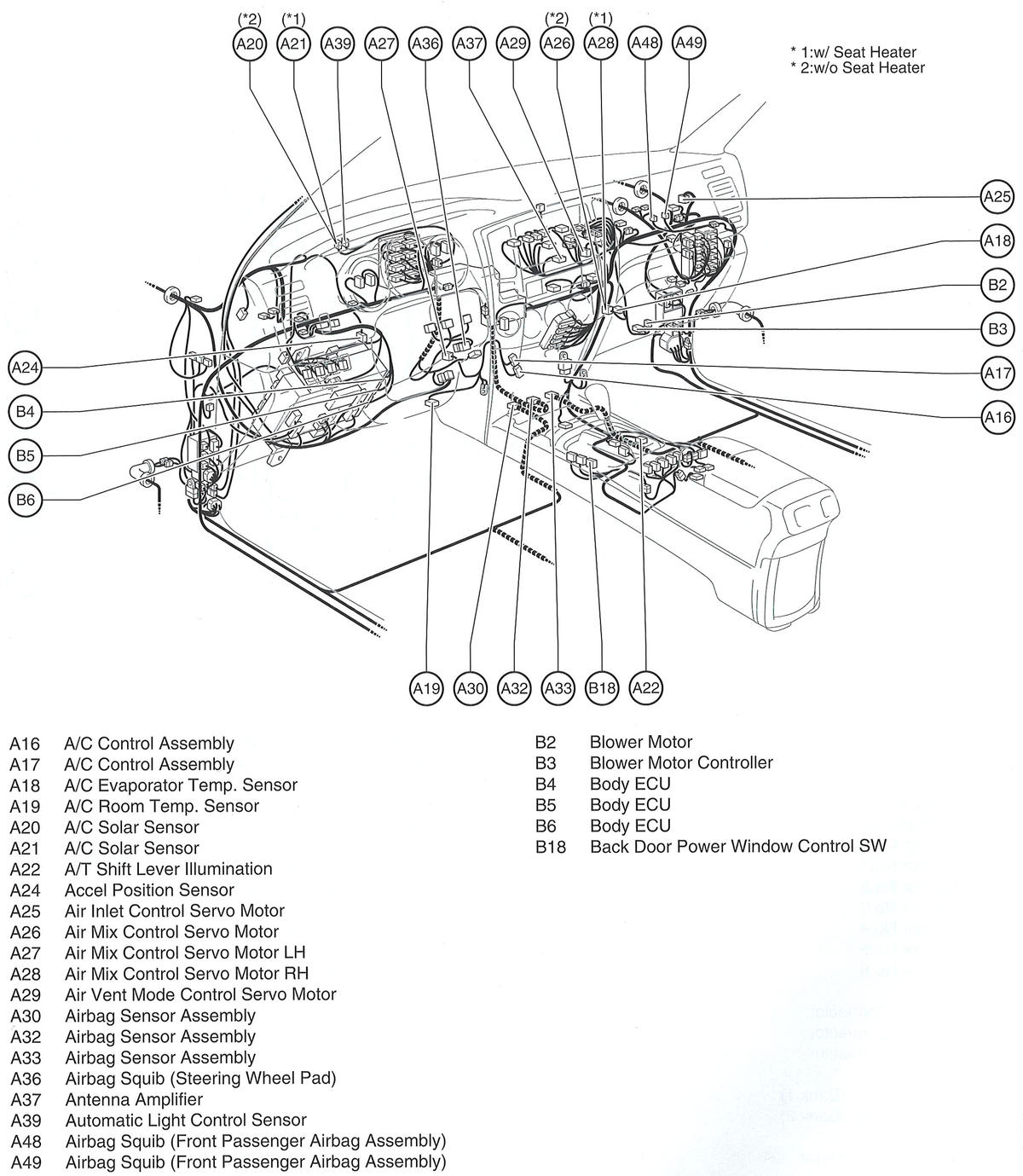

| Blower Motor Controller | Right side of dash. See Figure. |
| Body ECU | Driver side J/B. See Figure. |
| Door Control Receiver | Left "D" pillar. See Figure. |
| Engine Control Module | Right end of dash. See Figure. |

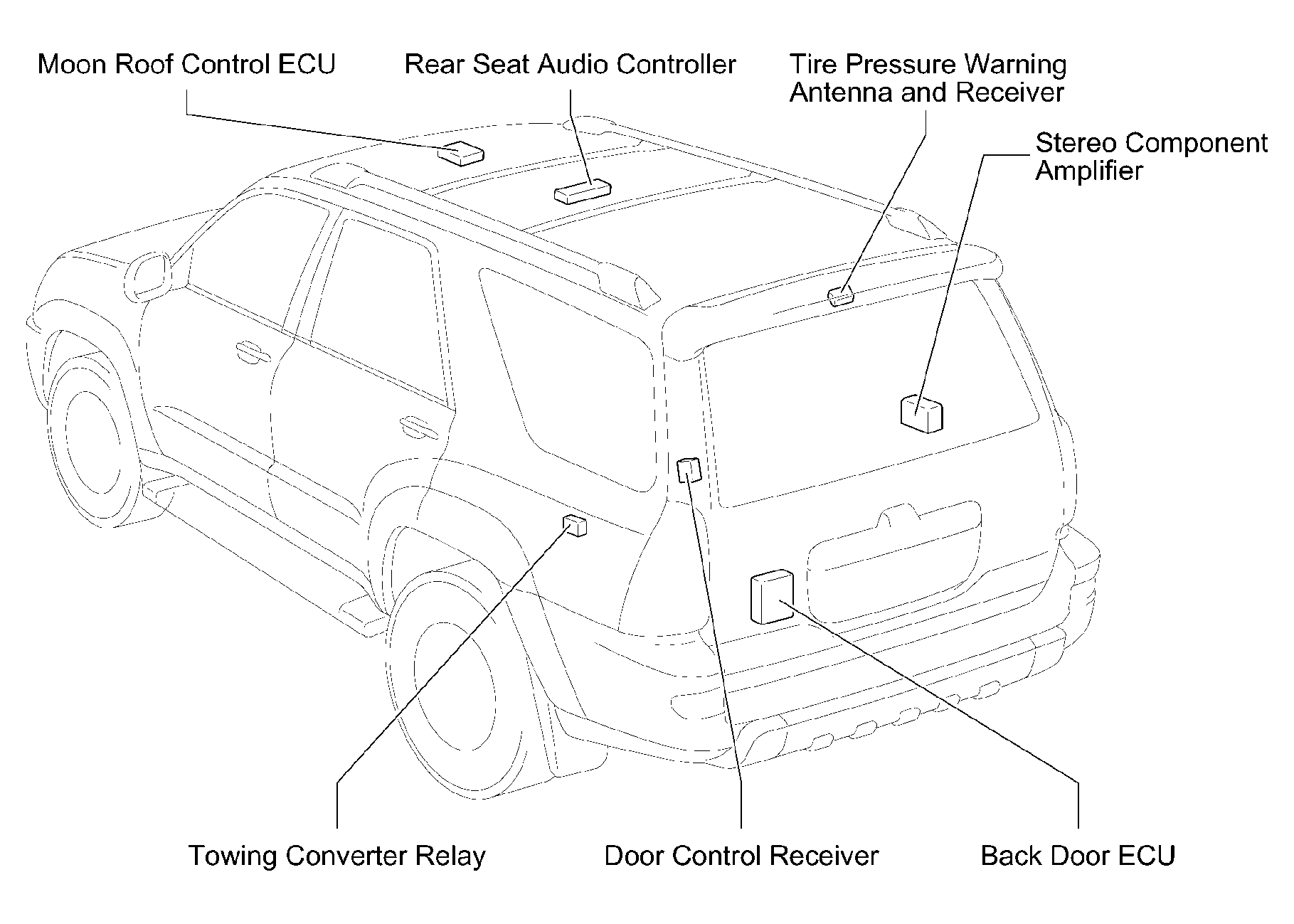

| Moon Roof Control ECU | Center of windshield header. See Figure. |

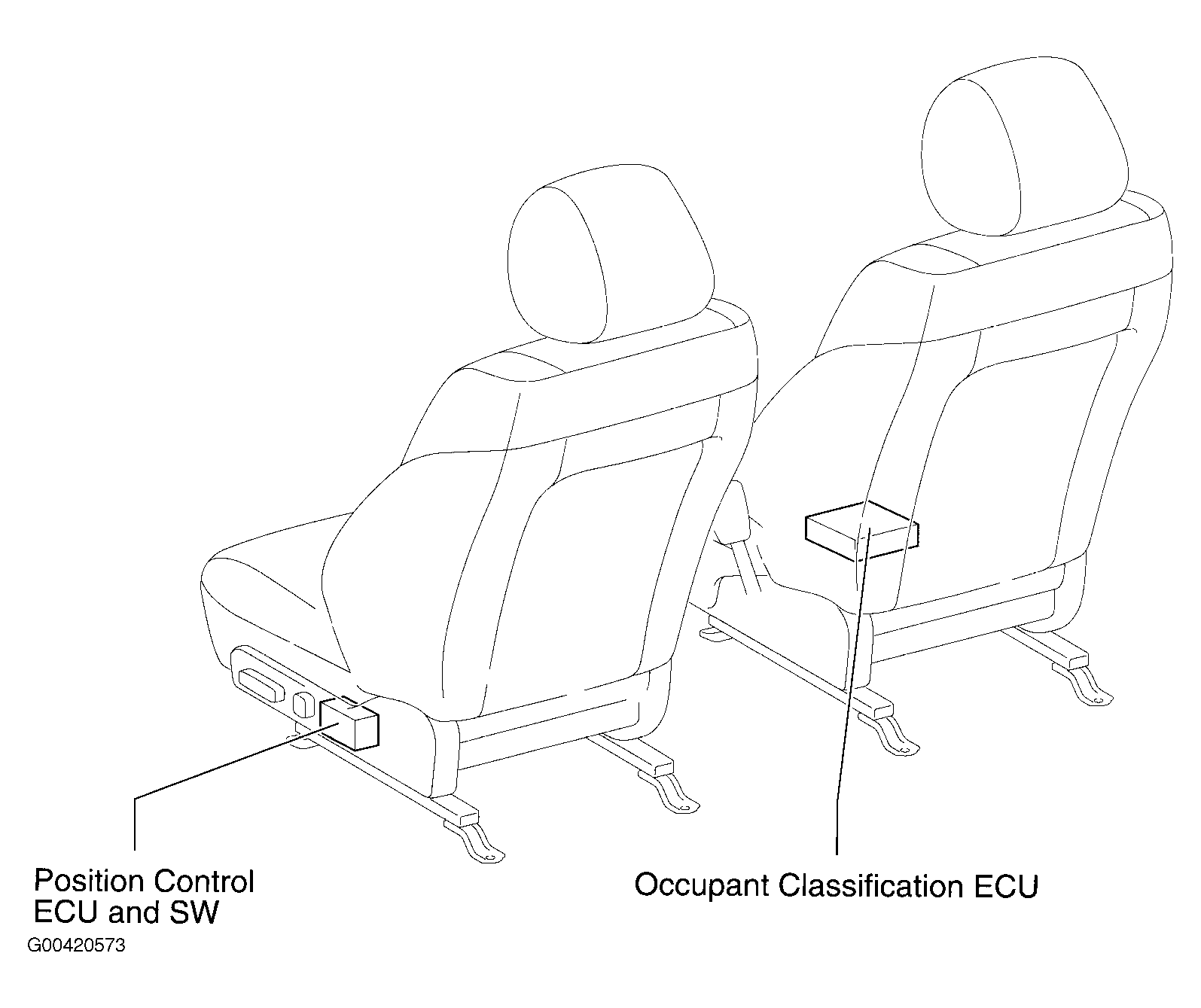

| Occupant Classification ECU | Under front passenger's seat. See Figure. |
| Position Control ECU & SW | Under driver's seat. See Figure. |
| Rear Seat Audio Controller | Top center of roof. See Figure. |

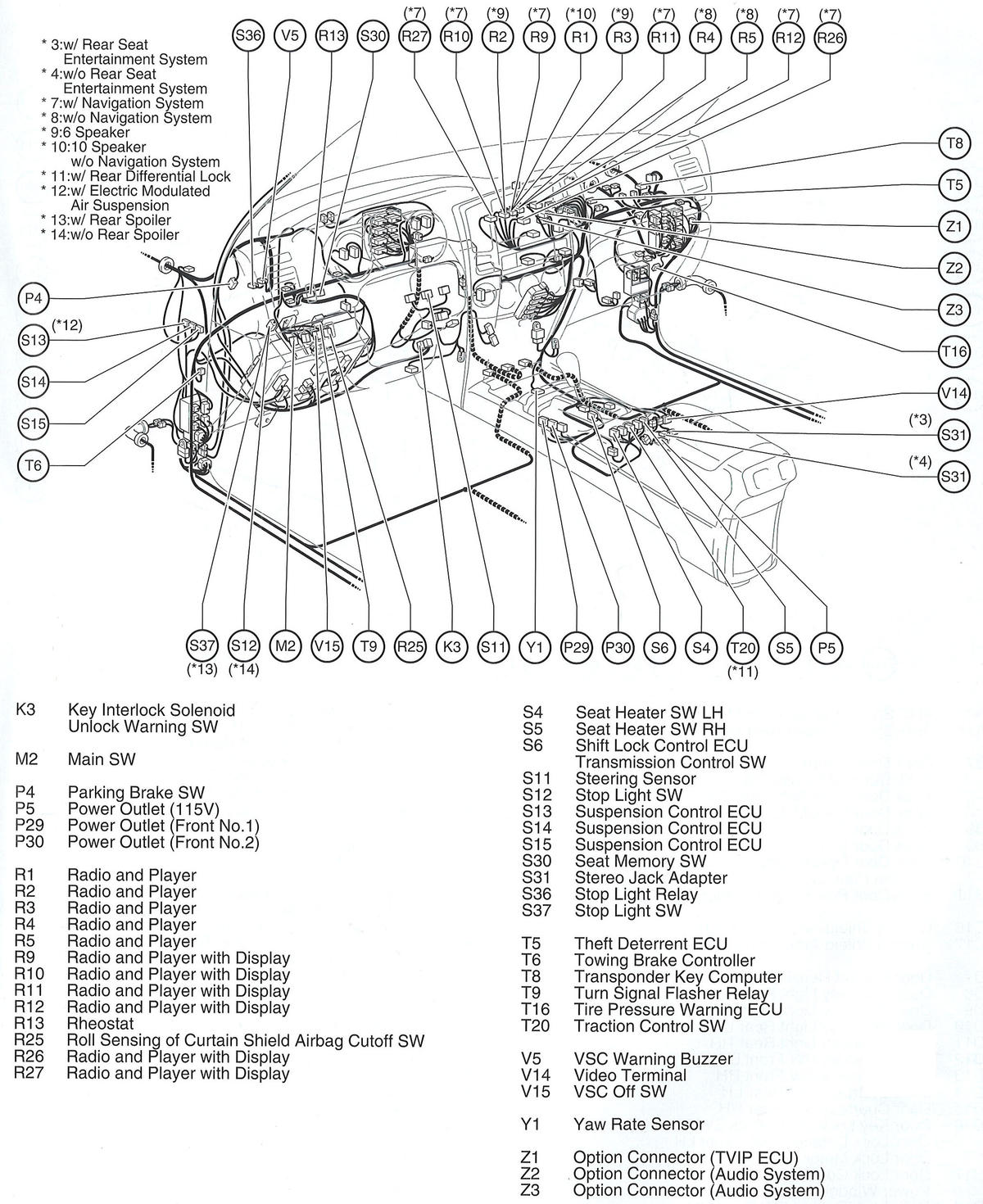

| Shift Lock Control ECU | Under center console. See Figure. |
| Skid Control ECU & Actuator | Left rear of engine compartment. See Figure. |
| Suspension Control ECU | Left end of dash. See Figure. |
| Theft Deterrent ECU | Right side of dash. See Figure. |
| Tire Pressure Monitor ECU | Right side of dash. See Figure. |
| Tire Pressure Warning Antenna & Receiver | Top center rear of roof. See Figure. |
| Towing Brake Controller | Left end of dash. See Figure. |
| Transponder Key Computer | Right side of dash. See Figure. |
| 4WD Control ECU | Right end of dash. See Figure. |
| 4WD Control ECU (Rear Differential Lock) | Left end of dash. See Figure. |
