Multiplex Communication System (BEAN): Notes

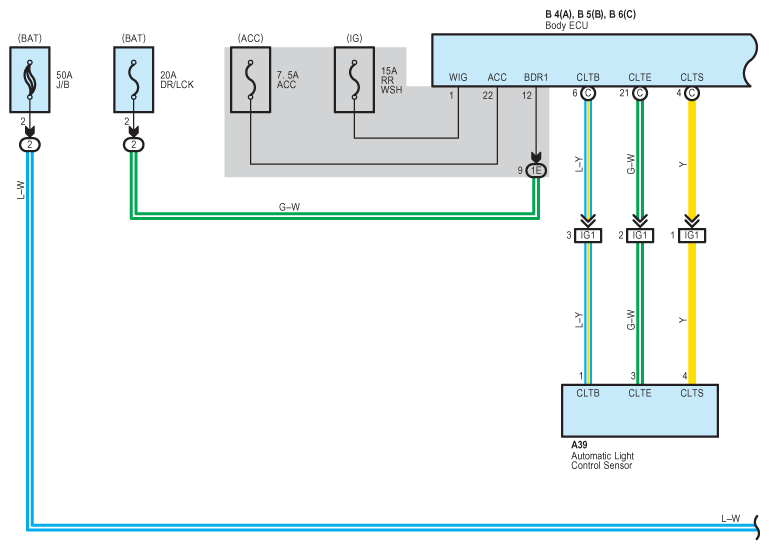

Fig 1: Multiplex Communication System (BEAN) - Circuit Diagram (1 Of 22)

G07601360

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

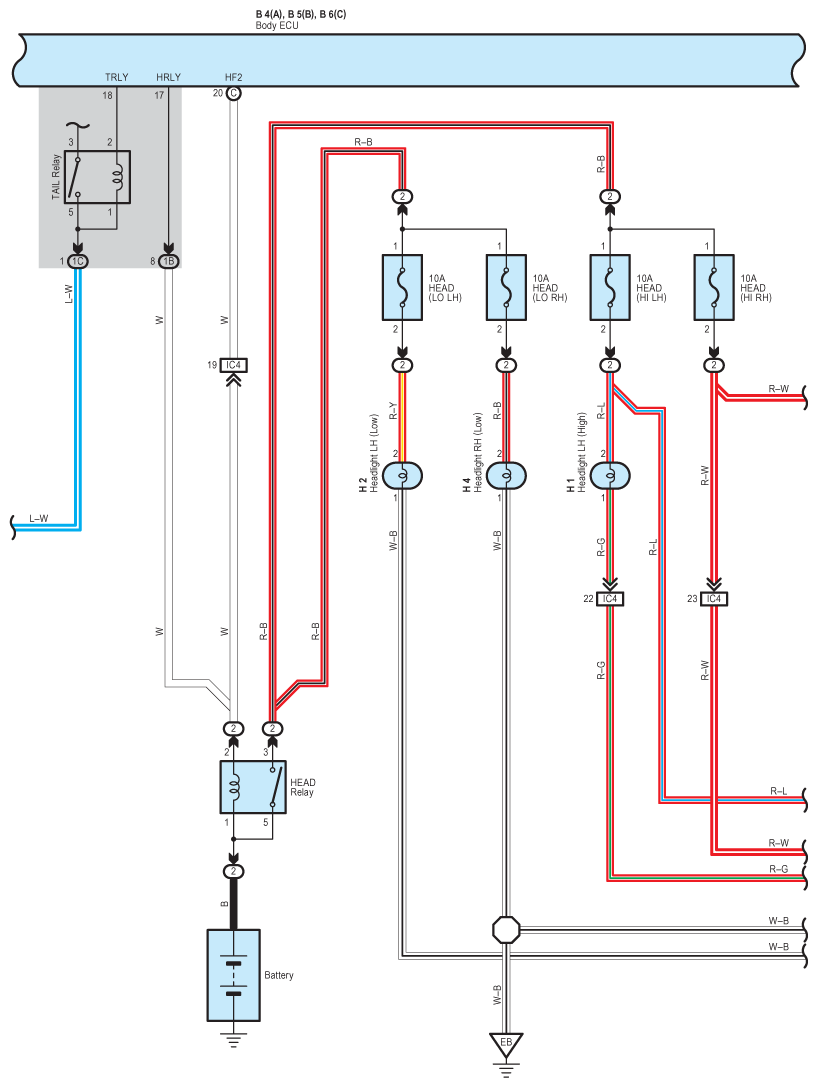

Fig 2: Multiplex Communication System (BEAN) - Circuit Diagram (2 Of 22)

G07601361

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

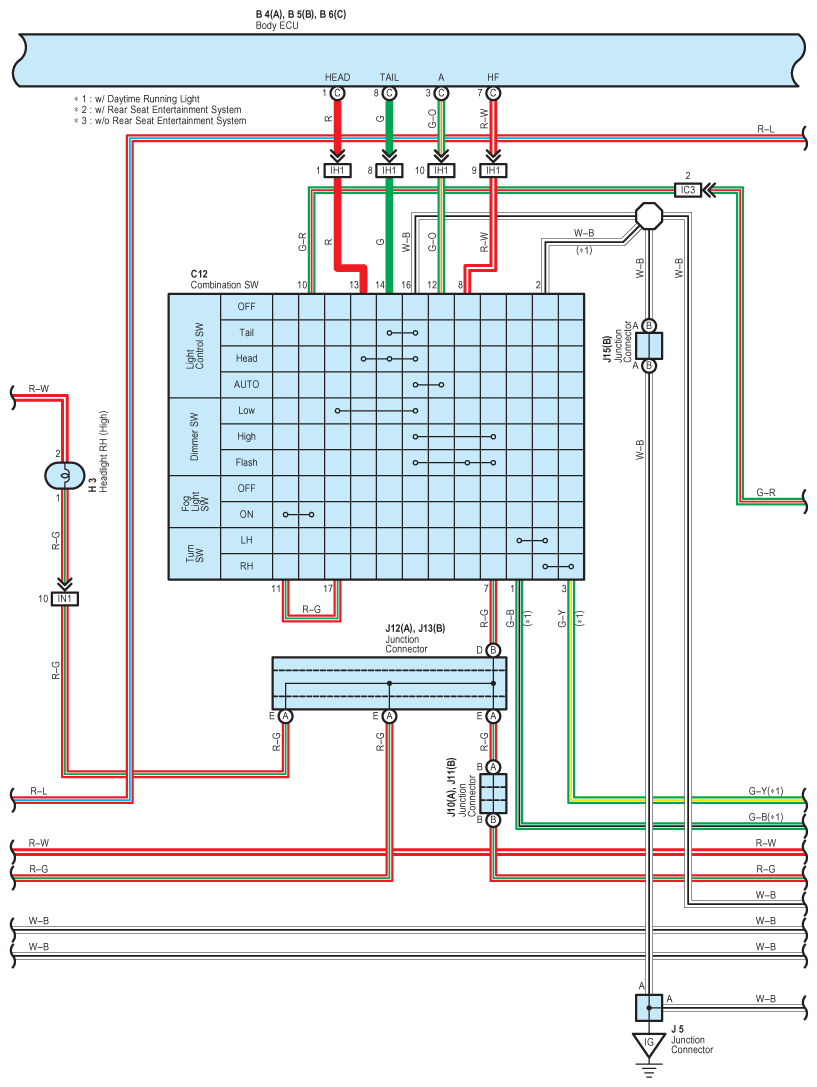

Fig 3: Multiplex Communication System (BEAN) - Circuit Diagram (3 Of 22)

G07601362

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

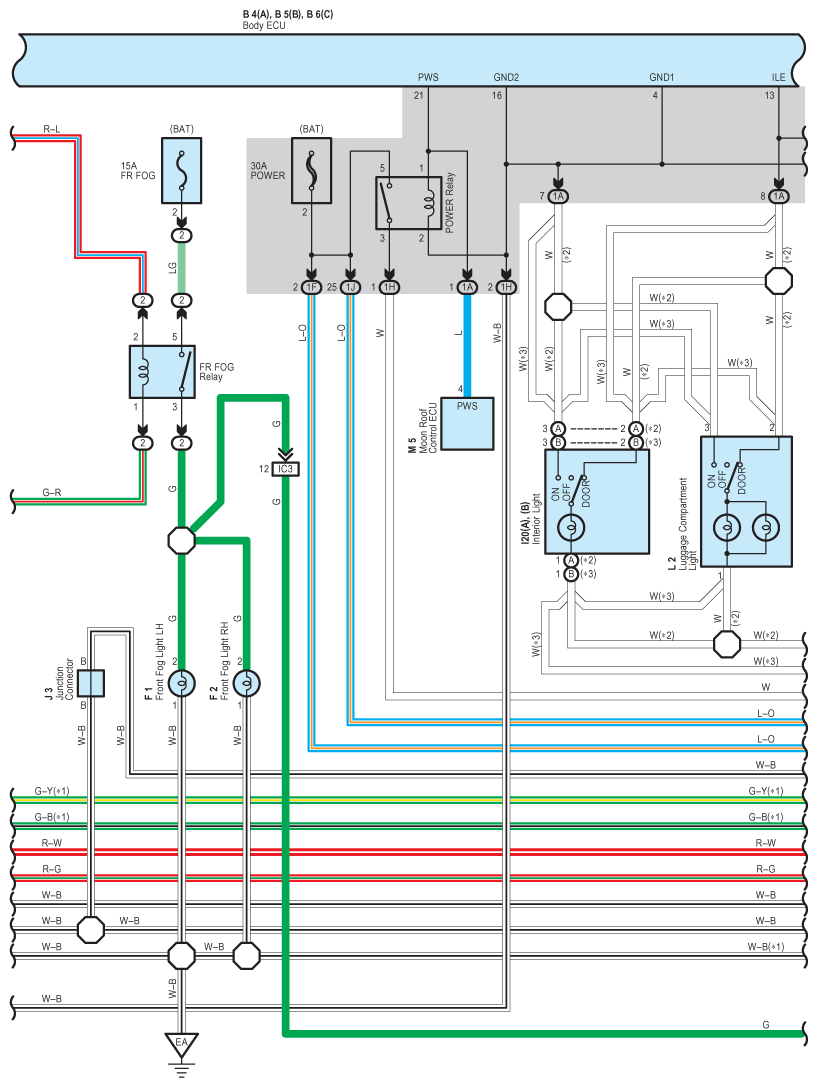

Fig 4: Multiplex Communication System (BEAN) - Circuit Diagram (4 Of 22)

G07601363

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

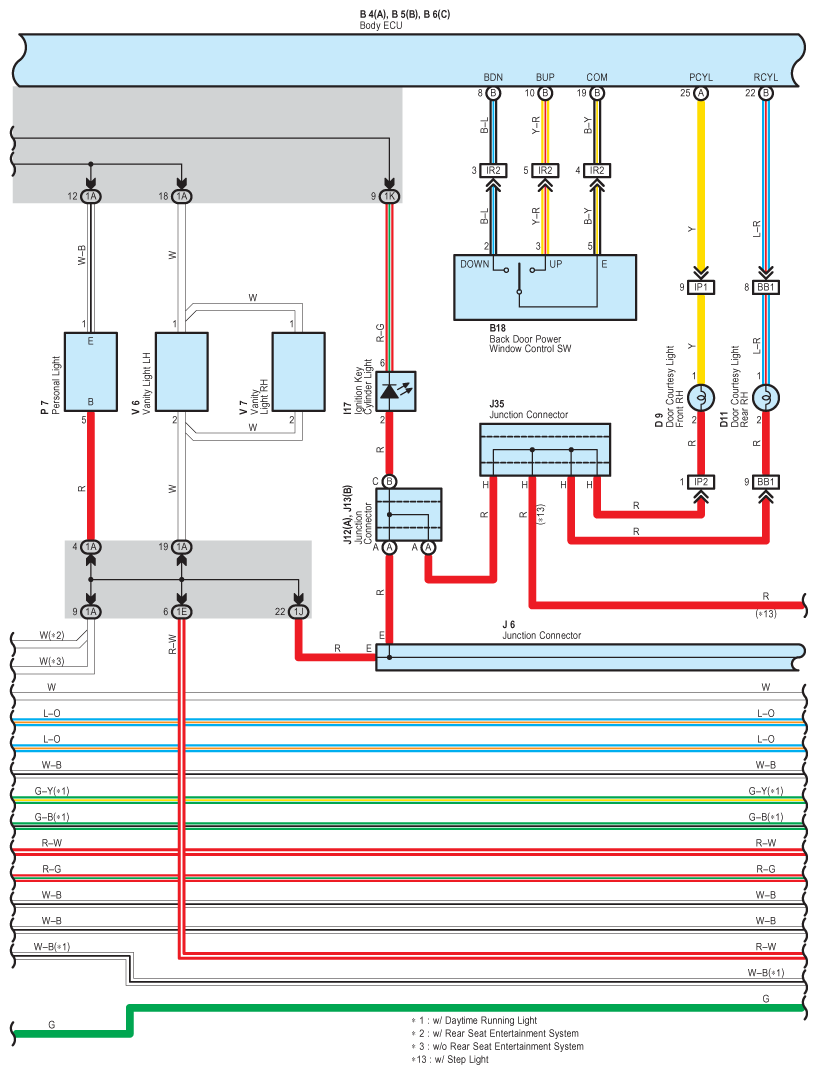

Fig 5: Multiplex Communication System (BEAN) - Circuit Diagram (5 Of 22)

G07601364

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

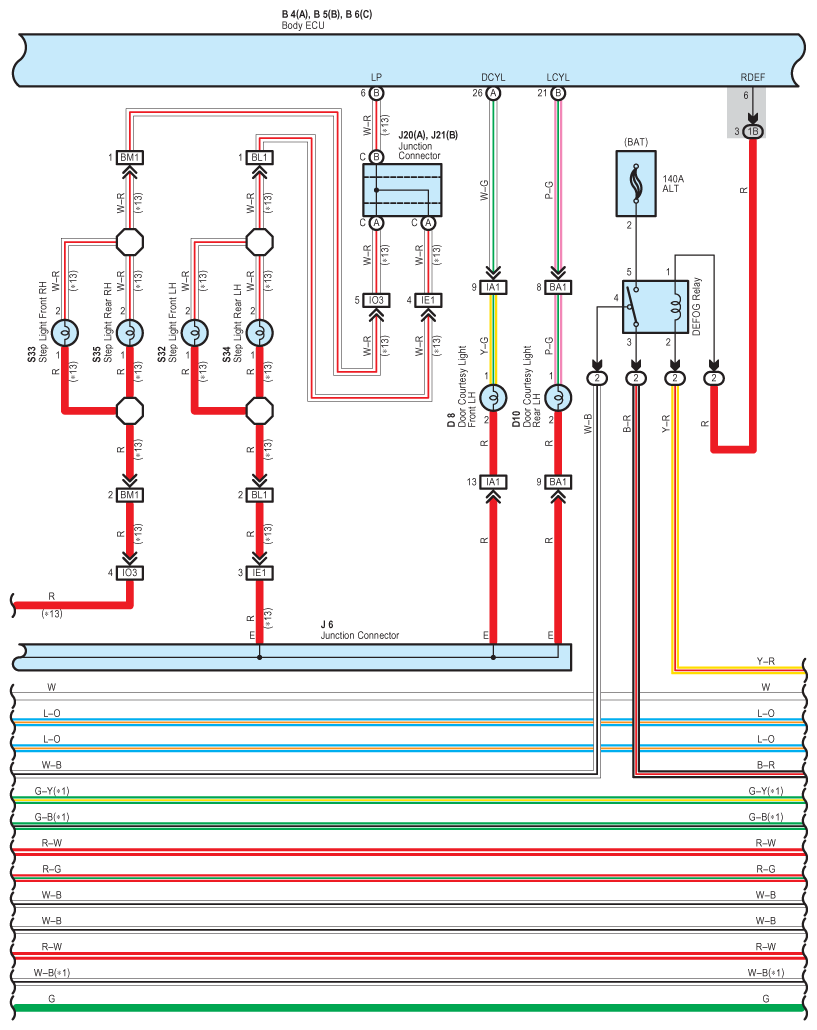

Fig 6: Multiplex Communication System (BEAN) - Circuit Diagram (6 Of 22)

G07601365

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

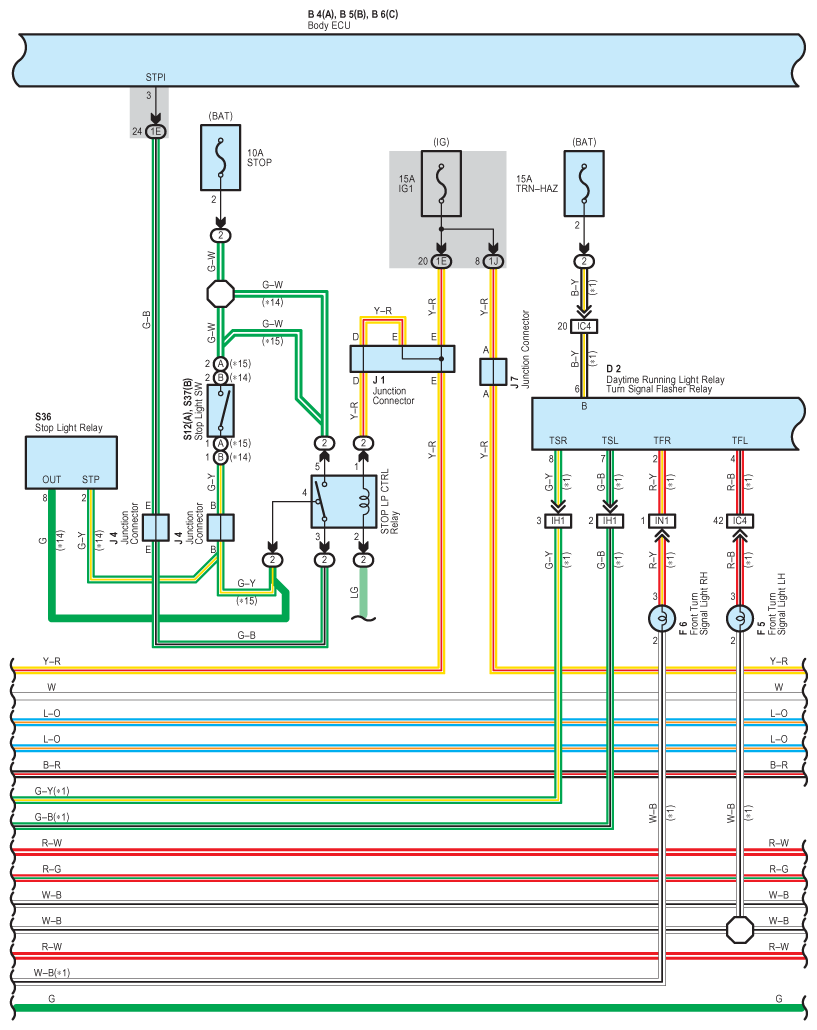

Fig 7: Multiplex Communication System (BEAN) - Circuit Diagram (7 Of 22)

G07601366

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

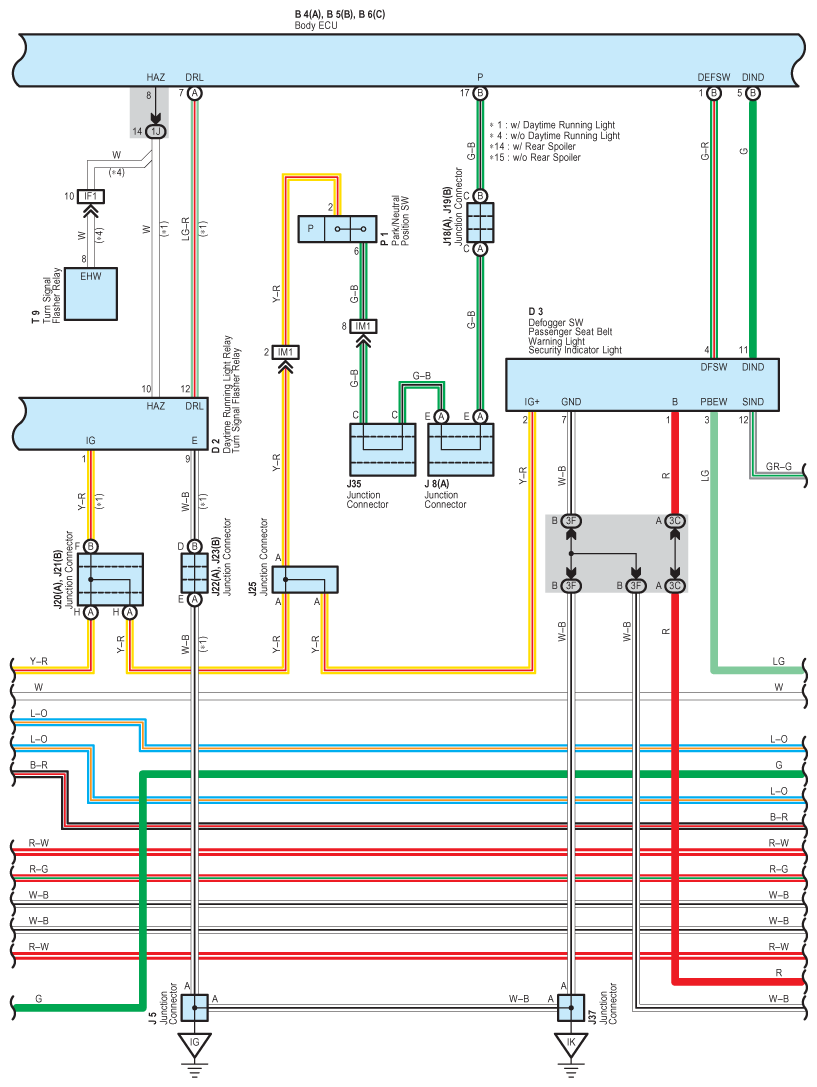

Fig 8: Multiplex Communication System (BEAN) - Circuit Diagram (8 Of 22)

G07601367

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

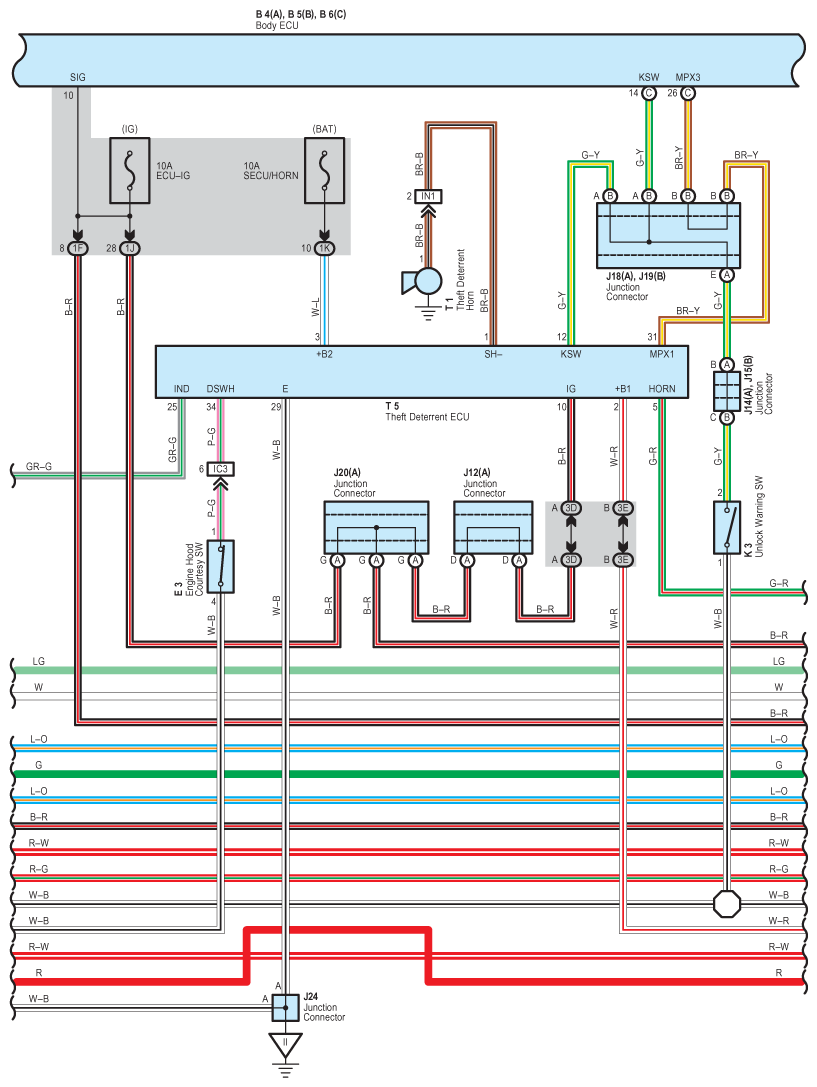

Fig 9: Multiplex Communication System (BEAN) - Circuit Diagram (9 Of 22)

G07601368

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

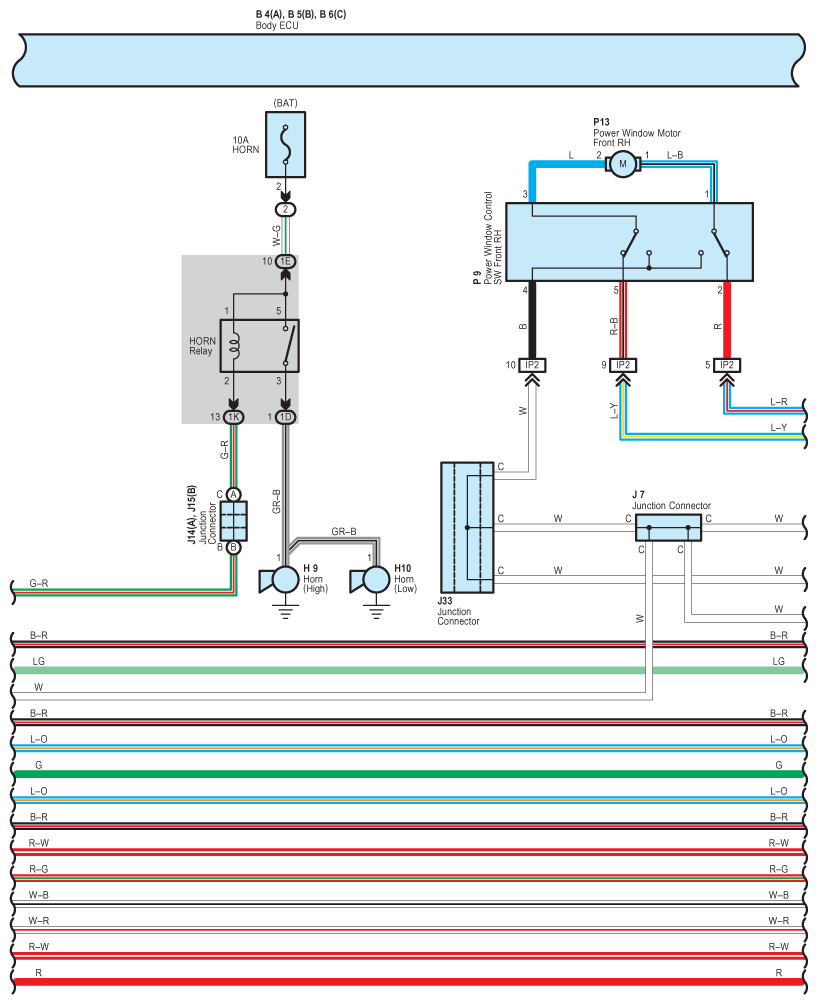

Fig 10: Multiplex Communication System (BEAN) - Circuit Diagram (10 Of 22)

G07601369

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

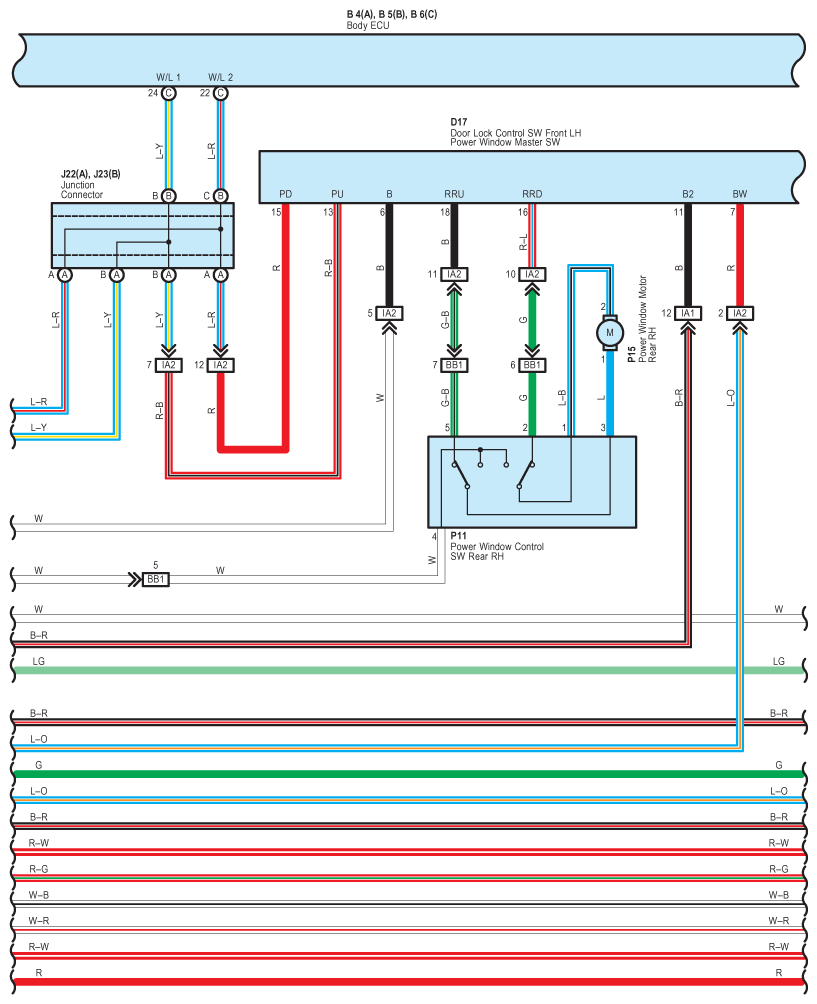

Fig 11: Multiplex Communication System (BEAN) - Circuit Diagram (11 Of 22)

G07601370

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

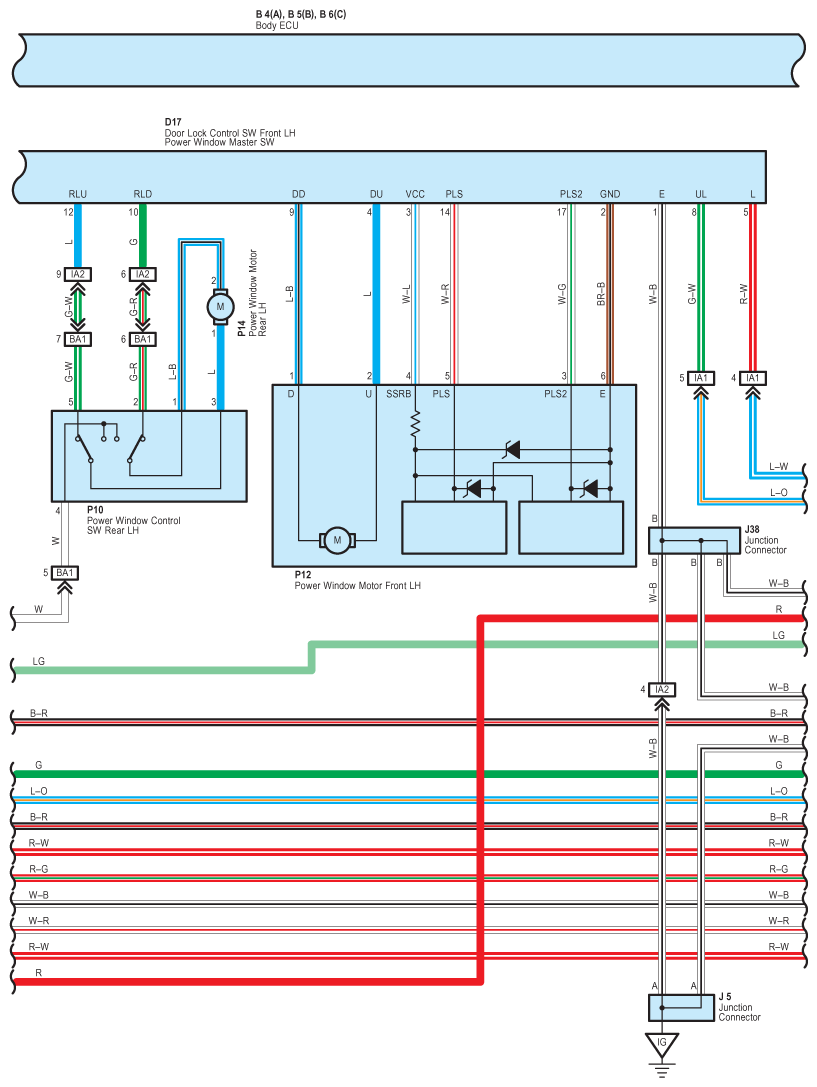

Fig 12: Multiplex Communication System (BEAN) - Circuit Diagram (12 Of 22)

G07601371

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

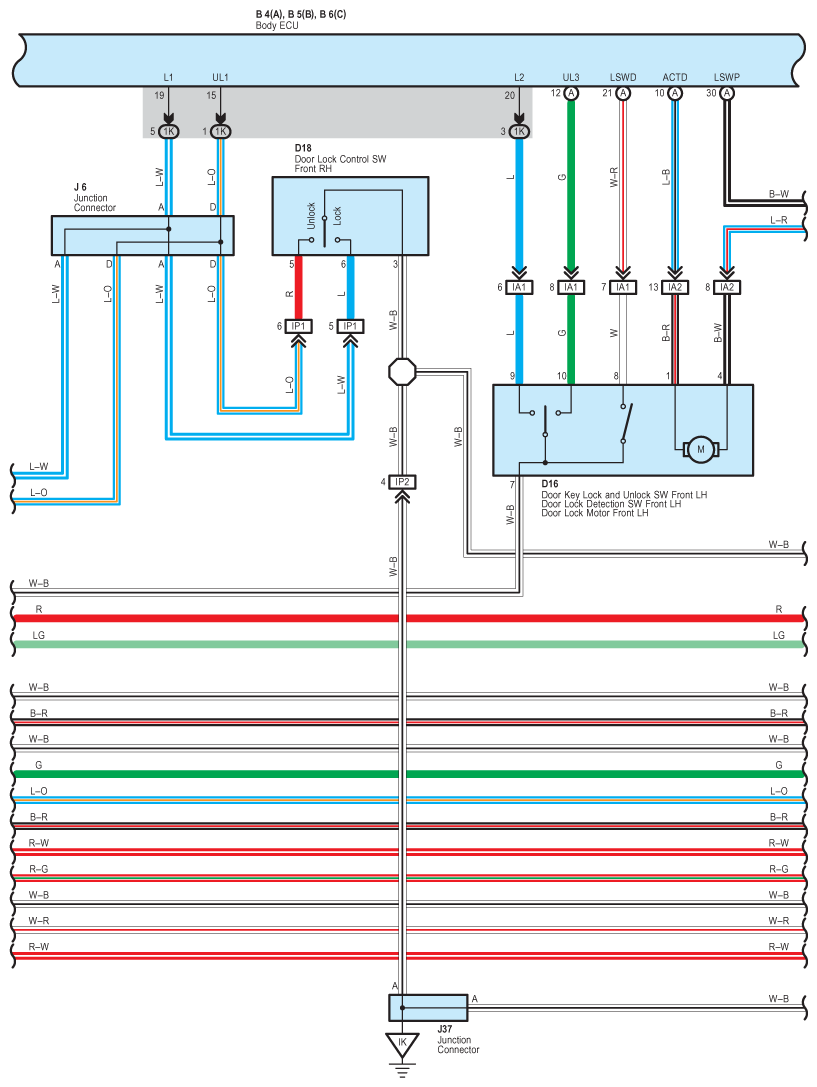

Fig 13: Multiplex Communication System (BEAN) - Circuit Diagram (13 Of 22)

G07601372

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

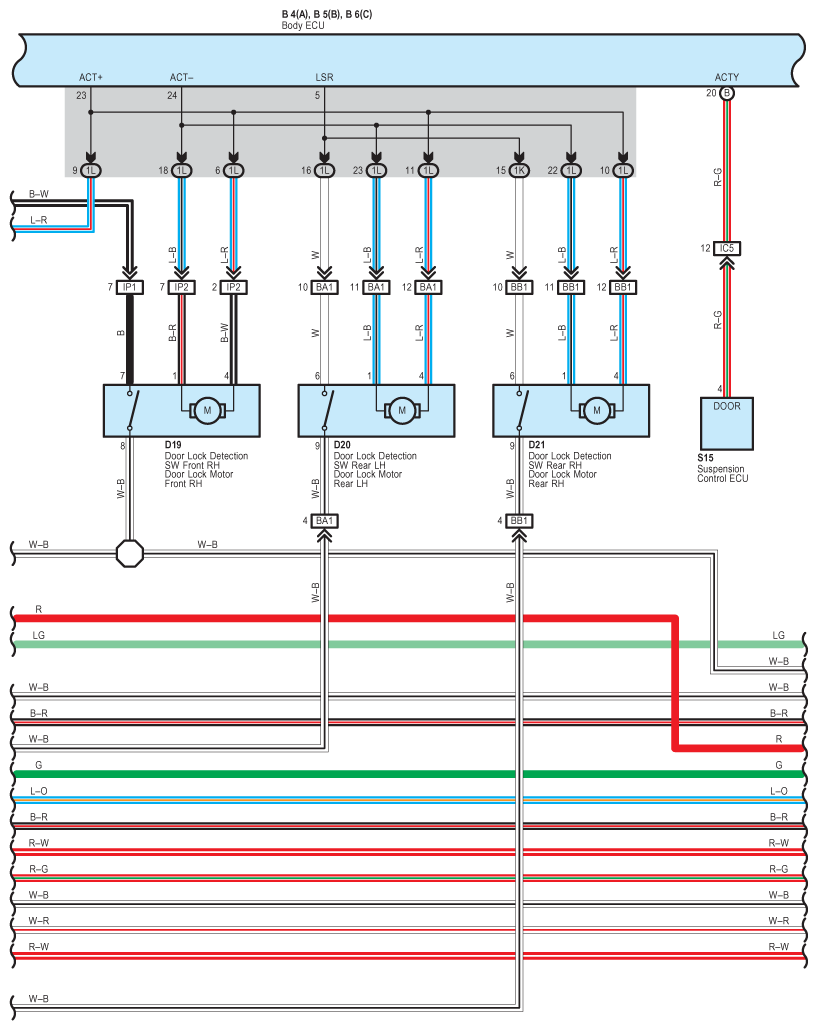

Fig 14: Multiplex Communication System (BEAN) - Circuit Diagram (14 Of 22)

G07601373

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

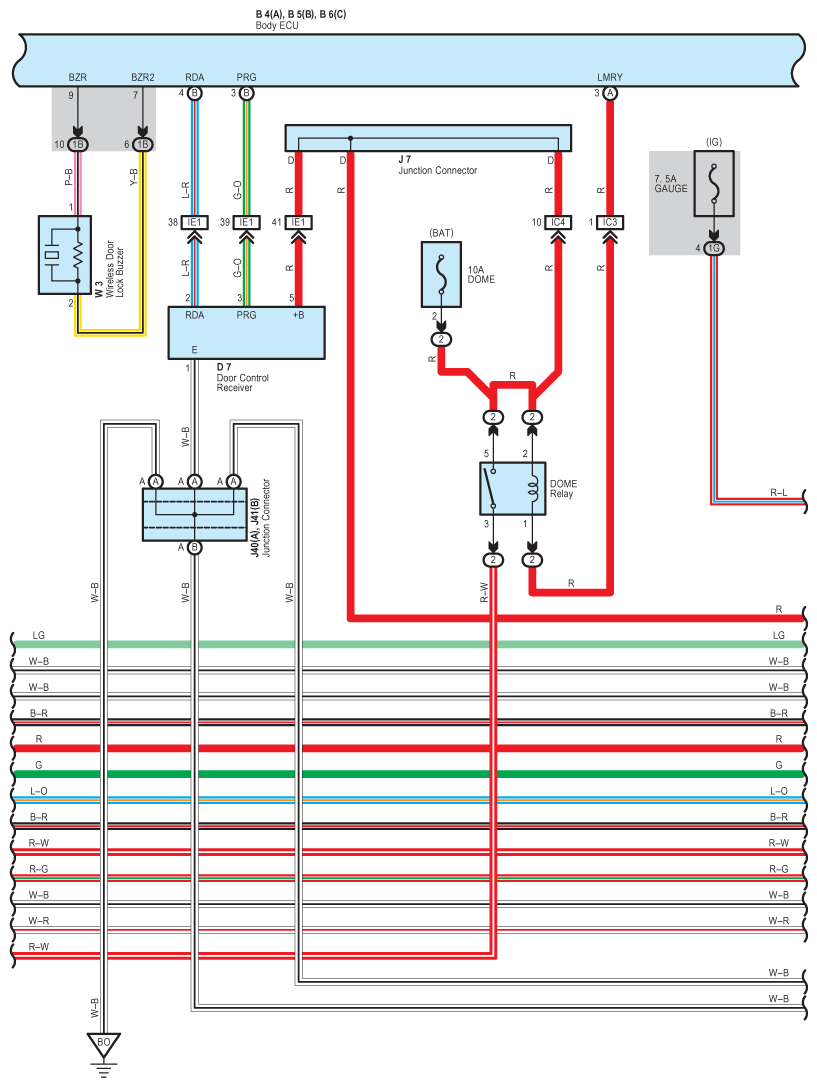

Fig 15: Multiplex Communication System (BEAN) - Circuit Diagram (15 Of 22)

G07601374

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

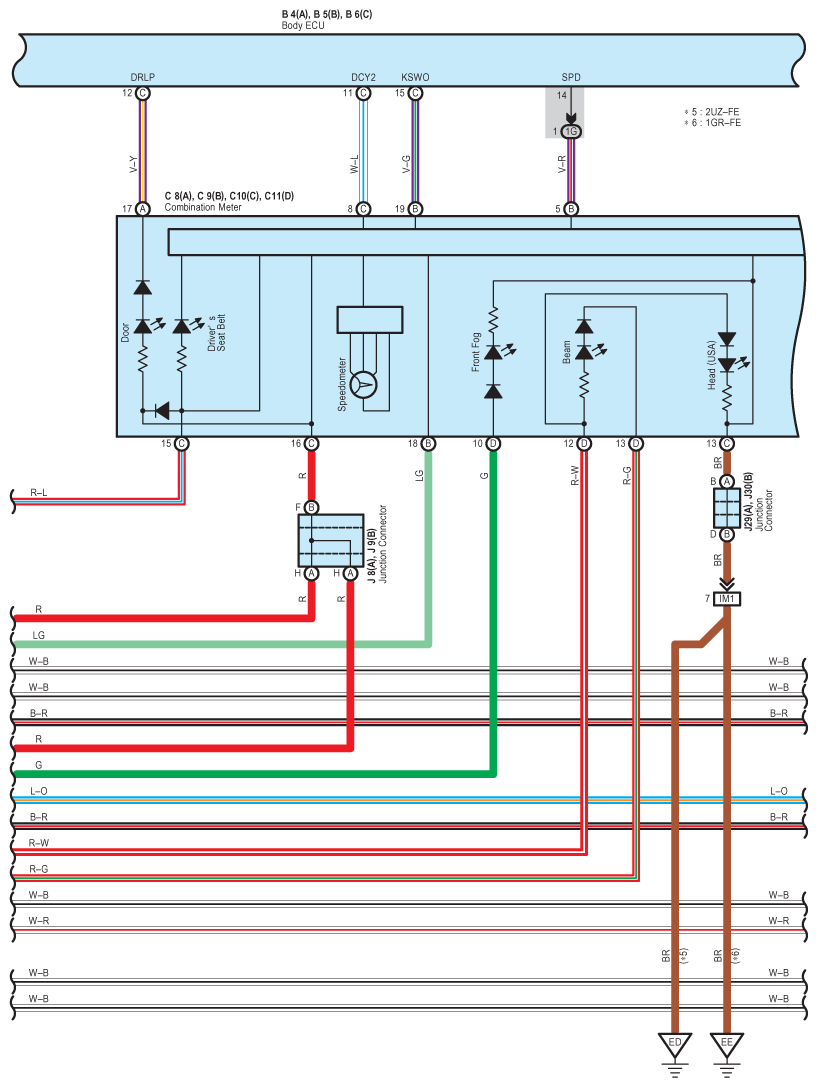

Fig 16: Multiplex Communication System (BEAN) - Circuit Diagram (16 Of 22)

G07601375

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

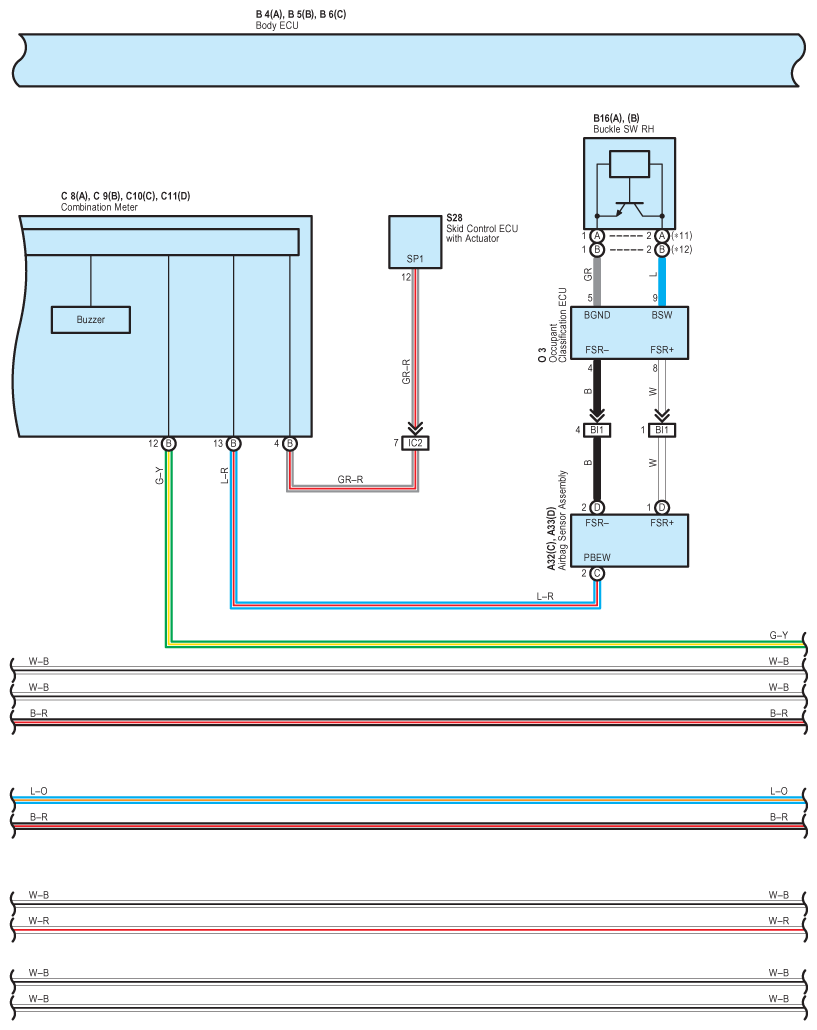

Fig 17: Multiplex Communication System (BEAN) - Circuit Diagram (17 Of 22)

G07601376

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

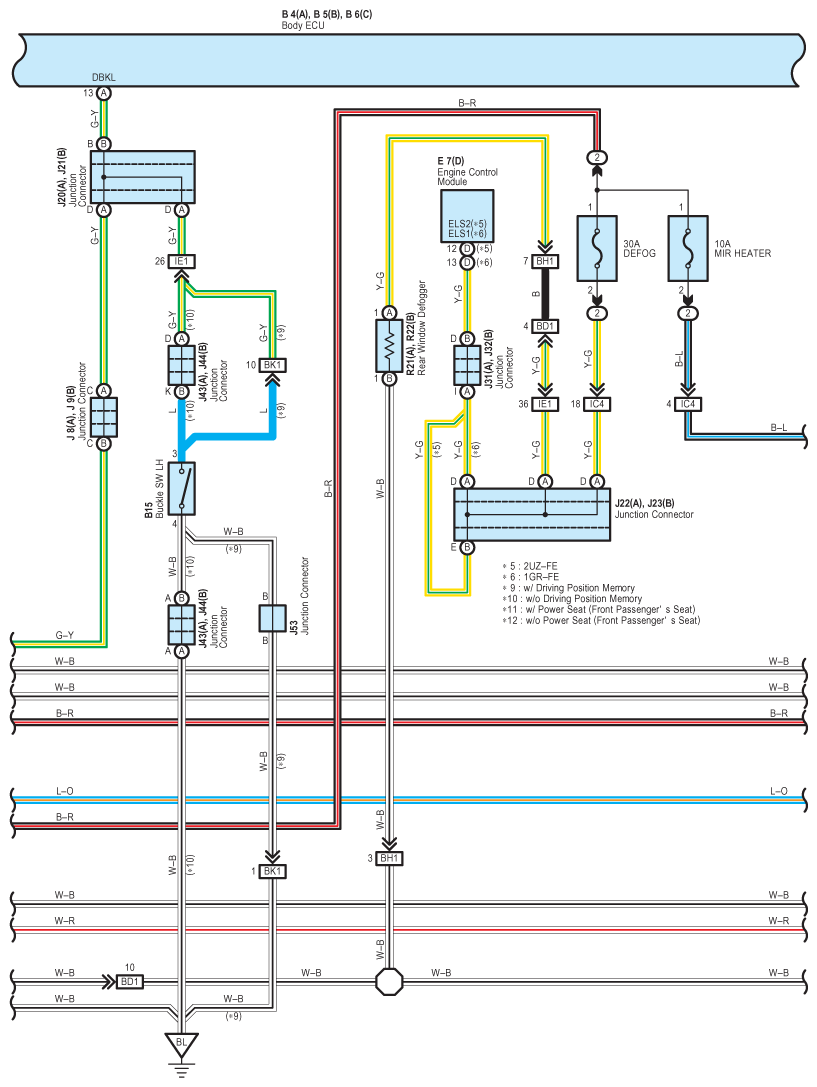

Fig 18: Multiplex Communication System (BEAN) - Circuit Diagram (18 Of 22)

G07601377

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

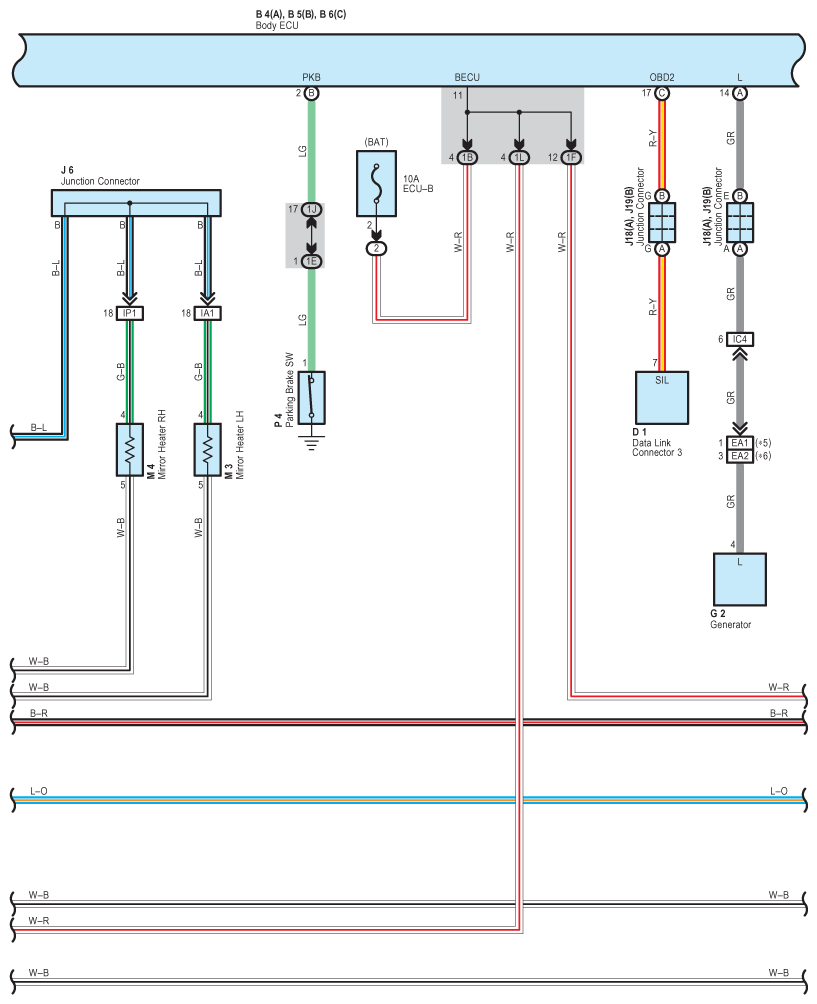

Fig 19: Multiplex Communication System (BEAN) - Circuit Diagram (19 Of 22)

G07601378

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

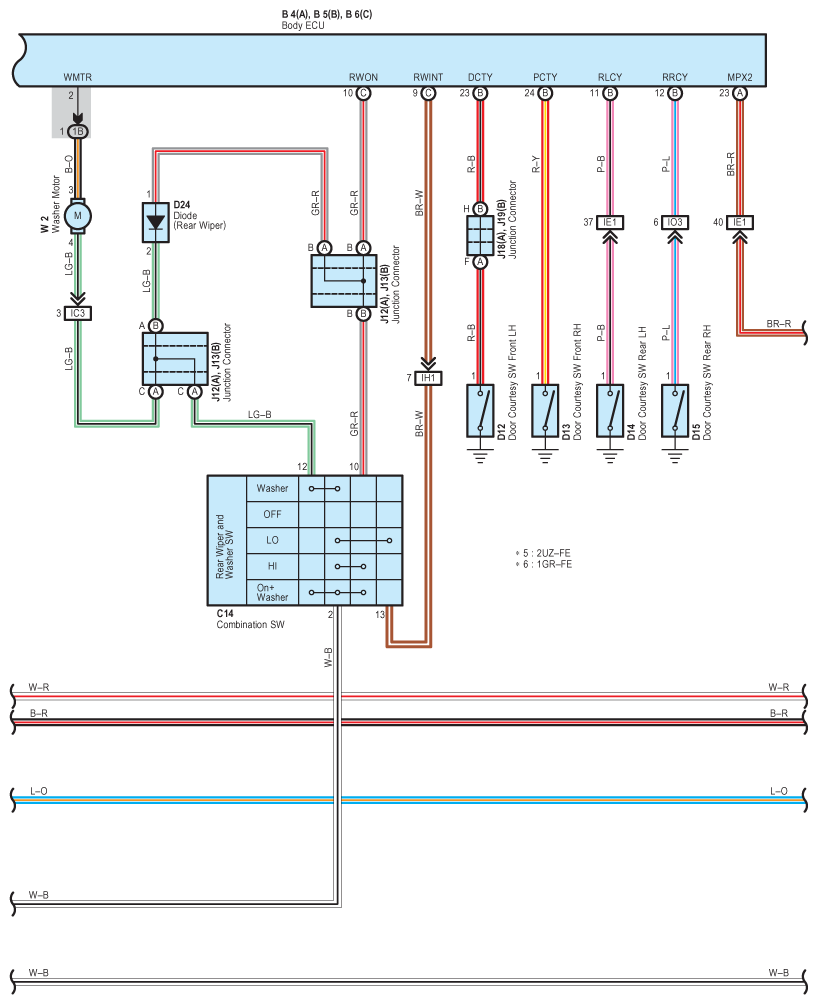

Fig 20: Multiplex Communication System (BEAN) - Circuit Diagram (20 Of 22)

G07601379

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

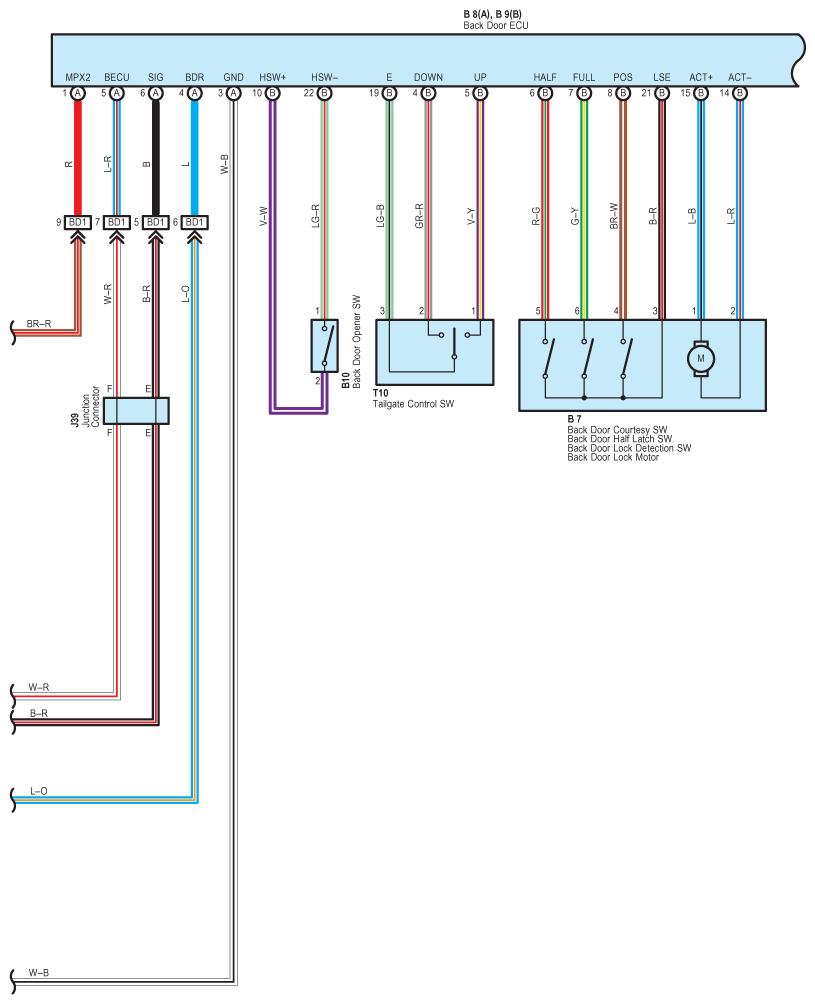

Fig 21: Multiplex Communication System (BEAN) - Circuit Diagram (21 Of 22)

G07601380

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

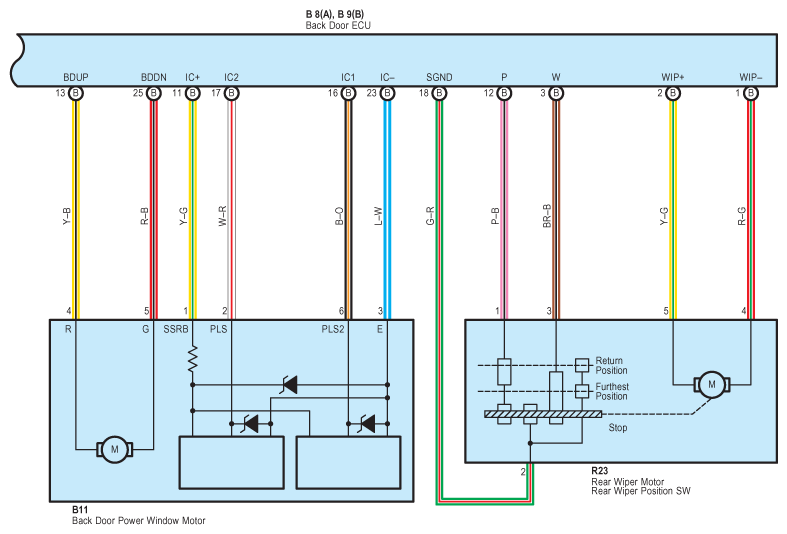

Fig 22: Multiplex Communication System (BEAN) - Circuit Diagram (22 Of 22)

G07601381

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
