Suspension System
›
Rear Shock Absorber With Coil Spring
›
Components
Rear Shock Absorber With Coil Spring: Components

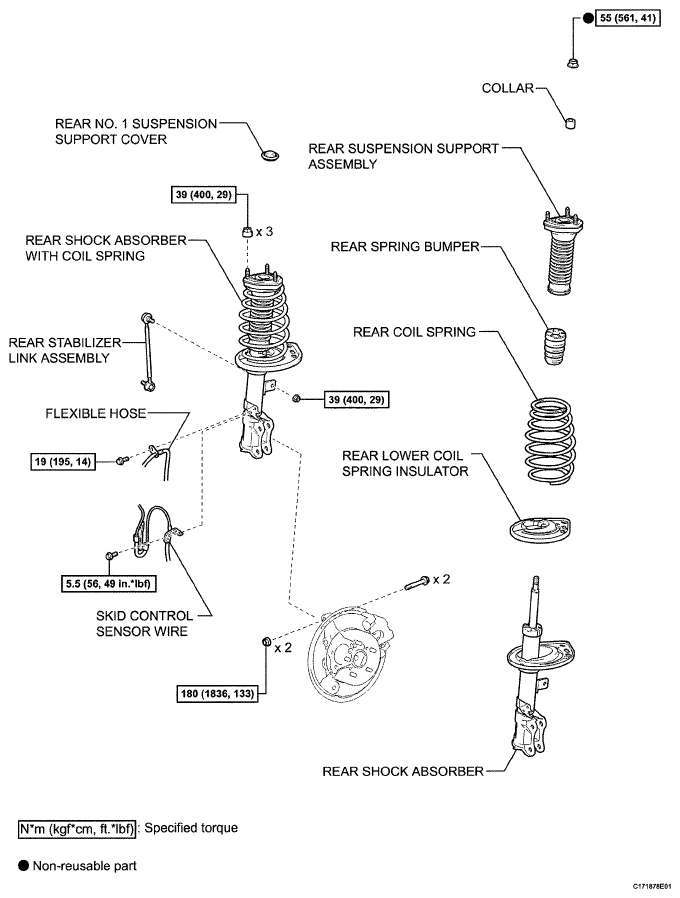

Fig 1: Identifying Rear Shock Absorber With Coil Spring Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Rear Shock Absorber With Coil Spring Components (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
