Audio System (12 Speaker): Notes

Fig 1: Audio System (12 Speaker) - Circuit Diagram (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

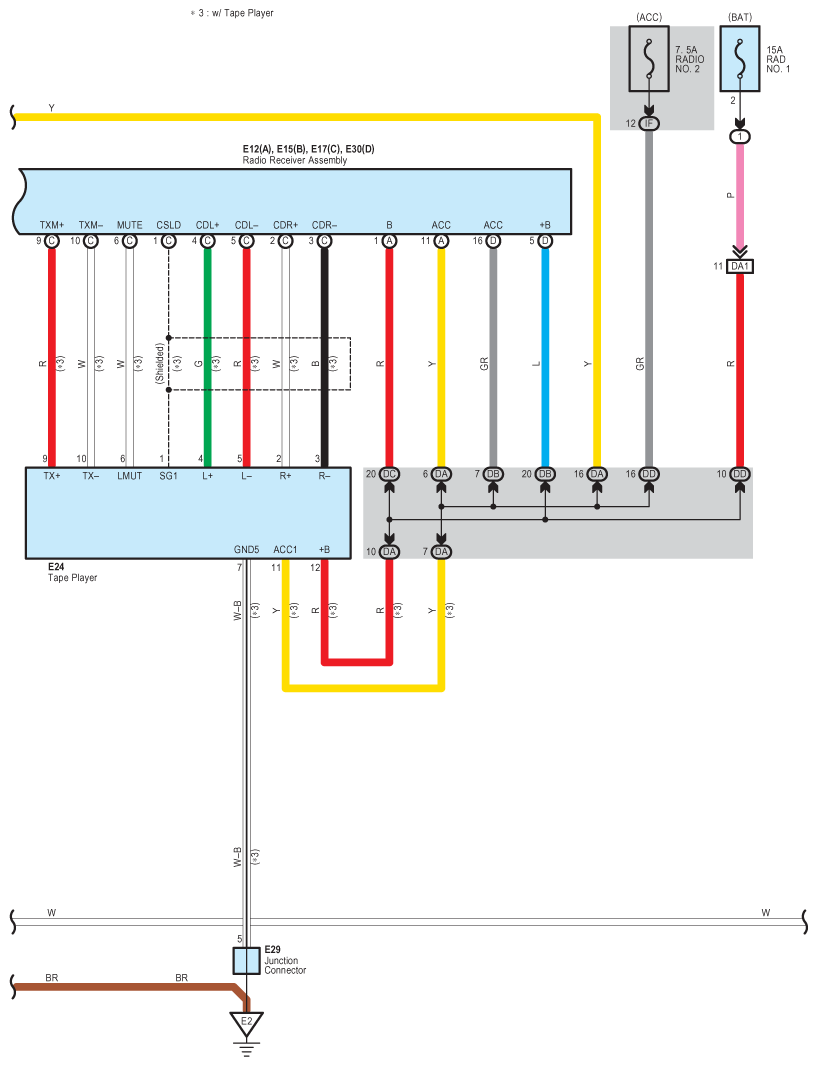

Fig 2: Audio System (12 Speaker) - Circuit Diagram (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

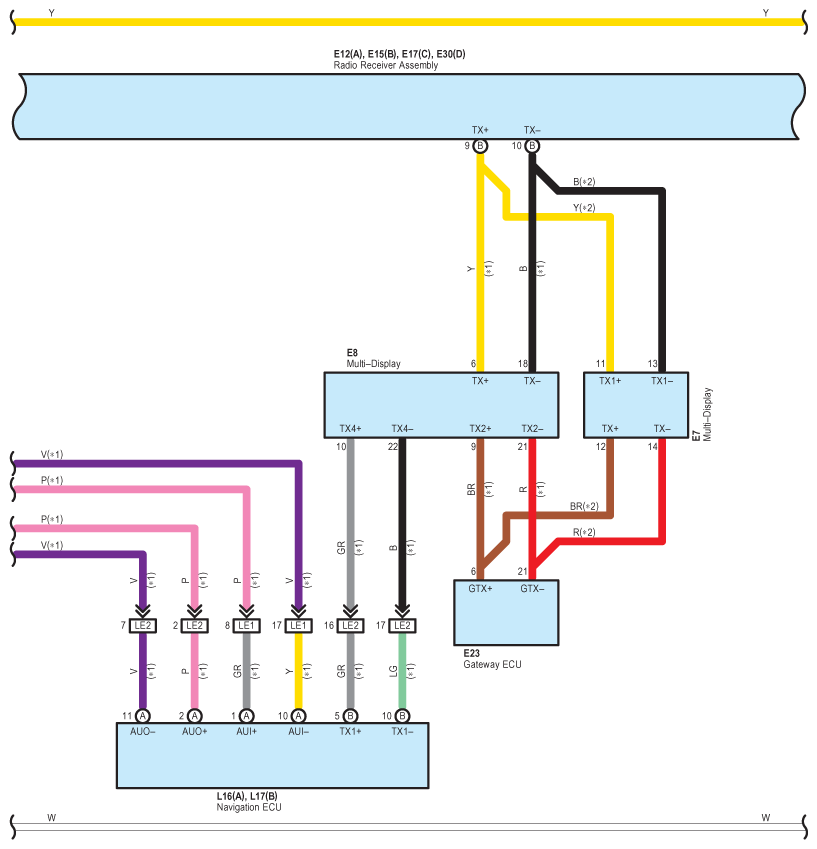

Fig 3: Audio System (12 Speaker) - Circuit Diagram (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

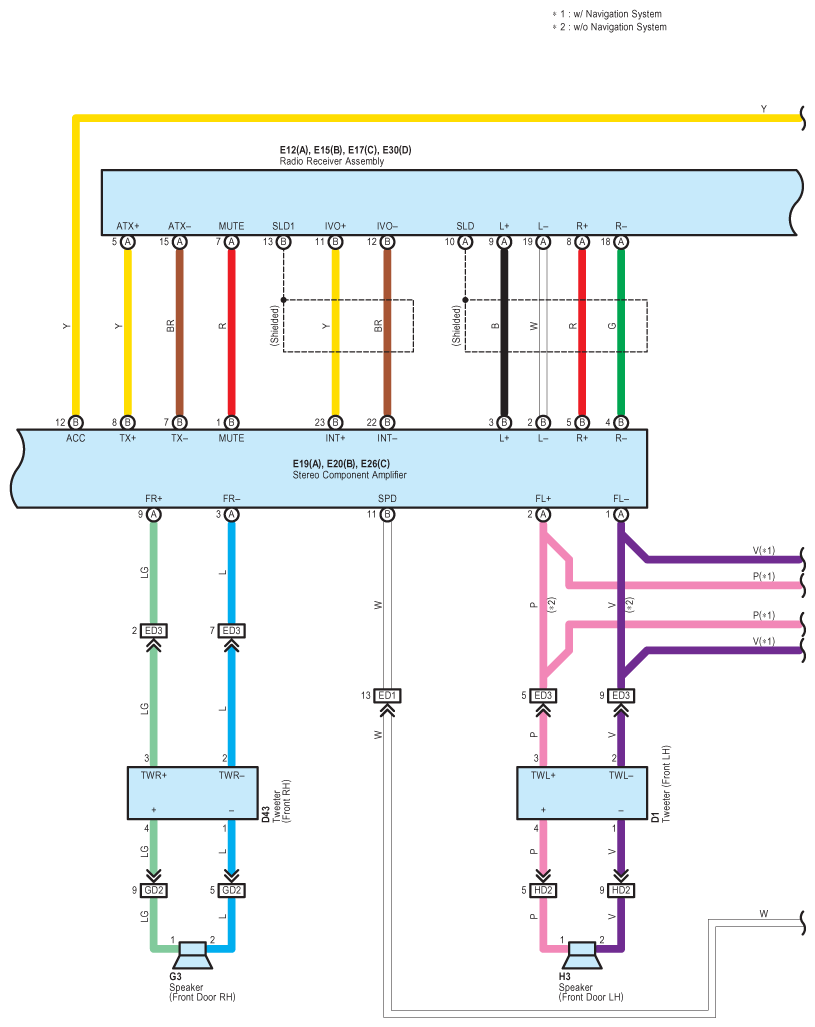

Fig 4: Audio System (12 Speaker) - Circuit Diagram (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

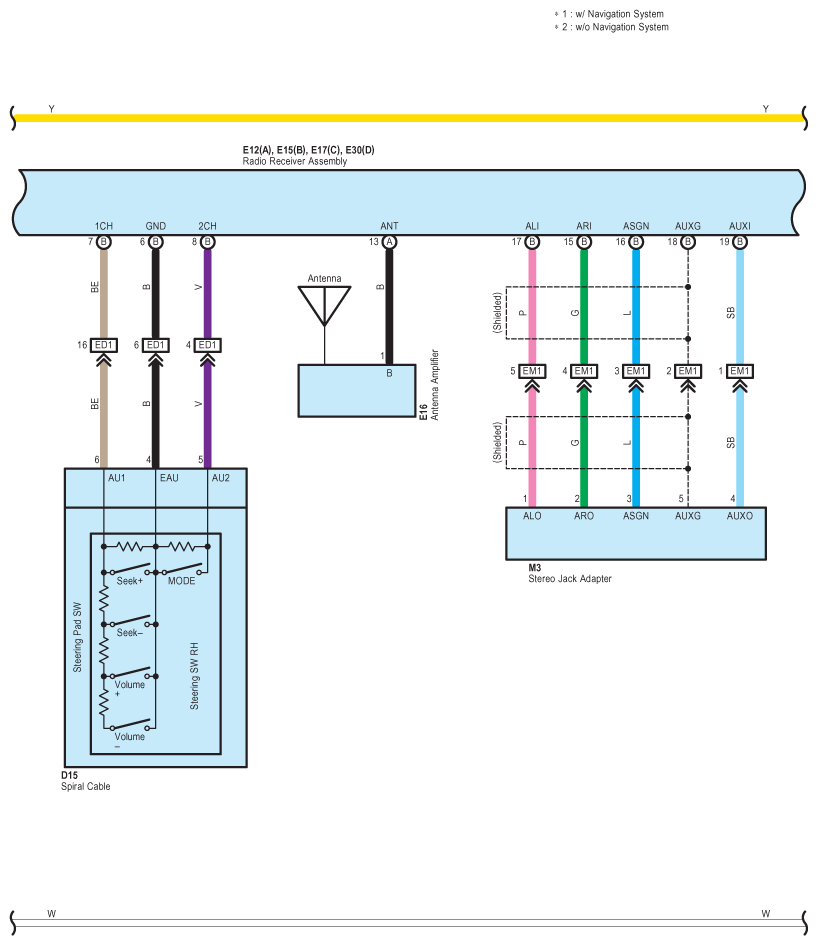

Fig 5: Audio System (12 Speaker) - Circuit Diagram (5 Of 7)

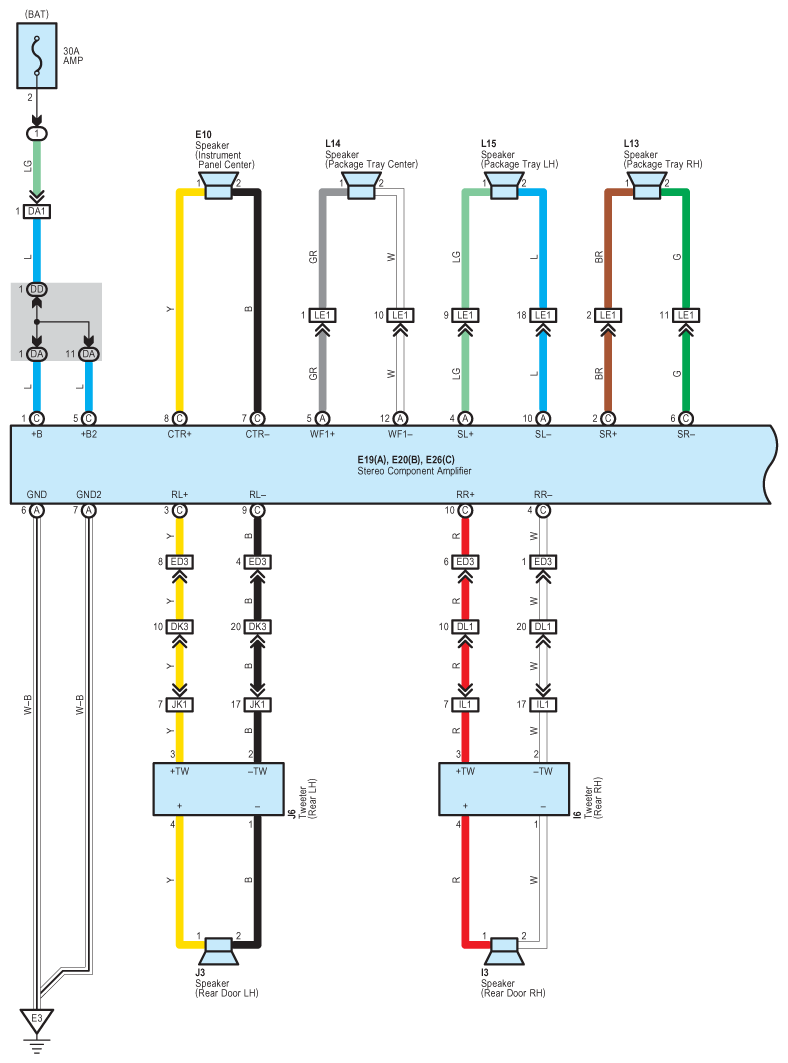

Fig 6: Audio System (12 Speaker) - Circuit Diagram (6 Of 7)

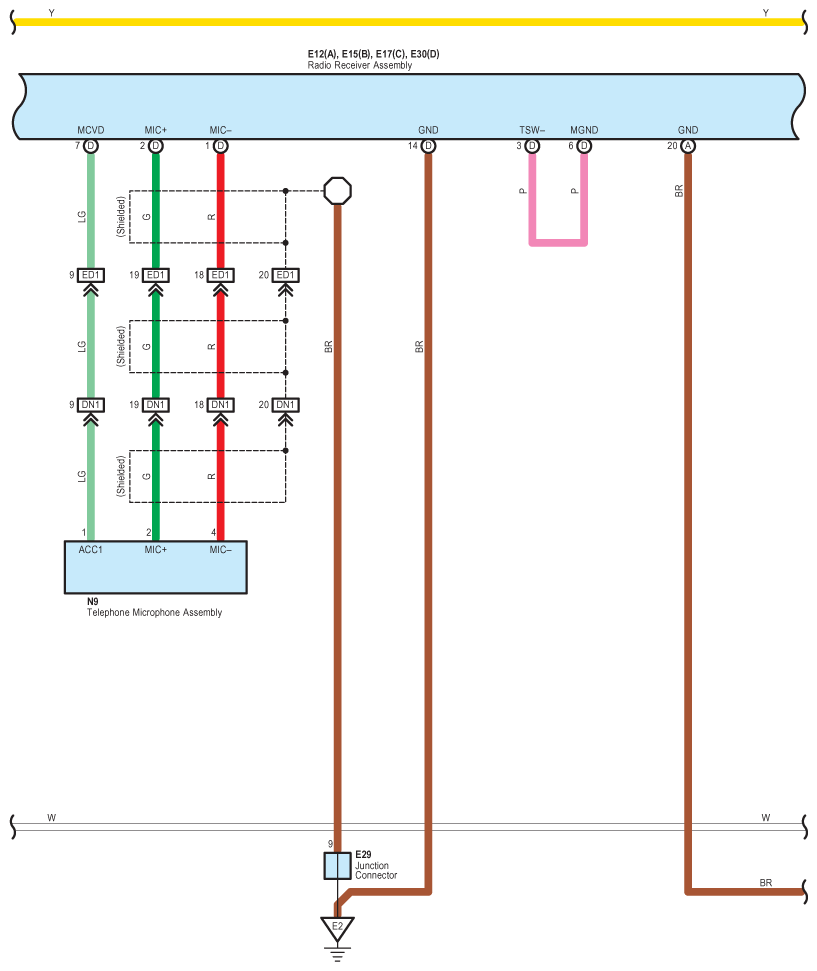

Fig 7: Audio System (12 Speaker) - Circuit Diagram (7 Of 7)
