Audio System (9 Speaker): Notes

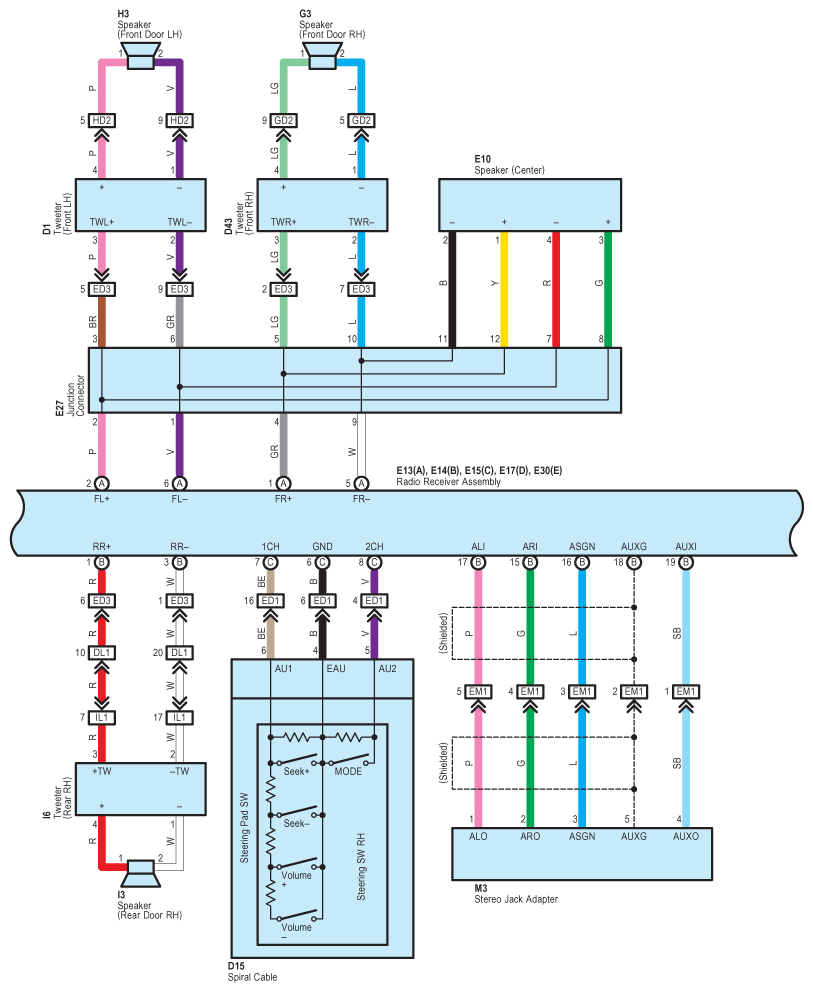

Fig 1: Audio System (9 Speaker) - Circuit Diagram (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Audio System (9 Speaker) - Circuit Diagram (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

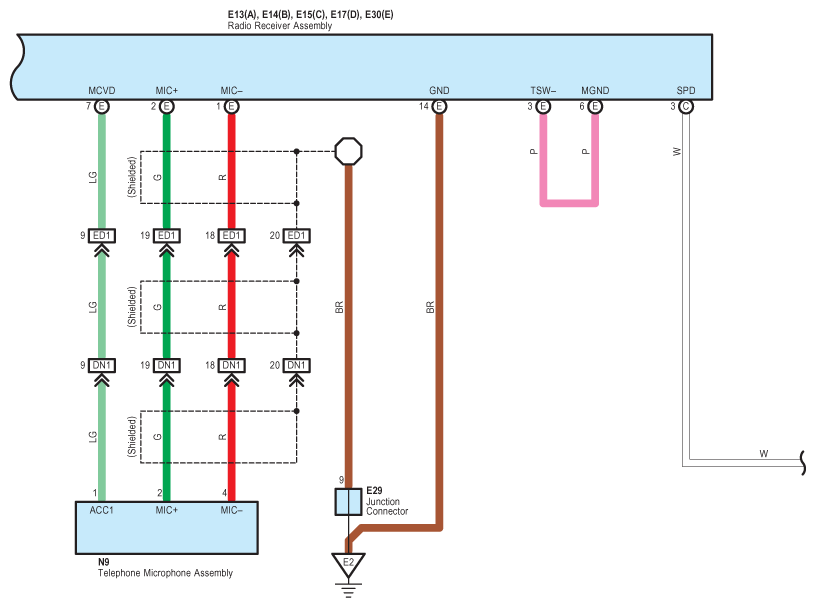

Fig 3: Audio System (9 Speaker) - Circuit Diagram (3 Of 4)

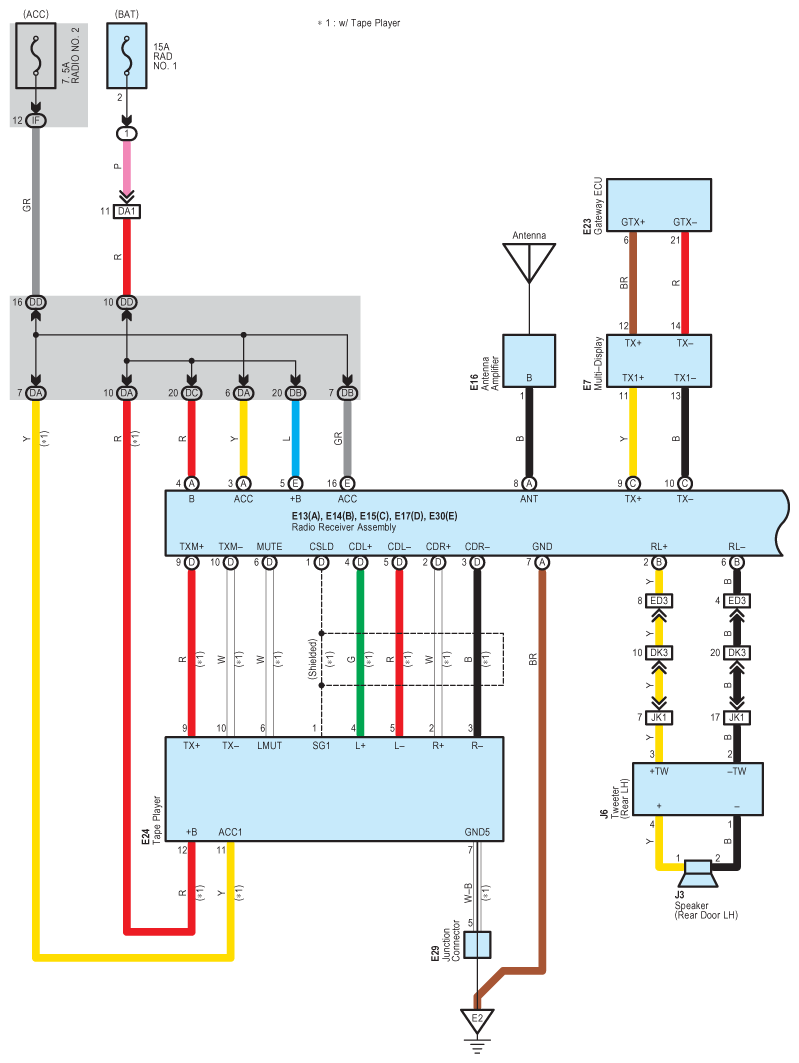

Fig 4: Audio System (9 Speaker) - Circuit Diagram (4 Of 4)
