Multi Display (w/o Navigation System): Notes

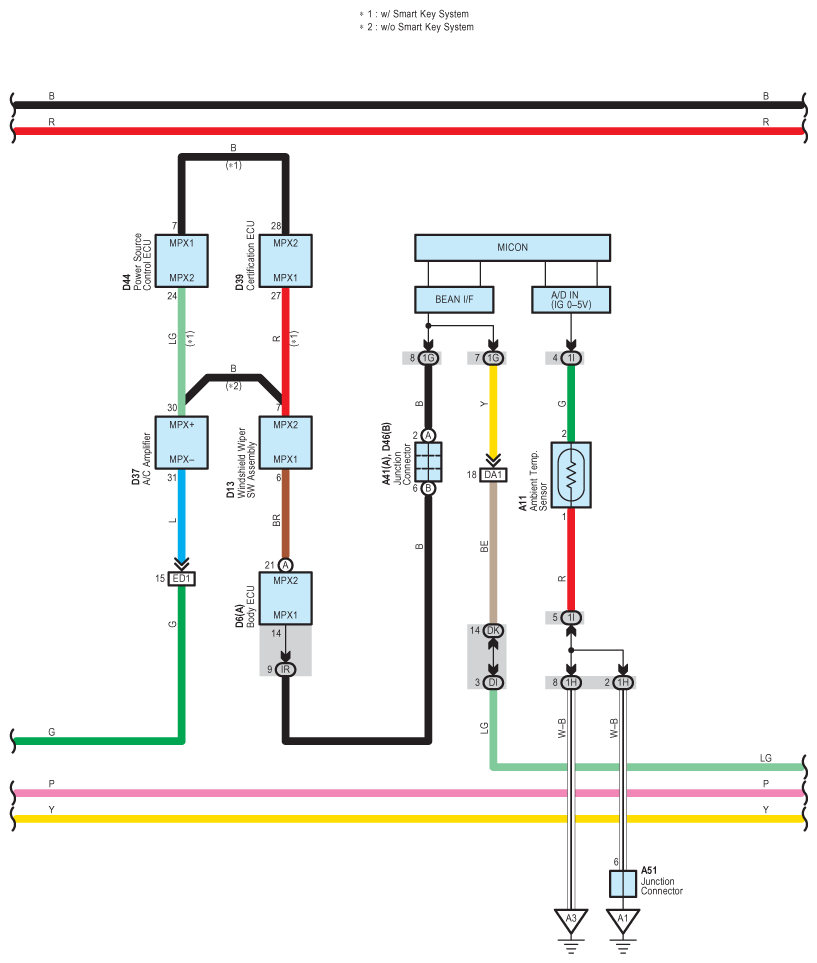

Fig 1: Multi Display (W/O Navigation System) - Circuit Diagram (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

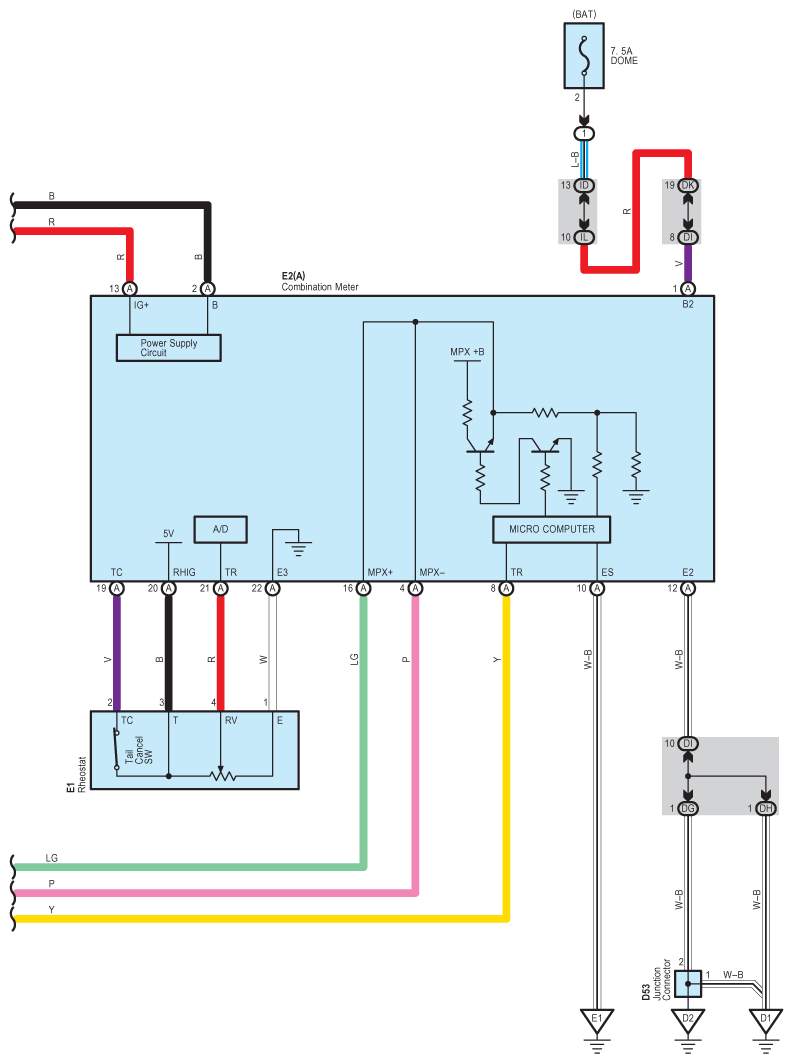

Fig 2: Multi Display (W/O Navigation System) - Circuit Diagram (2 Of 3)

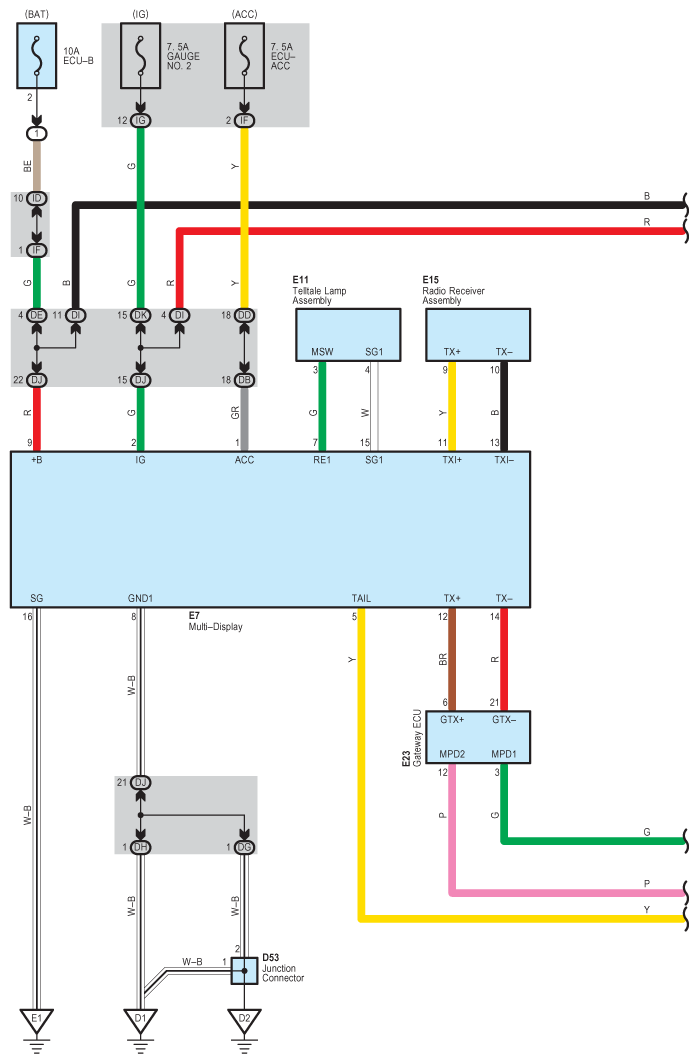

Fig 3: Multi Display (W/O Navigation System) - Circuit Diagram (3 Of 3)
