Fuel Pump Control Circuit: Wiring Diagram

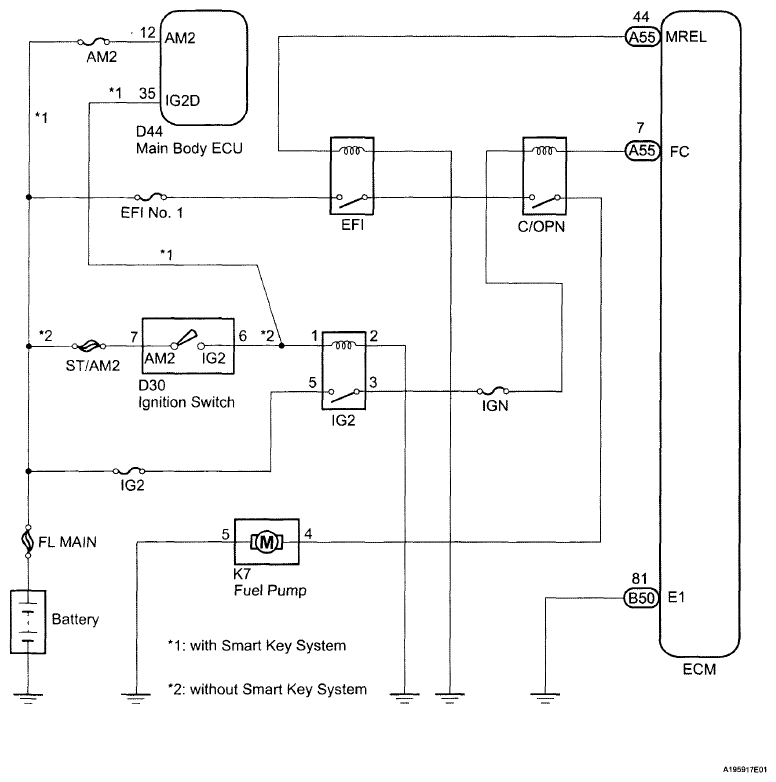

Fig 1: Fuel Pump - Wiring Diagram
G06227211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
