Engine Unit: Components

WARNING: This page is about a different car, the 2008 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

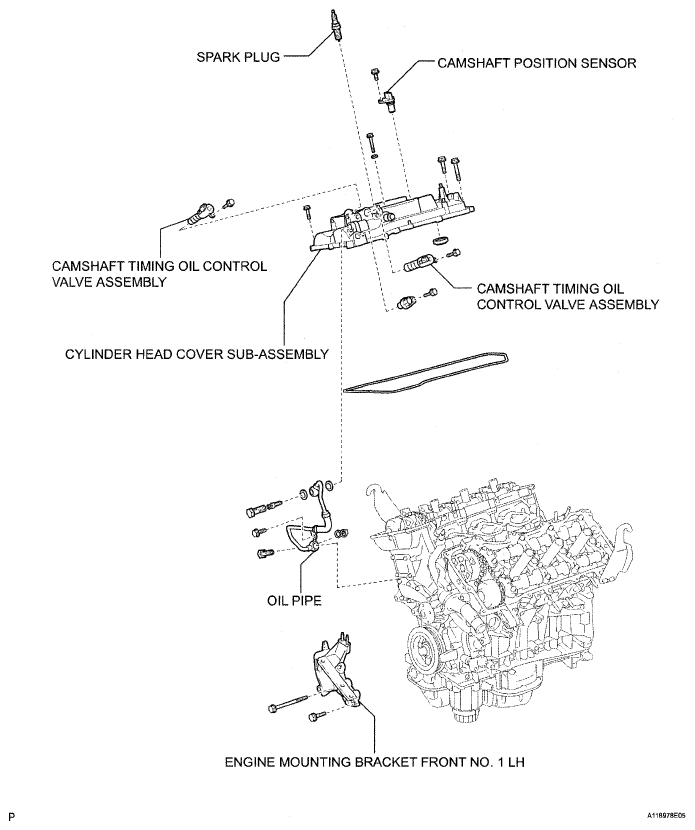

Fig 1: Engine Unit Exploded View With Torque Specifications (1 Of 10)

G04996669

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

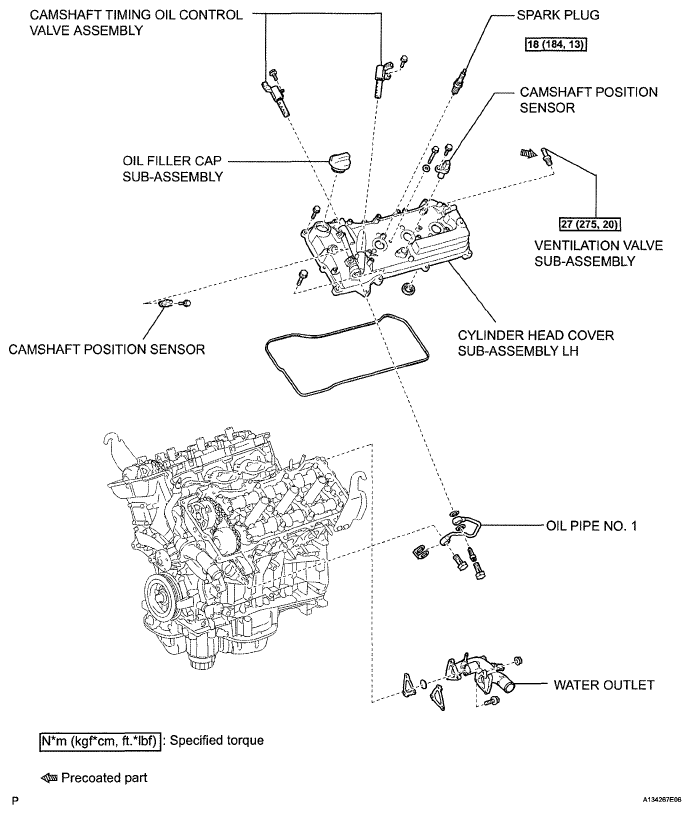

Fig 2: Engine Unit Exploded View With Torque Specifications (2 Of 10)

G05404947

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

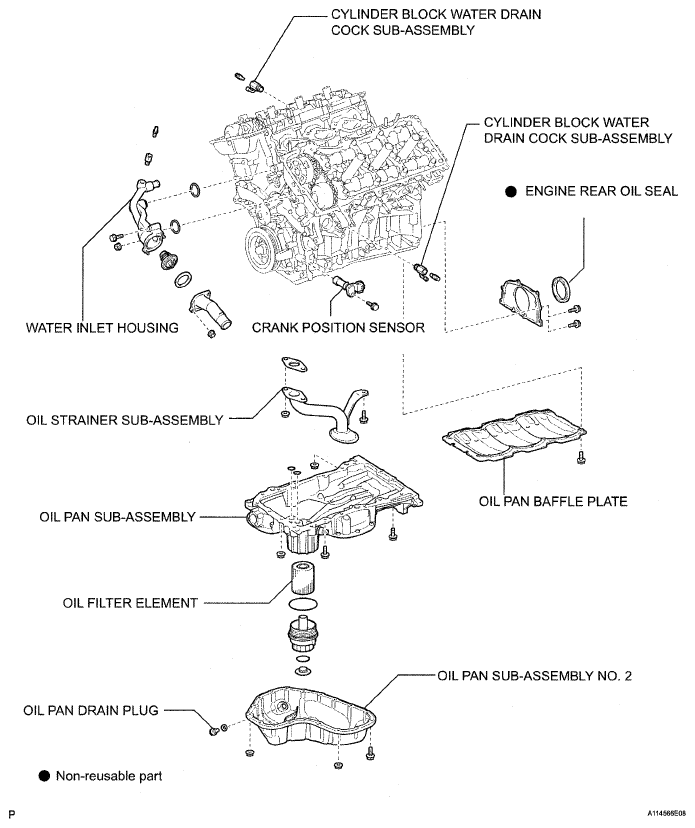

Fig 3: Engine Unit Exploded View With Torque Specifications (3 Of 10)

G04996671

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

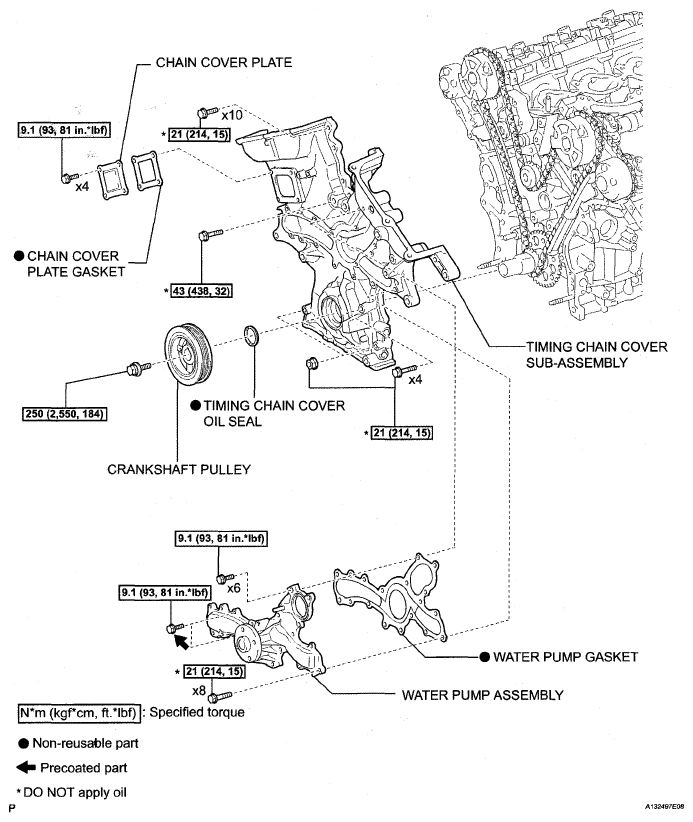

Fig 4: Engine Unit Exploded View With Torque Specifications (4 Of 10)

G04996672

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

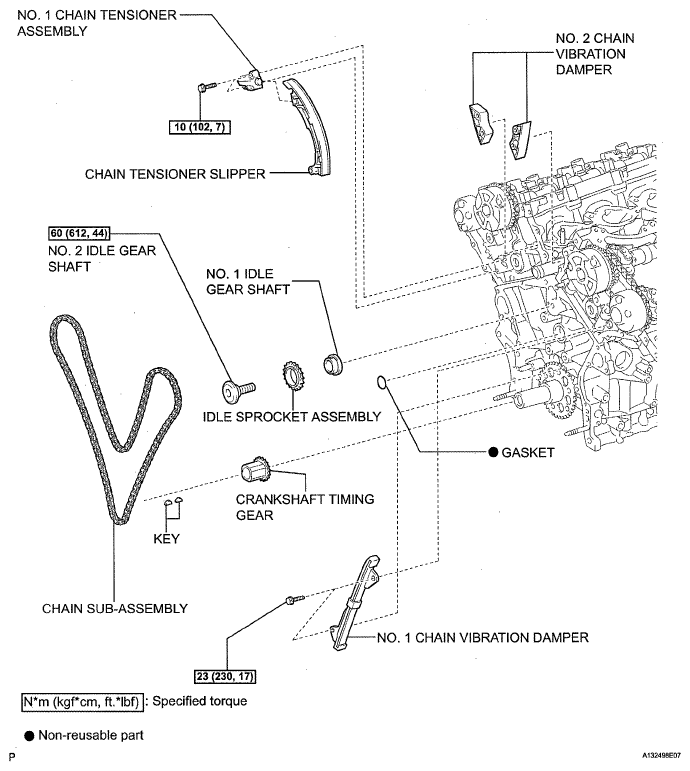

Fig 5: Engine Unit Exploded View With Torque Specifications (5 Of 10)

G05404950

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

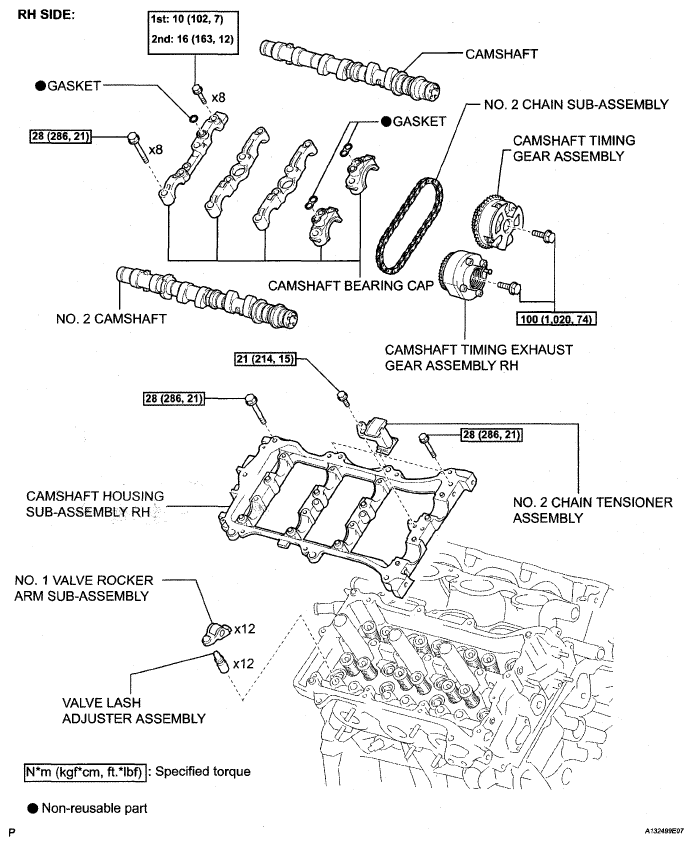

Fig 6: Engine Unit Exploded View With Torque Specifications (6 Of 10)

G04996674

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

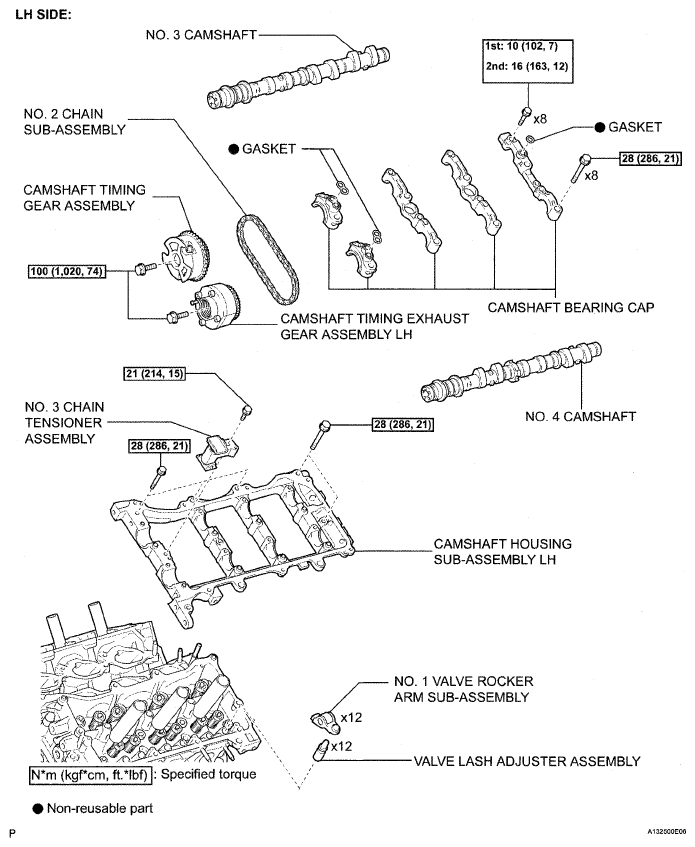

Fig 7: Engine Unit Exploded View With Torque Specifications (7 Of 10)

G04996675

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

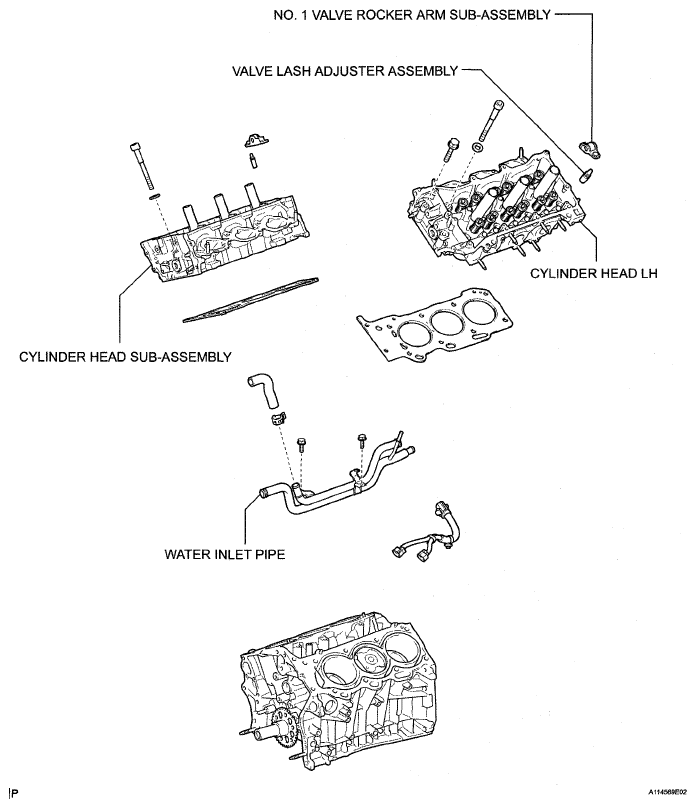

Fig 8: Engine Unit Exploded View With Torque Specifications (8 Of 10)

G04996676

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

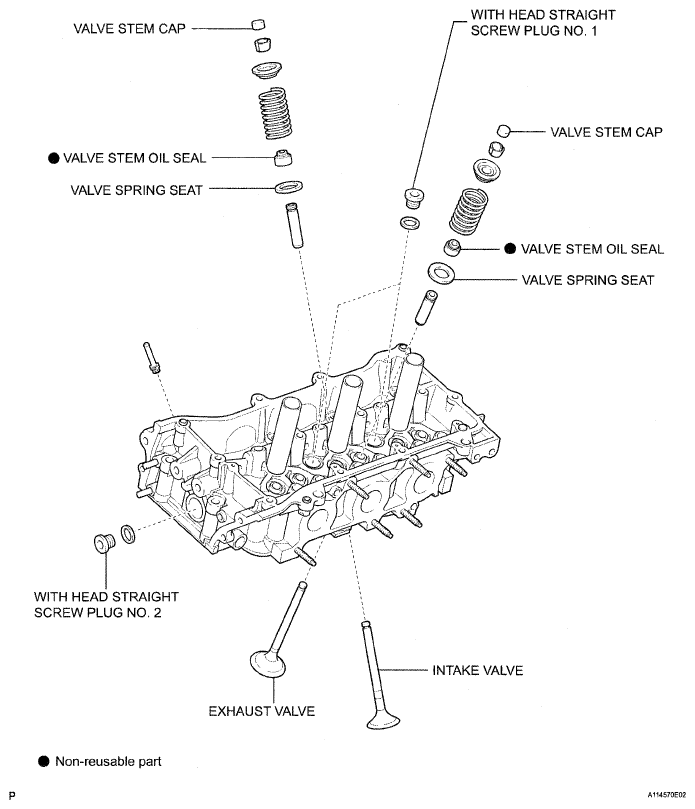

Fig 9: Engine Unit Exploded View With Torque Specifications (9 Of 10)

G04996677

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

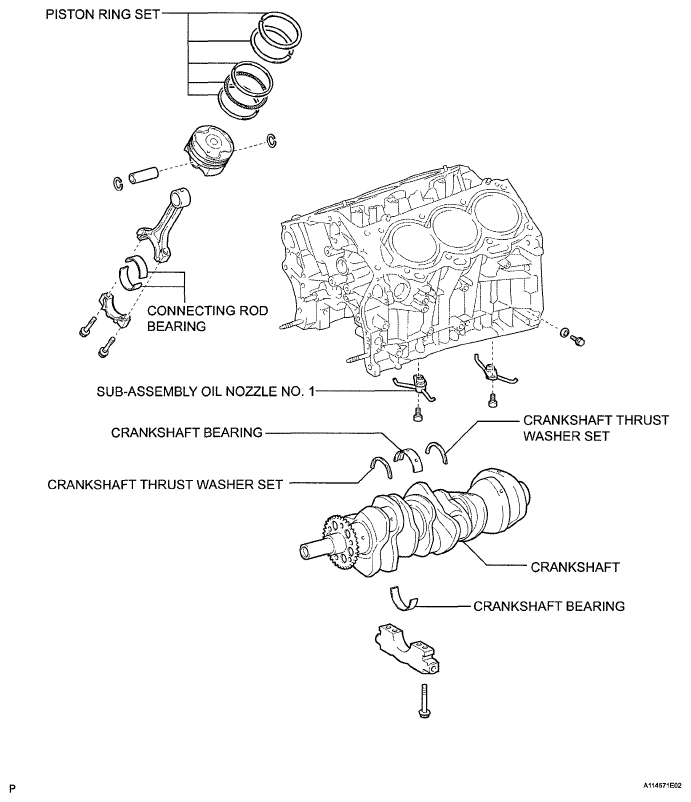

Fig 10: Engine Unit Exploded View With Torque Specifications (10 Of 10)

G05404955

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
