Laser Sensor: Components

WARNING: This page is about a different car, the 2008 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

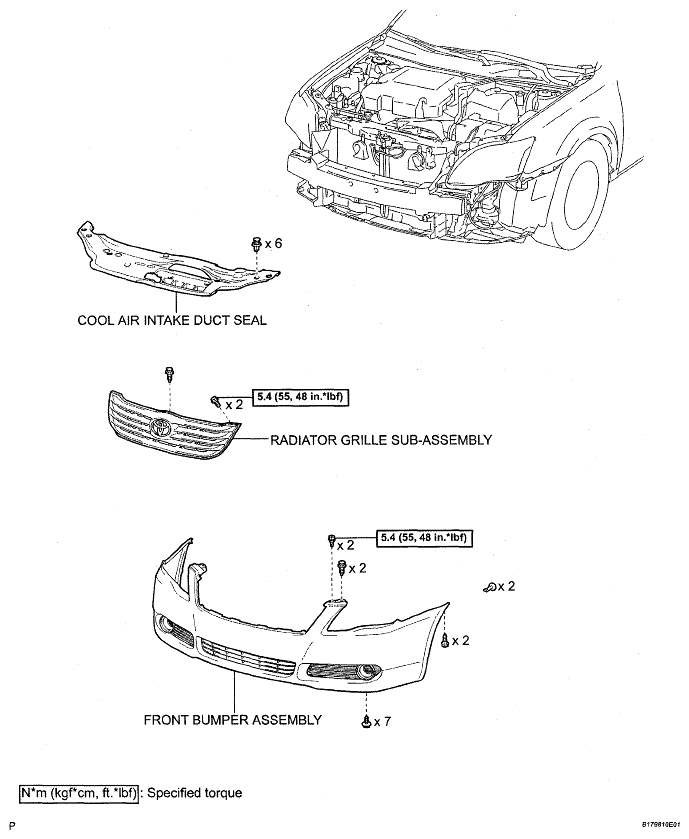

Fig 1: Laser Sensor Replacement Components With Torque Specifications (1 Of 2)
