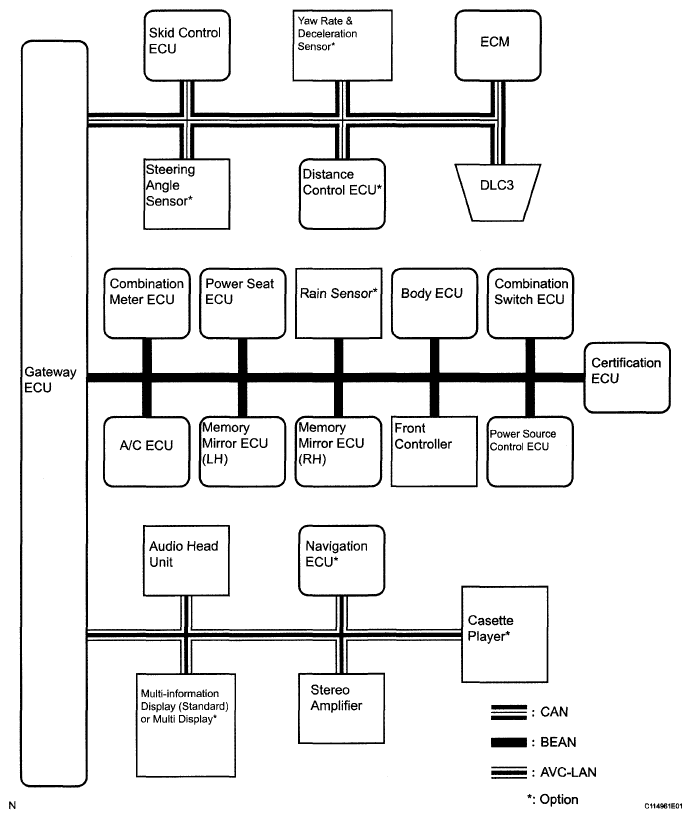

System Diagram
WARNING: This page is about a different car, the 2008 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
ITEM DETAILS
| Item | Details |
|---|---|
| Number of BEAN connected ECUs*1 | 12 |
| Number of CAN connected ECUs*1 | 7 |
| Number of AVC-LAN connected ECUs*1 | 6 |
| Gateway function between BEAN and diagnosis | Gateway ECU |
| Gateway function between BEAN and AVC-LAN | Gateway ECU |
| Gateway function between BEAN and CAN | Gateway ECU |
| ECU in charge of vehicle customization information | Gateway ECU |
| Protocol | CAN, BEAN and AVC-LAN |
| HINT: *1: Optional ECUs are also included. |
|
