Headlight Assembly: Reassembly

WARNING: This page is about a different car, the 2008 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL HEADLIGHT SOCKET AND WIRE
1. Engage the grommet.
2. Engage the 2 clamps and install the headlight socket and wire.
INSTALL HEADLIGHT GASKET (for HID Headlight)
1. Install a new headlight gasket.
INSTALL LIGHT CONTROL ECU SUB-ASSEMBLY (for HID Headlight)

Fig 1: Installing Headlight Socket And Wire
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Connect the connector.
2. Install the light control ECU sub-assembly with the 4 screws.
INSTALL HEADLIGHT LEVELING MOTOR BASE PACKING (for HID Headlight)
1. Install a new headlight leveling motor base packing.

  Fig 2: Locating Light Control ECU Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL HEADLIGHT LEVELING MOTOR
1. Engage the tip of the headlight leveling motor with the reflector.

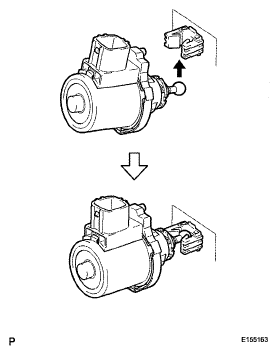

  Fig 3: Engaging Tip Of Headlight Leveling Motor With Reflector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Turn the headlight leveling motor and install it as shown in the illustration.
INSTALL CLEARANCE LIGHT BULB
1. Install the clearance light bulb to the clearance light socket.

  Fig 4: Installing Headlight Leveling Motor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Turn the clearance light bulb and clearance light socket in the direction indicated by the arrow and install them as a unit.
INSTALL FRONT TURN SIGNAL LIGHT BULB
1. Install the front turn signal light bulb to the front turn signal light socket.

  Fig 5: Installing Clearance Light Bulb
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Turn the front turn signal light bulb and front turn signal light socket in the direction indicated by the arrow and install them as a unit.

  Fig 6: Installing Front Turn Signal Light Bulb
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 HEADLIGHT BULB (for Halogen Headlight)
1. Install the No. 2 headlight bulb as shown in the illustration.

  Fig 7: Installing No 2 Headlight Bulb (For Halogen Headlight)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 HEADLIGHT BULB (for HID Headlight)
1. Install the No. 2 headlight bulb as shown in the illustration.
2. Connect the connector.

  Fig 8: Installing No 2 Headlight Bulb (For HID Headlight)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the headlight socket cover as shown in the illustration.

  Fig 9: Installing Headlight Socket Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 HEADLIGHT BULB (for Halogen Headlight)
1. Install the No. 1 headlight bulb as shown in the illustration.

  Fig 10: Installing No 1 Headlight Bulb (For Halogen Headlight)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL DISCHARGE HEADLIGHT BULB (for HID Headlight)
1. Lock the set spring to install the discharge headlight bulb as shown in the illustration.

  Fig 11: Installing Discharge Headlight Bulb (For HID Headlight)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Turn the light control ECU socket in the direction indicated by the arrow to connect it.

  Fig 12: Turning Light Control ECU Socket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the headlight socket cover as shown in the illustration.

  Fig 13: Installing Headlight Socket Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL HEADLIGHT BRACKET
1. Engage the 2 claws and install the headlight bracket.
