High Mounted Stop Light Assembly: Components

WARNING: This page is about a different car, the 2008 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

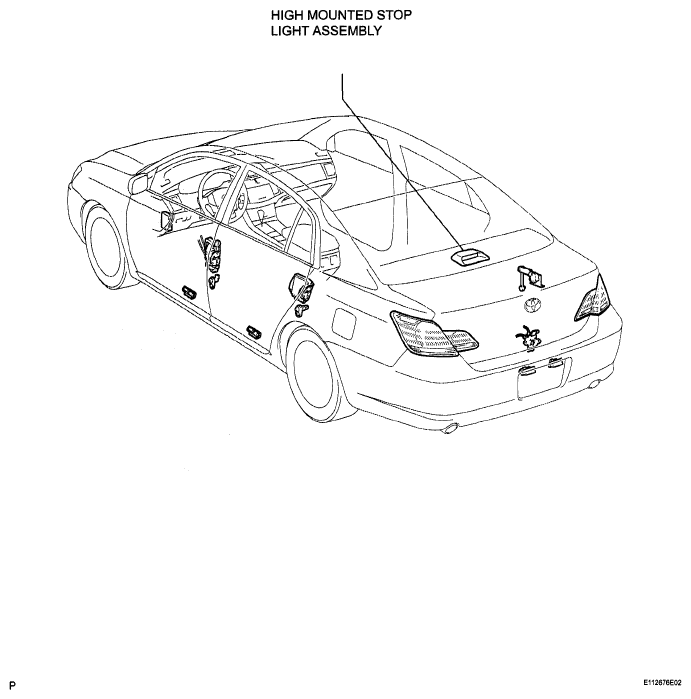

Fig 1: Identifying High Mounted Stop Light Assembly Components (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

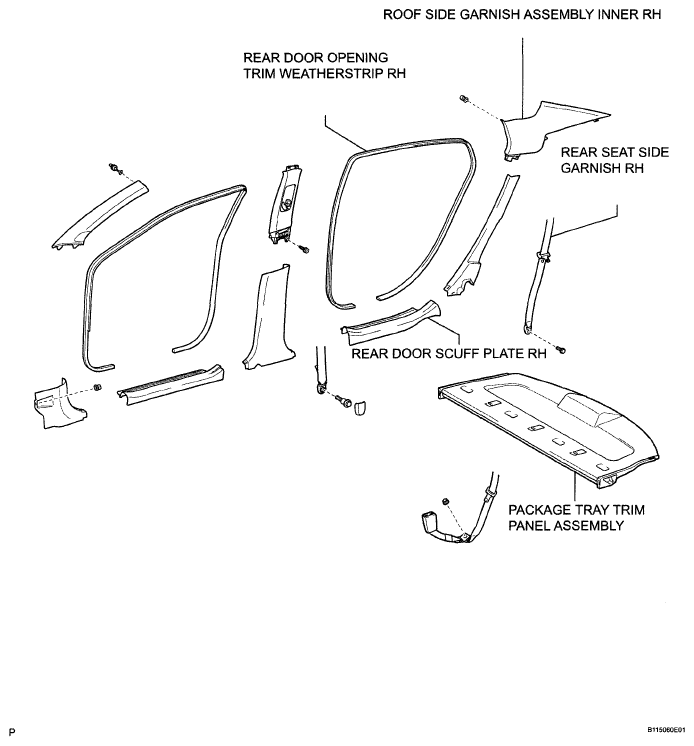

Fig 2: Identifying High Mounted Stop Light Assembly Components (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying High Mounted Stop Light Assembly Components (3 Of 4)

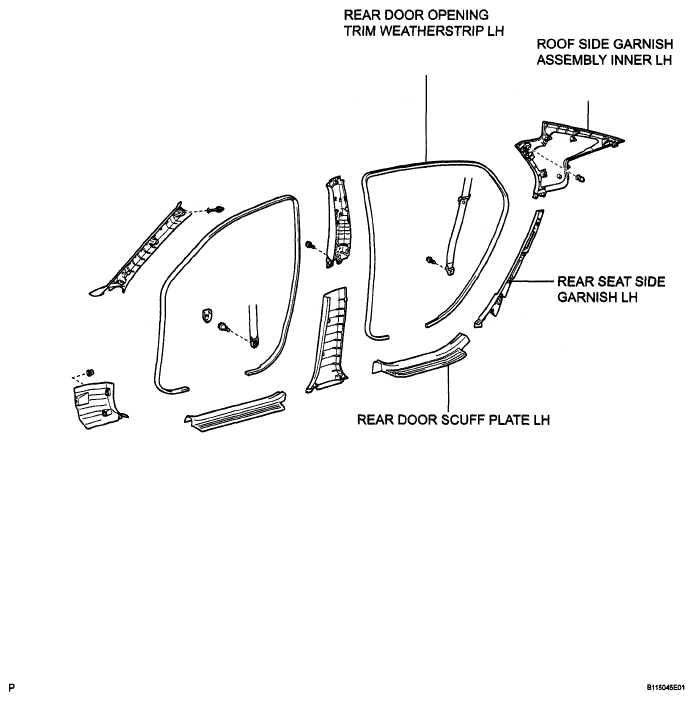

Fig 4: Identifying High Mounted Stop Light Assembly Components (4 Of 4)
