Customize Parameters

WARNING: This page is about a different car, the 2008 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

The following items are possible to customize.

NOTE:

After confirming whether the items of the customer's request is applicable or not for the customized items, perform the customize operation.
Be sure to record the current value before customizing.
In case of performing the troubleshooting, pay attention as there is a possibility that a function is OFF by customizing. (Example: In case of the symptom in which "The wireless operation does not function", check that the wireless operation is not OFF by customizing, then perform the troubleshooting.)

Illuminated Entry:

CUSTOMIZE PARAMETERS - ILLUMINATED ENTRY

Display	Default	Contents	Setting
I/L when ACC OFF	ON	Function to turn on the interior light* and ignition key cylinder light when the ignition switch is turned from on (ACC) to off. *: Interior light comes on when the interior light switch is in the DOOR position.	ON / OFF
Illumination System	ON	Function to turn on the center console light when one of the following occurs; the ignition turned on (IG), door unlock or door open.	ON / OFF
Lighting Time	15 s	To change the lighting time after closing the door. (It will quickly fade out in case of turning the ignition on (IG).)	7.5 s / 15 s / 30 s
I/L ON W/Unlock	ON	Function to turn on the interior light* and ignition key cylinder light when the doors are unlocked. *: Interior light comes on when the interior light switch is in the DOOR position.	ON / OFF

Light Control:

CUSTOMIZE PARAMETERS - LIGHT CONTROL

Display	Default	Contents	Setting
Sensitivity	NORMAL	Adjusts the sensitivity of the automatic light control system.	LIGHT2 / LIGHT1 / NORMAL / DARK1 / DARK2
Control Type	Current	To change the control logic when the light control switch is in the AUTO position. Refer to the LIGHTING REFERENCE .	CURRENT / OLD
Light Auto OFF Delay	30 s	Keeps the headlights on for a certain period of time after turning the ignition switch off and closing all the doors with the headlights on.	OFF / 30 s / 60 s / 90 s
Disp Ex ON Sen	NORMAL	To dim the lights such as the indicator light of the combination meter, A/C indicator light, and clock. Refer to Fig 1.	LIGHT2 / LIGHT1 / NORMAL / DARK1 / DARK2
Disp Ex OFF Sen	NORMAL	To cancel to dim the lights such as the indicator light of the combination meter, A/C indicator light, and clock. Refer to Fig 1*illustration 3.	LIGHT2 / LIGHT1 / NORMAL / DARK1 / DARK2
DRL Function	ON	ON / OFF of the DRL function	ON / OFF

HINT:

Sensitivity adjustment is dependent on the owner's preference. Actual driving by the owner is required.

Table 1

LIGHTING REFERENCE

Brightness of the surrounding when lighting

Lighting delay

Delay of turning light off

⁽²⁾

OLD

Old logic

6 sec.

3 sec.

CURRENT

New logic⁽¹⁾ ('97/8)

15 sec.

⁽¹⁾	The new system has the ability to light up two times brighter than the old system.

⁽²⁾	Delay time until the headlight is turned on when the outside suddenly gets dark.

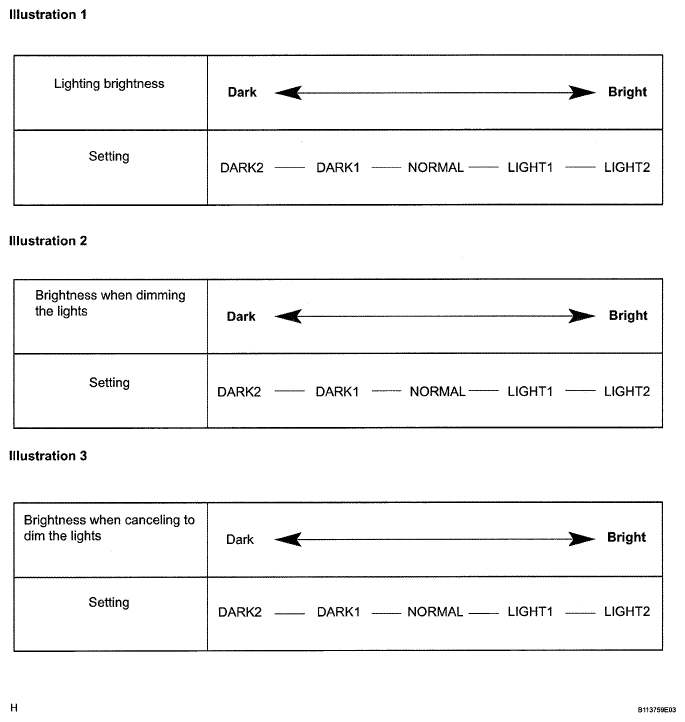

Fig 1: Headlight Brightness And Setting Reference Chart
