System Diagram

WARNING: This page is about a different car, the 2008 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

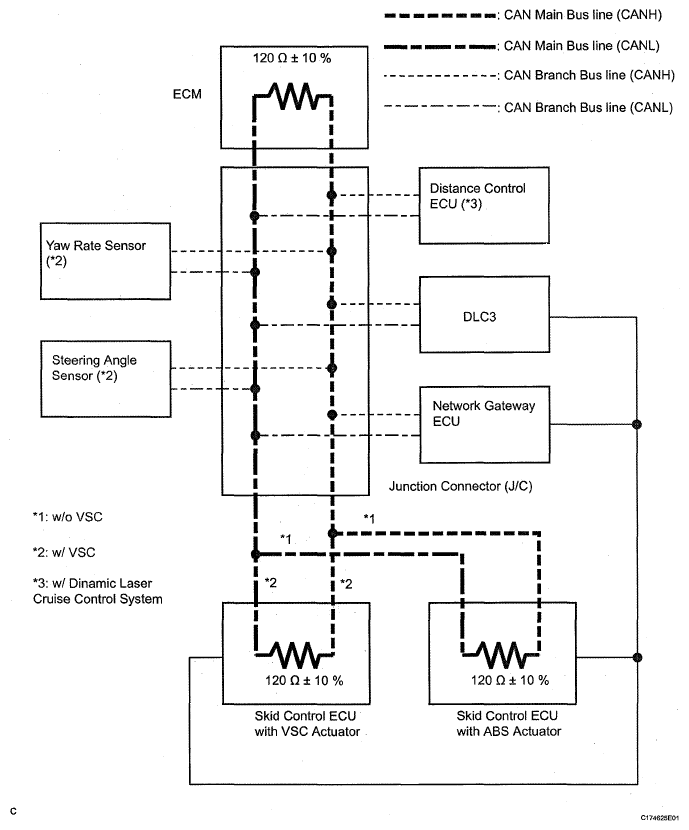

Fig 1: CAN Communication System Diagram
G05408842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

The skid control ECU with actuator detects and stores steering angle sensor and yaw rate sensor DTCs and performs DTC communication by receiving information from the steering angle sensor and yaw rate sensor.
