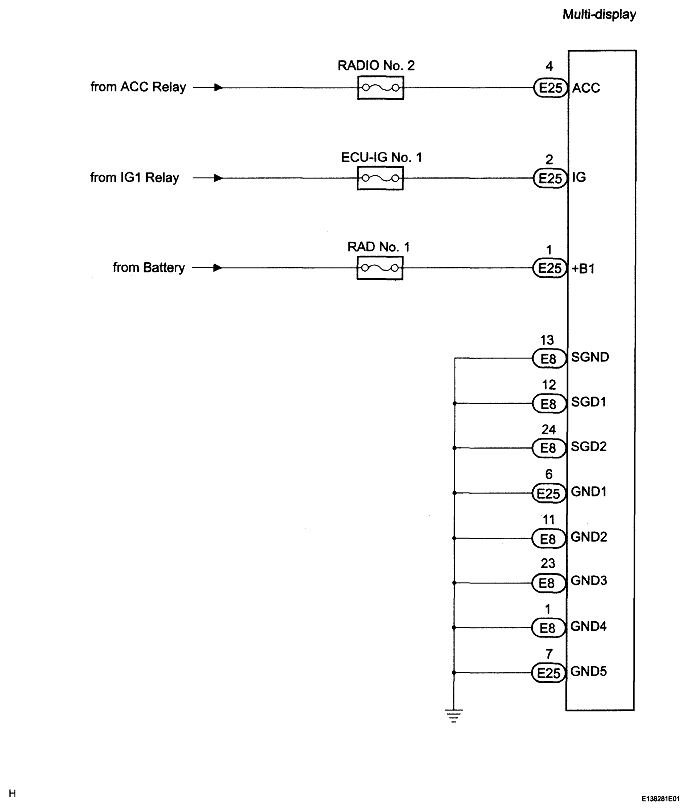

Multi-display Power Source Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2008 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
