Radio Receiver: Components

WARNING: This page is about a different car, the 2008 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

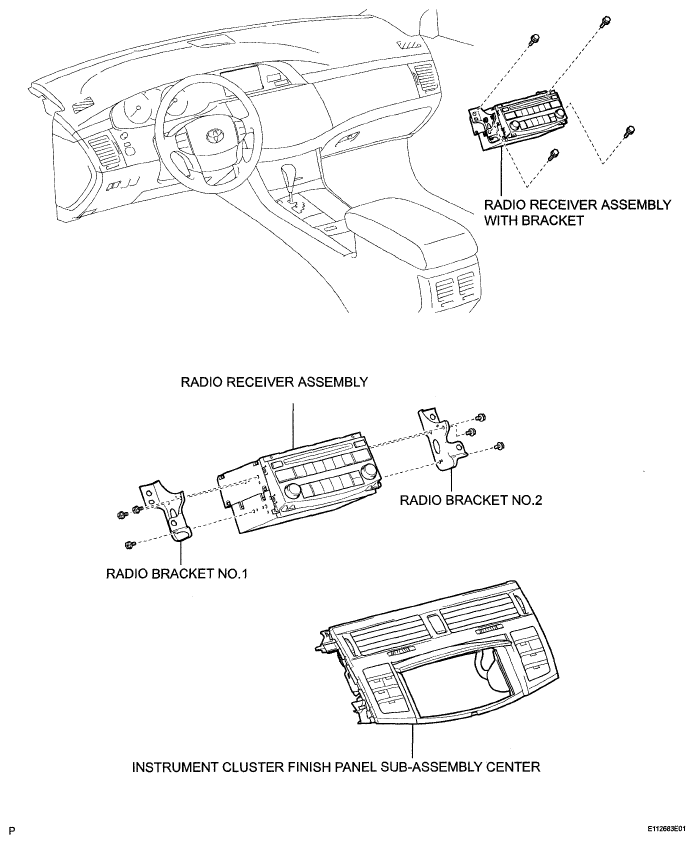

Fig 1: Identifying Radio Receiver Components (1 Of 2)
G05006272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Radio Receiver Components (2 Of 2)
G05006273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
