Power Window Control System
›
System Diagram
System Diagram

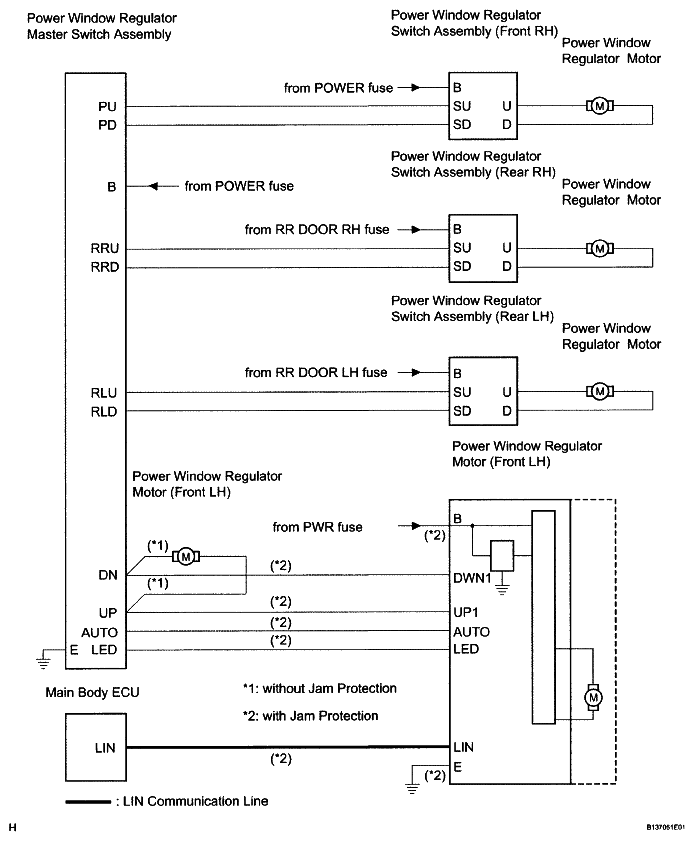

Fig 1: Power Window Regulator Master Switch Assembly - System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
