Engine Immobiliser System without Smart Key System
›
Notes
Engine Immobiliser System without Smart Key System: Notes

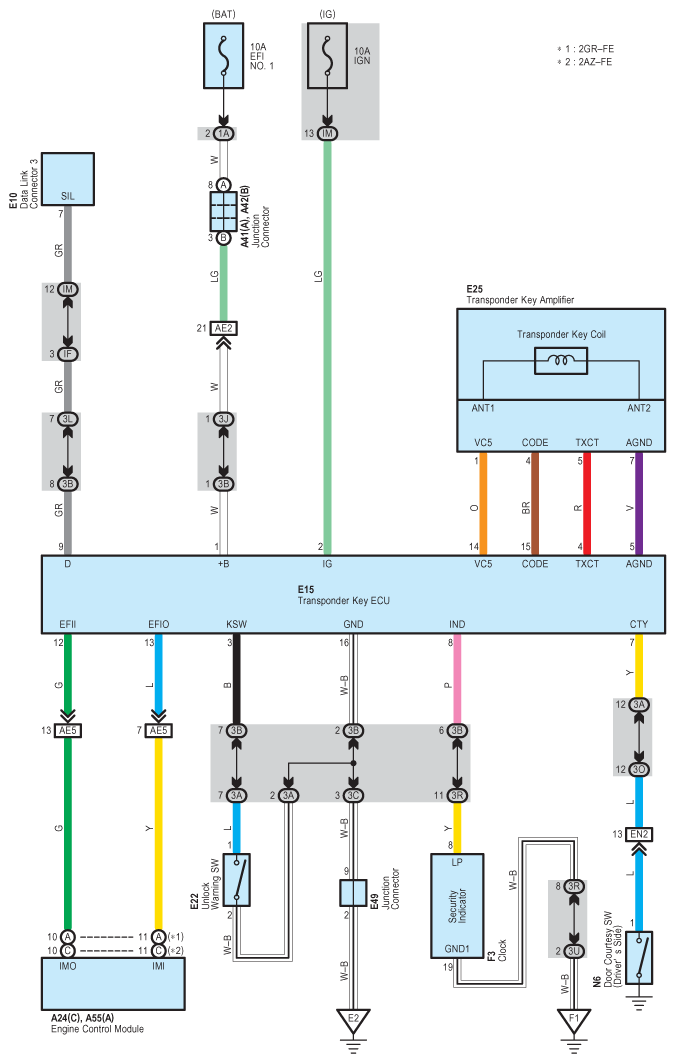

Fig 1: Engine Immobiliser System Without Smart Key System - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
