Back Window Glass: Components

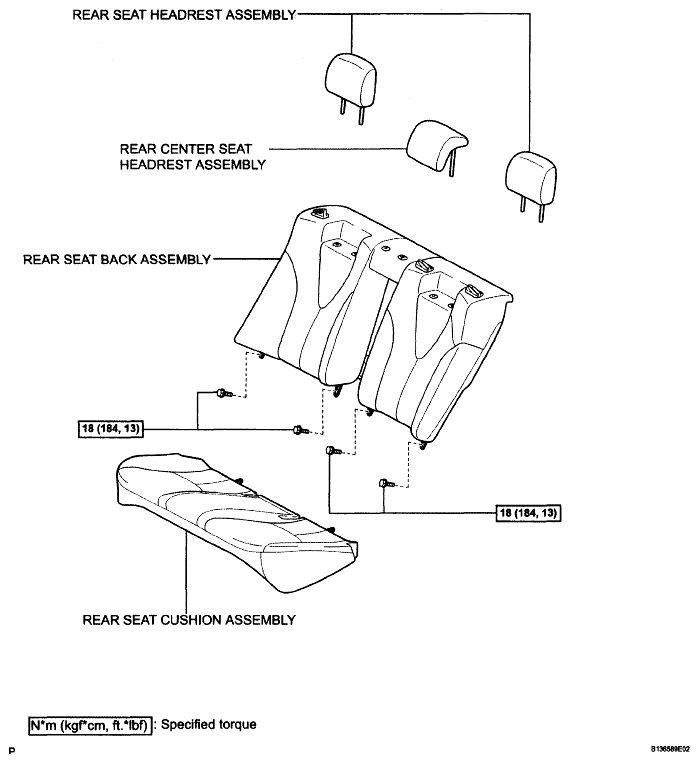

Fig 1: Back Window Glass With Torque Specifications - Fixed Seat Type

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

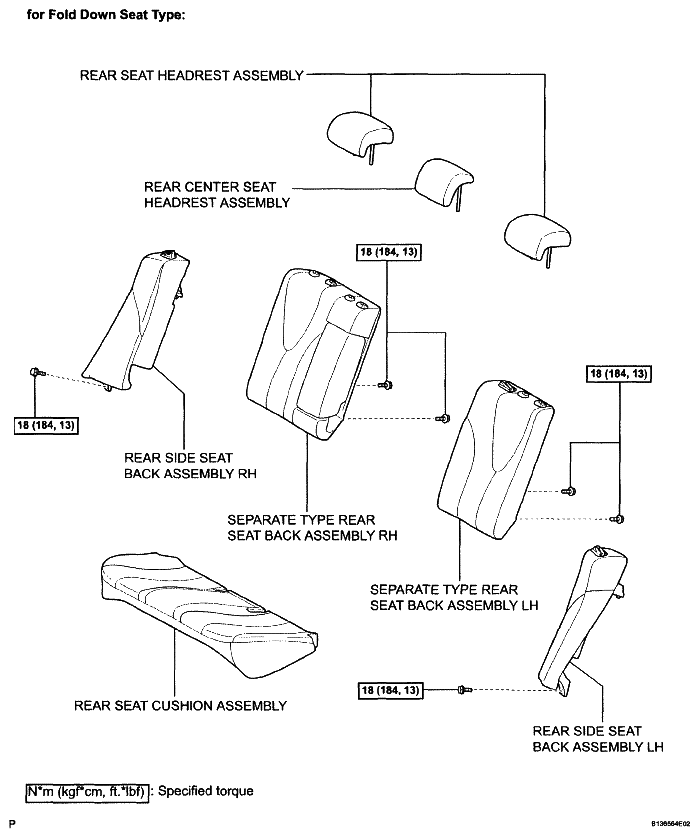

Fig 2: Back Window Glass With Torque Specifications - Fold Down Seat Type

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

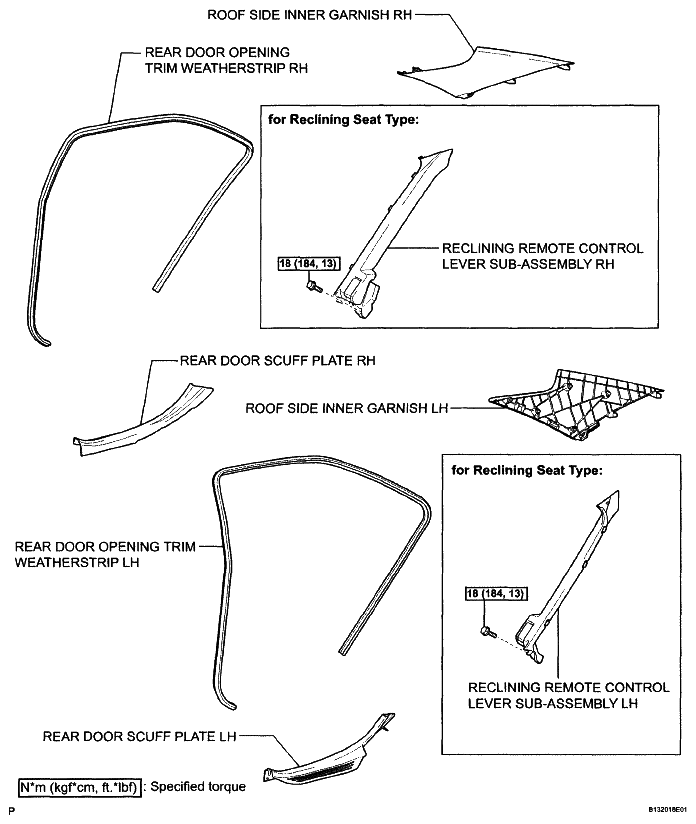

Fig 3: Back Window Glass With Torque Specifications - Reclining Seat Type

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Back Window Glass With Torque Specifications - Reclining Seat Type

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Back Window Glass With Torque Specifications - TMC Made

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Back Window Glass With Torque Specifications - TMMK Made

Fig 7: Identifying Back Window Glass - Sliding Roof

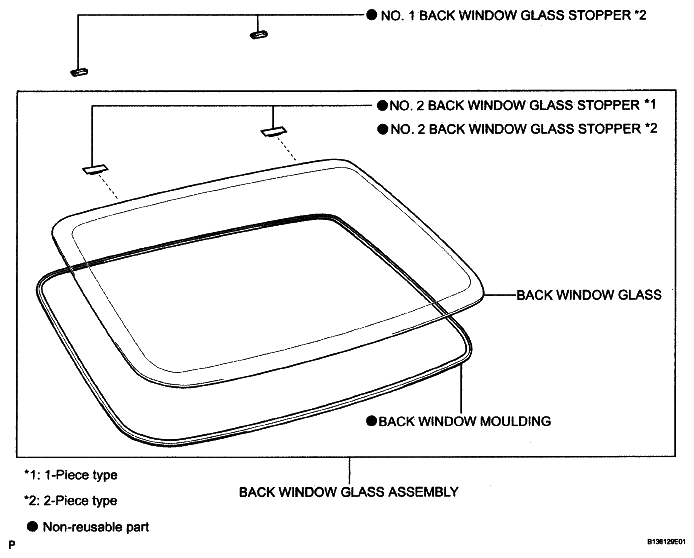

Fig 8: Identifying Back Window Glass
