Home › Toyota › 2009 › Camry Base, Automatic › Repair and Diagnosis › Engine Performance › Engine Control System (2AZ-FE) (Except Hybrid) › Throttle Body › Components

Throttle Body: Components

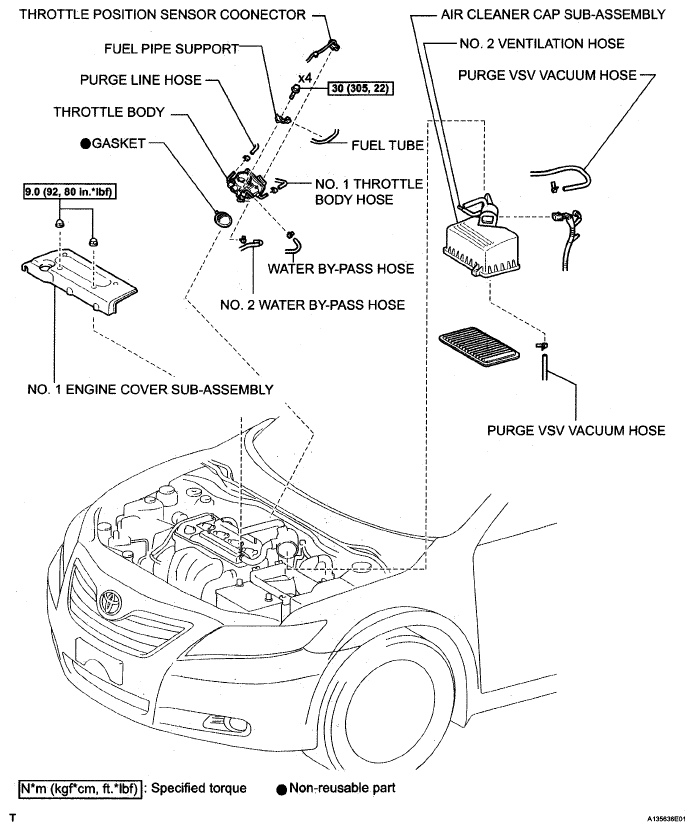

Fig 1: Throttle Body Replacement Components W/Torque Specifications
G04973368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
