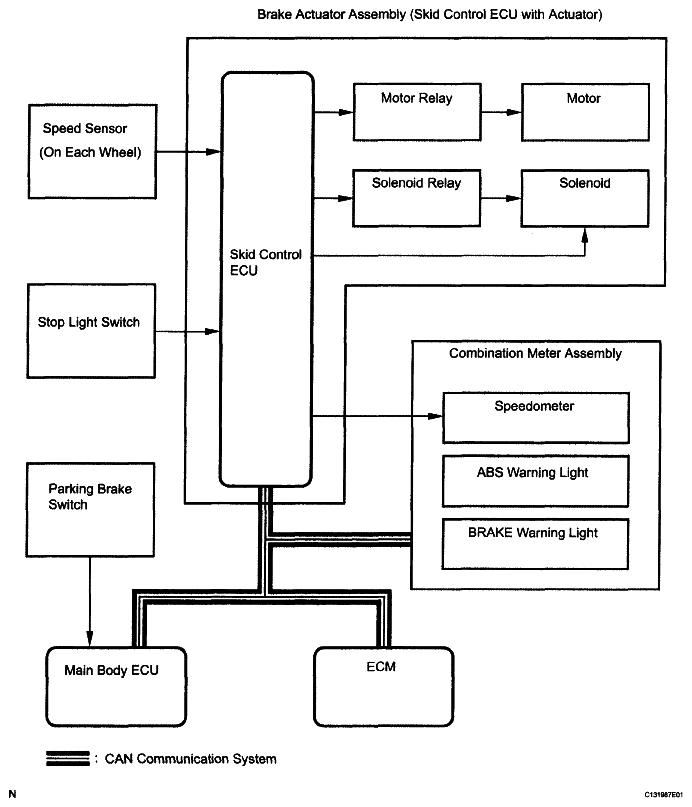

System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002 COMMUNICATION METHOD CHART
| Transmitting ECU |
Receiving ECU |
Signals |
Communication method |
| Skid control ECU |
Combination meter |
- ABS warning light signal
- BRAKE warning light signal
|
CAN communication system |
| ECM |
Skid control ECU |
Shift position signal |
CAN communication system |
