ECM Power Source Circuit: Wiring Diagram

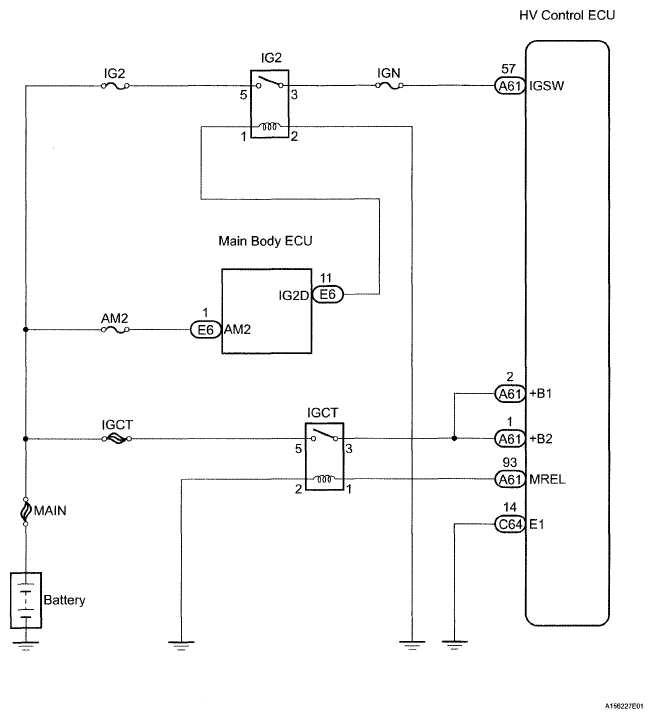

Fig 1: ECM Power Source Wiring Diagram
G05007942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
